High-performance 20 inch LED light bar with versatile beam options.

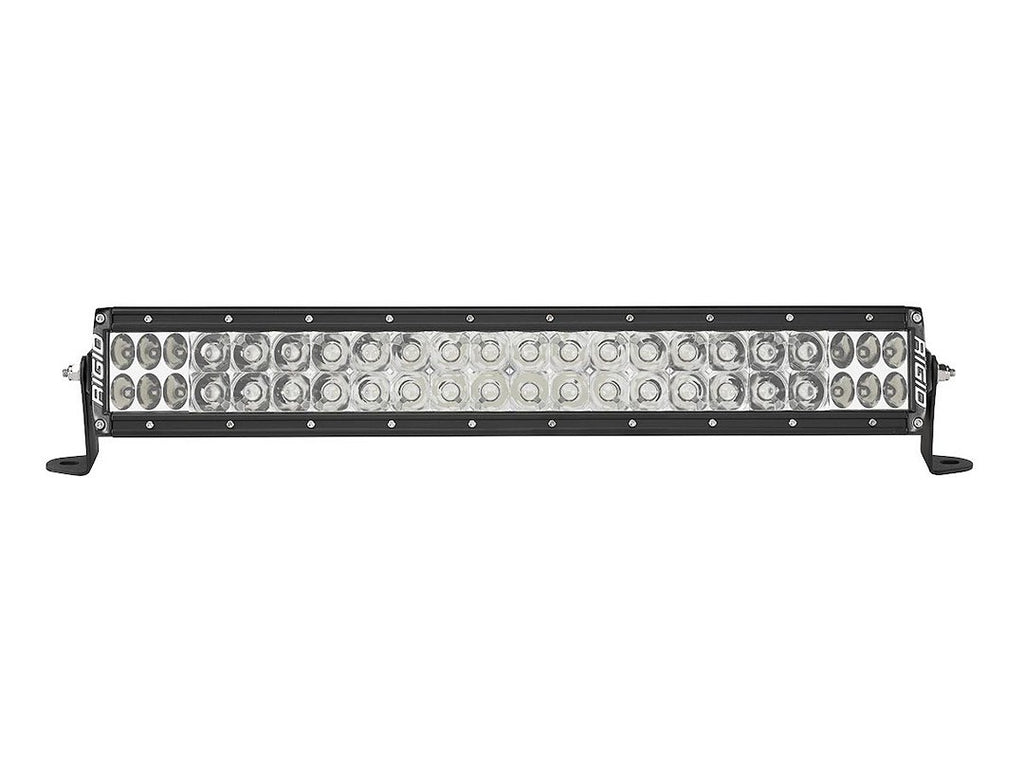

The Rigid Lighting E-Series LED Light Bar is engineered for versatility and high performance, making it suitable for various applications including off-road, power sports, marine, and automotive use. This 20 inch light bar features a combo beam of driving and spot lights, delivering an impressive 34848 raw lumens with a wattage of 319 watts and a 23 amp draw. Constructed with a durable black housing and a clear polycarbonate lens, it is designed to withstand harsh conditions while providing optimal illumination.
Recent enhancements in LED technology have increased the E-Series PRO's output by up to 111 percent, ensuring that it remains one of the brightest and most efficient options available. The light bar is equipped with an integrated thermal management system, reverse polarity protection, and is IP68 rated for dust and water ingress, making it reliable in various environments. Additionally, the E-Series is compliant with SAE J575 standards for shock and vibration, ensuring durability and longevity with a lifespan exceeding 50,000 hours.
Included with the light bar are essential components such as a wiring harness, switch, open leads, and mounting hardware, facilitating a straightforward installation process. The E-Series is designed to operate within a temperature range of -40 to +145 degrees Fahrenheit, making it adaptable to extreme conditions. With its combination of advanced features and robust construction, the Rigid Lighting E-Series LED Light Bar is a dependable choice for those seeking high-quality lighting solutions.
Features
- Durable UV Resistant Powder Coat
- High-Grade Aluminum Alloy
- Impact Resistant Polycarbonate Lens
- Integrated Thermal Management System
- Reverse Polarity Protection
- IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
- Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
- SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
- Waterproof Connector
Specifications
- Manufacturer: Rigid Lighting
- Manufacturer Part Number: 122313
- Bulb Type: LED
- Style: Straight
- Length: 20 Inch
- Beam Type: Combo Beam Driving And Spot
- Number Of Rows: 2
- Light Color: White
- Housing Color: Black
- Smart Technology Compatible: Not Smart Technology Compatible
- Beam Angle (Deg): 22 Degree
- Lumens: 34848 Lumens
- Wattage: 319 Watt

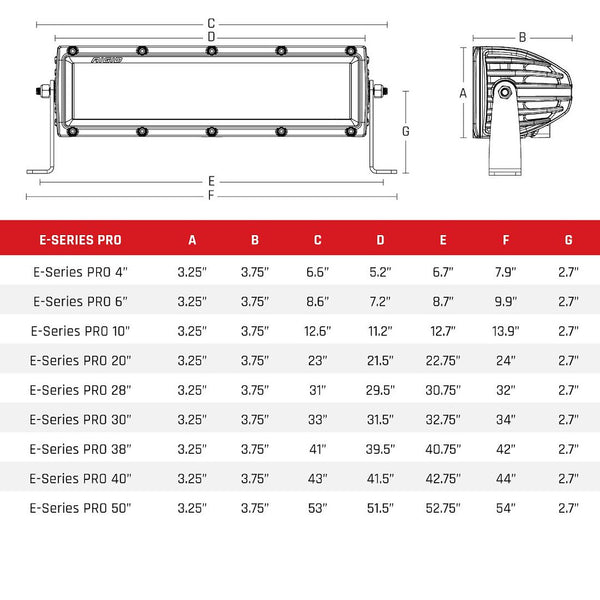

- Width: 3-3/4 Inch
- Height: 3-1/4 Inch
- Voltage Rating: 9 To 36 Volt
- Ampere Rating At 12 Volts: 23 Amp
- Bulb Specifications: 40 Clear LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Length: 24 Inch
- Mounting Style: Surface Mount
- Connection Type: Hard Wired
- Includes: With Wiring Harness/ Switch/ Open Leads/ Mounting Hardware And Pressure Equalizing Vent
- Estimated Install Time (Hours): 1.5
