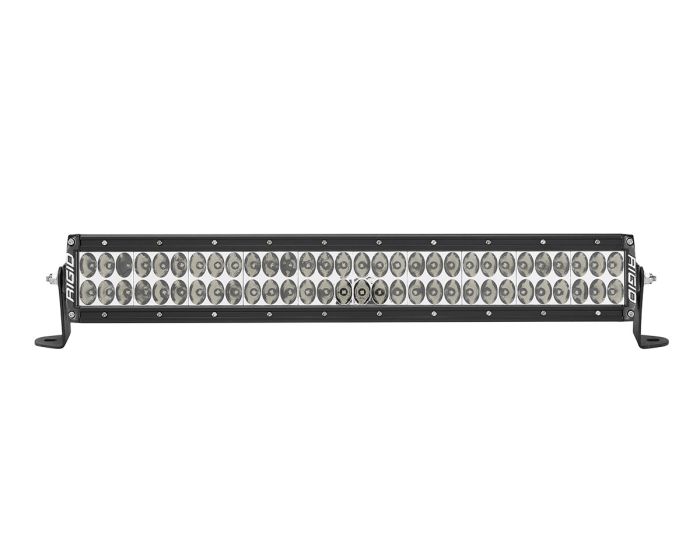

Rigid Lighting E-Series LED Light Bar (MPN: 121613)

High-performance 20 inch LED light bar with advanced features and durability.

The Rigid Lighting E-Series LED Light Bar is engineered for versatility and high performance, making it suitable for various applications including off-road, marine, and automotive use. With a length of 20 inches and a powerful output of 47520 raw lumens, this light bar utilizes advanced LED technology to deliver exceptional brightness and efficiency. The driving beam design ensures optimal visibility, while the durable black housing and impact-resistant polycarbonate lens provide protection against harsh conditions.

This light bar features a robust construction with a UV resistant powder coat and high-grade aluminum alloy, ensuring longevity and resilience. It is equipped with an integrated thermal management system and reverse polarity protection, enhancing its reliability. Rated IP68 for dust and water ingress, the E-Series is built to withstand extreme environments, with an operating temperature range from -40 to +145 degrees Fahrenheit.

The E-Series LED Light Bar includes a complete installation kit with a wiring harness, switch, open leads, and mounting hardware, facilitating a straightforward setup. With a lifespan exceeding 50,000 hours and compliance with SAE J575 for shock and vibration, this light bar is designed for durability and performance. Experience superior lighting solutions with the Rigid Lighting E-Series.

Features

• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• Reverse Polarity Protection
• IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
• Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
• SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
• Waterproof Connector

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 121613
• Bulb Type: LED
• Style: Straight
• Length: 20 Inch
• Beam Type: Driving Beam
• Number Of Rows: 2
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Beam Angle (Deg): 49 Degree
• Lumens: 47520 Lumens
• Wattage: 340 Watt
• Width: 3-3/4 Inch
• Height: 3-1/4 Inch
• Voltage Rating: 9 To 36 Volt
• Ampere Rating At 12 Volts: 24.3 Amp
• Bulb Specifications: 60 Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Length: 24 Inch
• Mounting Style: Surface Mount
• Connection Type: Hard Wired
• Includes: With Wiring Harness/ Switch/ Open Leads/ Mounting Hardware And Pressure Equalizing Vent
• Estimated Install Time (Hours): 1.5

Technical Documents

• 11-13836-A_-_E_SR-Series_PRO.pdf
