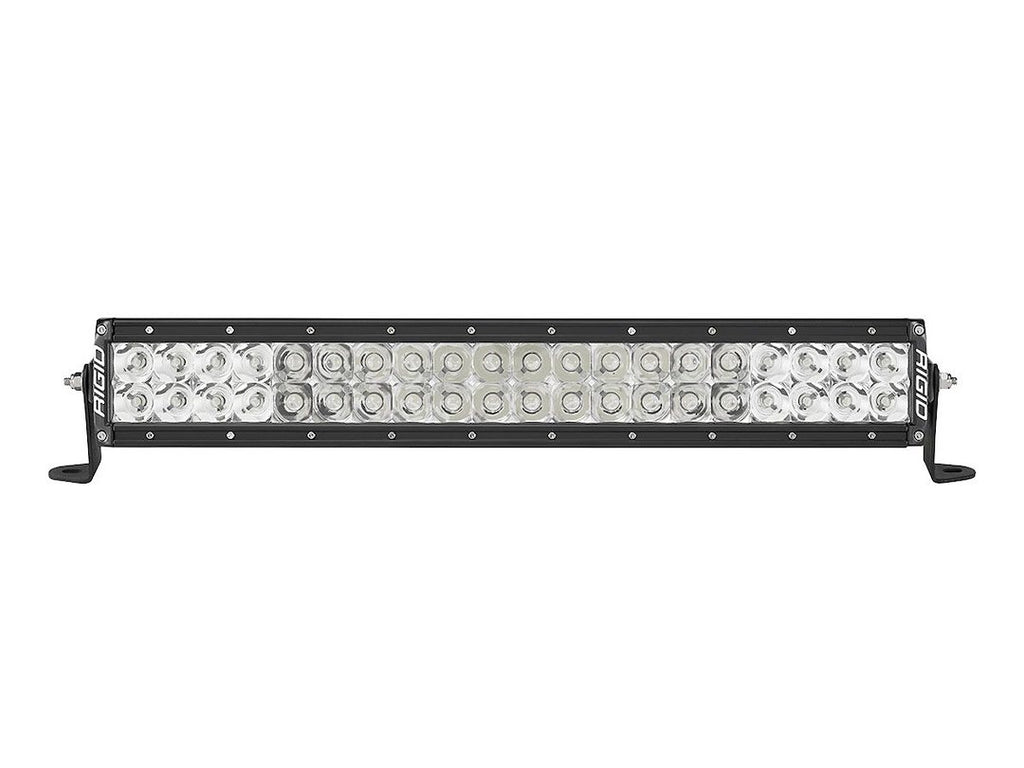

Rigid Lighting E-Series LED Light Bar (MPN: 120313)

High-performance 20 inch LED light bar with versatile beam options.

The Rigid Lighting E-Series LED Light Bar is engineered to deliver exceptional illumination with a length of 20 inches and a powerful output of 25080 raw lumens. This light bar features a combination beam pattern, integrating both spot and flood capabilities, making it suitable for a variety of applications including off-road, marine, and automotive use. Constructed with a durable black housing and a clear polycarbonate lens, the E-Series is designed to withstand harsh conditions while providing reliable performance.

Recent advancements in LED technology have enhanced the E-Series, offering up to 111 percent more raw lumens compared to previous models. The light bar is equipped with an integrated thermal management system and reverse polarity protection, ensuring longevity and safety during operation. With an IP68 rating for dust and water ingress, the E-Series is built to perform in extreme environments, making it a dependable choice for both recreational and professional users.

Installation is straightforward with the included universal mounting brackets, hardware, and plug-and-play wiring harness. The E-Series is compliant with SAE J575 standards for shock and vibration, and it boasts a lifespan of over 50,000 hours. Whether for nighttime adventures or emergency response, the Rigid Lighting E-Series LED Light Bar provides the brightness and durability needed to own the night.

Features

• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• Reverse Polarity Protection
• IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
• Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
• SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
• Waterproof Connector

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 120313
• Bulb Type: LED
• Style: Straight
• Length: 20 Inch
• Beam Type: Combo Beam Flood And Spot
• Number Of Rows: 2
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Beam Angle (Deg): 19 Degree
• Lumens: 25080 Lumens
• Wattage: 214 Watt
• Width: 3-3/4 Inch
• Height: 3-1/4 Inch
• Voltage Rating: 9 To 36 Volt
• Ampere Rating At 12 Volts: 15 Amp
• Bulb Specifications: 40 Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Length: 24 Inch
• Mounting Style: Surface Mount
• Connection Type: Plug And Play Wiring Harness
• Includes: With Universal Mounting Brackets/ Hardware/ Wiring Harness/ Deutsch Connector/ Switch
• Estimated Install Time (Hours): 1.5

Technical Documents

• 11-13836-A_-_E_SR-Series_PRO.pdf
