High-performance 20 inch LED light bar with versatile beam options.

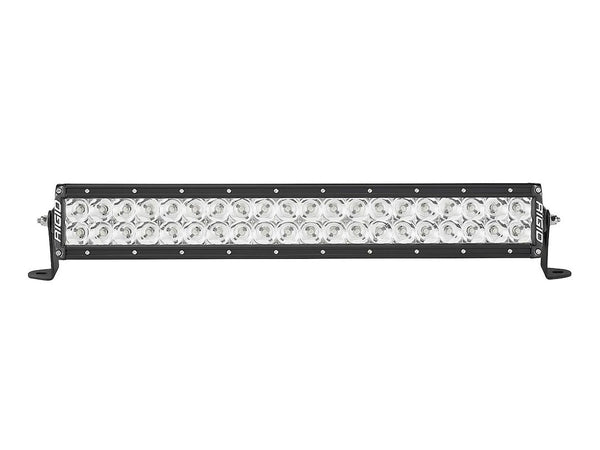

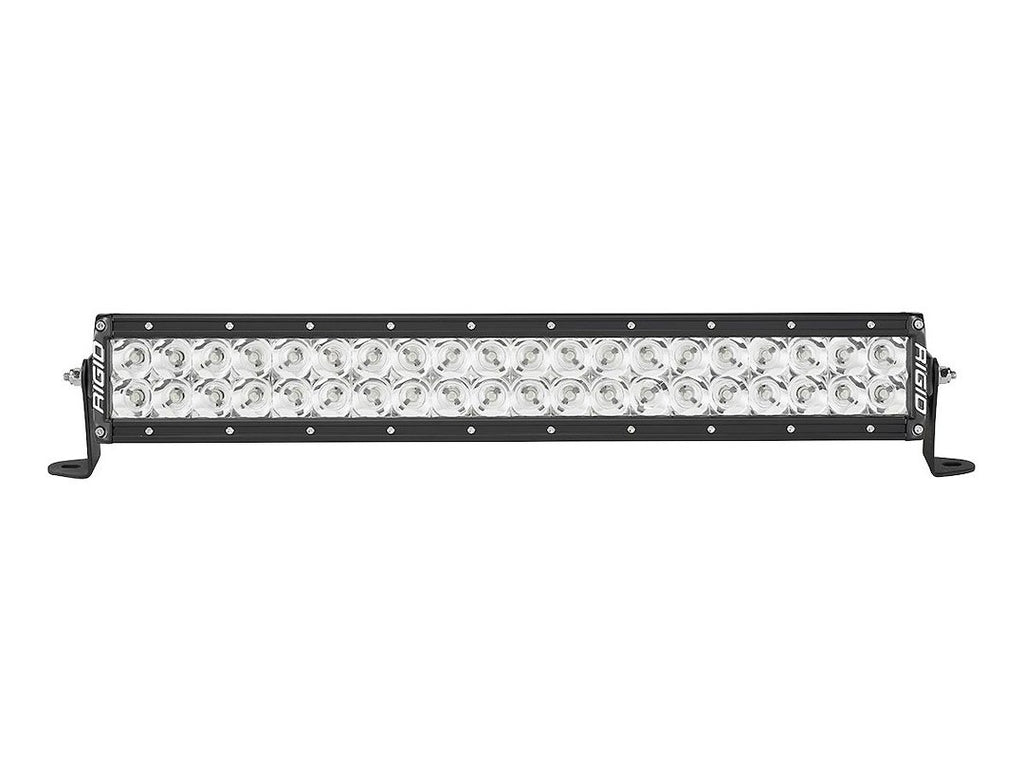

The Rigid Lighting E-Series LED Light Bar is a robust lighting solution designed for various applications including off-road, power sports, marine, and automotive use. Measuring 20 inches in length, this light bar features 40 clear LED bulbs that produce an impressive 25080 raw lumens, ensuring maximum visibility in low-light conditions. The flood beam design provides a wide spread of light, making it suitable for illuminating large areas effectively.
Constructed with a durable black aluminum housing and an impact-resistant polycarbonate lens, the E-Series is built to withstand harsh environments. It is IP68 rated for dust and water ingress, ensuring reliable performance even in challenging weather conditions. The integrated thermal management system and reverse polarity protection enhance the longevity and safety of the light bar, which boasts a lifespan of over 50000 hours.
The E-Series also includes universal mounting brackets and hardware, making installation straightforward. With a voltage rating of 9 to 36 volts and a 15 amp draw at 12 volts, this light bar is compatible with a wide range of vehicles. The pressure equalizing vent allows for optimal performance across a temperature range of -40 to +145 degrees Fahrenheit, making it a versatile choice for any lighting need.
Features
- Durable UV Resistant Powder Coat
- High-Grade Aluminum Alloy
- Impact Resistant Polycarbonate Lens
- Integrated Thermal Management System
- Reverse Polarity Protection
- IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
- Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
- SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
- Waterproof Connector
Specifications
- Manufacturer: Rigid Lighting
- Manufacturer Part Number: 120113
- Bulb Type: LED
- Style: Straight
- Length: 20 Inch
- Beam Type: Flood Beam
- Number Of Rows: 2
- Light Color: White
- Housing Color: Black
- Smart Technology Compatible: Not Smart Technology Compatible
- Beam Angle (Deg): 50 Degree
- Lumens: 25080 Lumens
- Wattage: 214 Watt
- Width: 3-3/4 Inch
- Height: 3-1/4 Inch
- Voltage Rating: 9 To 36 Volt
- Ampere Rating At 12 Volts: 15.29 Amp
- Bulb Specifications: 40 Clear LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Length: 24 Inch
- Mounting Style: Surface Mount
- Connection Type: Plug And Play Wiring Harness
- Includes: With Universal Mounting Brackets/ Hardware/ Open Leads/ Switch/ Wiring Harness
- Estimated Install Time (Hours): 1.5
Compatibility / Fit
- 2009-2014 Ford F-150
