Versatile 6 Inch LED light bar with superior brightness and durability.

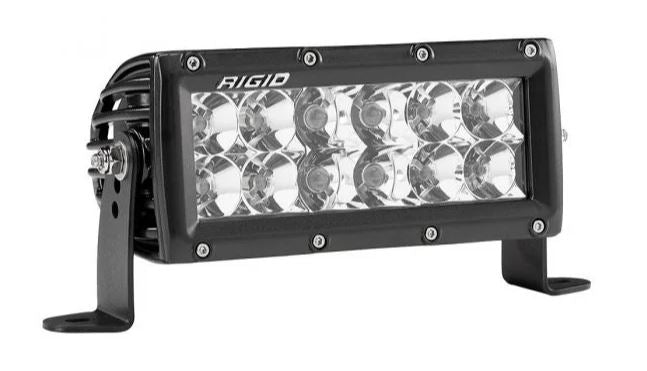

The Rigid Lighting E-Series LED Light Bar is engineered to provide exceptional illumination with a length of 6 inches and a powerful output of 9504 raw lumens. This light bar features a combination beam pattern, integrating both spot and flood capabilities, making it suitable for a variety of applications including off-road, marine, and automotive use. Constructed with a durable black housing and a clear polycarbonate lens, it is designed to withstand harsh conditions while delivering reliable performance.
Recent advancements in LED technology have enhanced the E-Series, offering up to 111 percent more raw lumens compared to previous models. The light bar is built with high-grade aluminum alloy and is coated with a UV resistant powder for added durability. It includes an integrated thermal management system and reverse polarity protection, ensuring longevity and consistent operation in diverse environments.
With an IP68 rating for dust and water ingress, the E-Series is equipped to handle extreme conditions, operating effectively in temperatures ranging from -40 to +145 degrees Fahrenheit. The light bar also features a pressure equalizing vent and is compliant with SAE J575 standards for shock and vibration resistance. This makes the E-Series a reliable choice for those who require high-performance lighting solutions.
Features
- Durable UV Resistant Powder Coat
- High-Grade Aluminum Alloy
- Impact Resistant Polycarbonate Lens
- Integrated Thermal Management System
- Reverse Polarity Protection
- IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
- Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
- SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
- Waterproof Connector
Specifications
- Manufacturer: Rigid Lighting
- Manufacturer Part Number: 106313
- Bulb Type: LED
- Style: Straight
- Length: 6 Inch
- Beam Type: Combo Beam Flood And Spot
- Number Of Rows: 2
- Light Color: White
- Housing Color: Black
- Smart Technology Compatible: Not Smart Technology Compatible
- Beam Angle (Deg): 28.3 Degree
- Lumens: 9504 Lumens
- Wattage: 82 Watt
- Width: 3-3/4 Inch
- Height: 3-1/4 Inch
- Voltage Rating: 9 To 36 Volt
- Ampere Rating At 12 Volts: 5.86 Amp
- Bulb Specifications: 12 Clear LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Length: 9.9 Inch
- Mounting Style: Surface Mount
- Connection Type: Plug And Play Wiring Harness
- Includes: With Universal Mounting Brackets/ Hardware/ Wiring Harness/ Deutsch Connector/ Switch
- Estimated Install Time (Hours): 1.5
