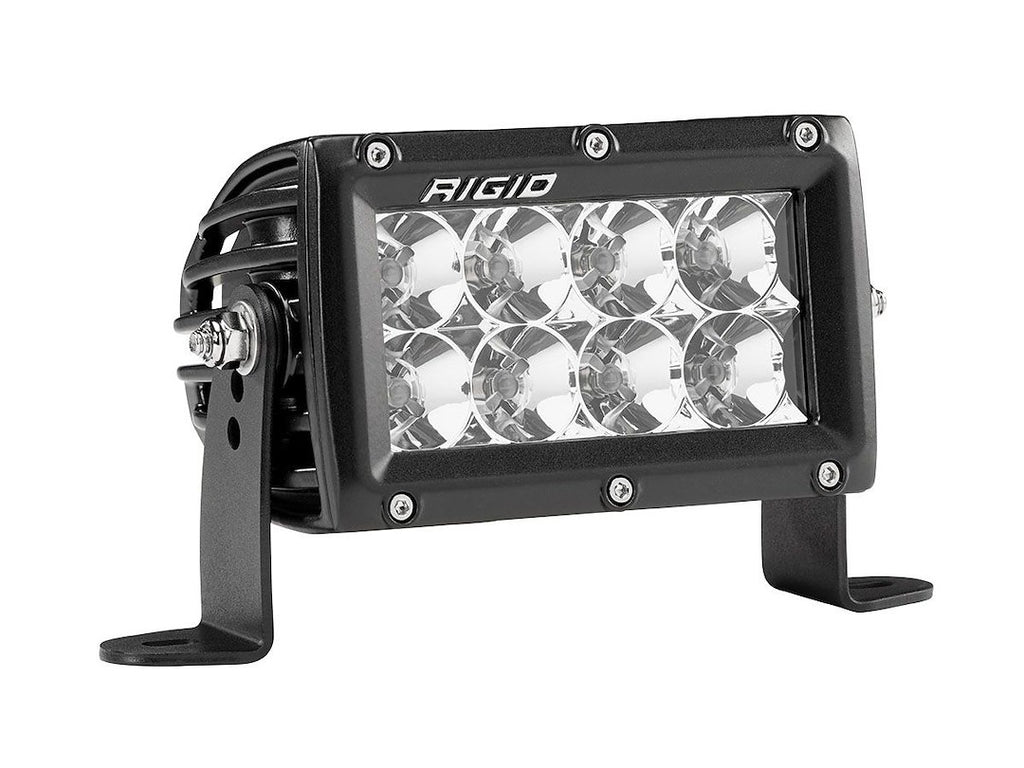

Rigid Lighting E-Series LED Light Bar (MPN: 104113)

High-performance LED light bar with versatile applications and enhanced brightness.

The Rigid Lighting E-Series LED Light Bar is engineered to deliver exceptional illumination with its advanced LED technology, providing up to 111 percent more raw lumens than previous models. This 4-inch light bar features a flood beam pattern, producing an impressive 6336 raw lumens, making it suitable for a variety of applications including off-road, power sports, marine, and automotive use. Constructed with a durable black aluminum alloy housing and a clear polycarbonate lens, the E-Series is designed to withstand harsh conditions while maintaining optimal performance.

Incorporating a range of innovative features, the E-Series includes an integrated thermal management system, reverse polarity protection, and is IP68 rated for dust and water ingress. The light bar operates efficiently within a voltage range of 9 to 36 volts and is compliant with SAE J575 standards for shock and vibration resistance. With a lifespan exceeding 50,000 hours, this LED light bar is built for longevity and reliability.

The E-Series comes complete with essential mounting hardware, including two black powder-coated L-shape brackets, a wiring harness, a switch, and a Deutsch connector, ensuring a straightforward installation process. Its versatility and robust design make it a valuable addition to any vehicle, enhancing visibility and safety in various environments.

Features

• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• Reverse Polarity Protection
• IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
• Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
• SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
• Waterproof Connector

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 104113
• Shape: Rectangular
• Beam Type: Flood Beam
• Diameter: Not Applicable
• Height/ Width: 3-1/4 Inch Height X 5-1/4 Inch Width
• Bulb Type: LED
• Light Color: White
• Quantity: Single
• Universality: Fully Universal
• Depth: 3-3/4 Inch
• Wattage: 61 Watt
• Voltage Rating: 9 To 36 Volt
• Mounting Style: Surface Mount
• Ampere Rating At 12 Volts: 4.36 Amp
• Lumens: 6336 Lumens
• Bulb Specifications: 8 Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum
• Includes: With Two L-Shape Brackets/ Wiring Harness/ Switch/ Deutsch Connector/ Mounting Hardware
• Estimated Install Time (Hours): 1.5

Technical Documents

• 11-13836-A_-_E_SR-Series_PRO.pdf
