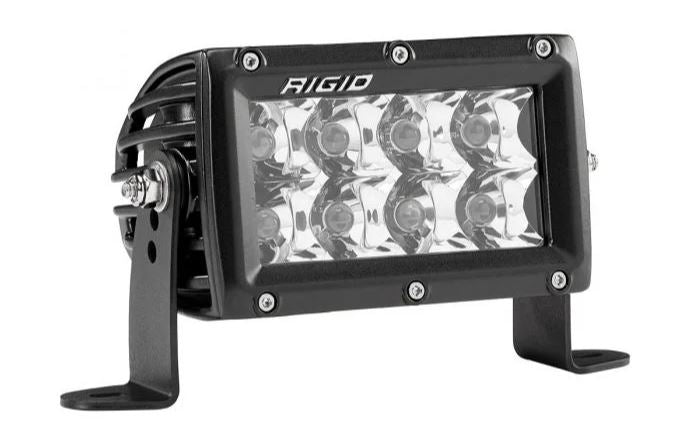

Rigid Lighting E-Series LED Driving Fog Light (MPN: 104213)

High-performance LED light bar with advanced features for versatile applications.

The Rigid Lighting E-Series LED Driving Fog Light is engineered to deliver exceptional illumination with its advanced LED technology, producing up to 6336 raw lumens. This 4-inch light bar features a durable black aluminum alloy housing and a clear polycarbonate lens, ensuring both longevity and performance in various conditions. Designed for surface mounting, it includes essential installation components such as L-shape brackets, a wiring harness, and a switch, making it suitable for a range of applications including off-road, marine, and automotive use.

With a spot beam configuration, the E-Series is optimized for focused lighting, enhancing visibility in challenging environments. The light bar operates efficiently within a voltage range of 9 to 36 volts and draws 4.36 amps at 12 volts, making it compatible with a variety of vehicles. Its robust construction features an integrated thermal management system and is IP68 rated for dust and water ingress, ensuring reliable performance in harsh conditions.

The E-Series also boasts a lifespan of over 50,000 hours, making it a cost-effective lighting solution. Additional features include reverse polarity protection and compliance with SAE J575 standards for shock and vibration resistance. This versatility and durability make the Rigid Lighting E-Series an excellent choice for those seeking high-quality lighting solutions.

Features

• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• Reverse Polarity Protection
• IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
• Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
• SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
• Waterproof Connector

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 104213
• Shape: Rectangular
• Beam Type: Spot Beam
• Diameter: Not Applicable
• Height/ Width: 3-1/4 Inch Height X 5-1/4 Inch Width
• Bulb Type: LED
• Light Color: White
• Quantity: Single
• Depth: 3-3/4 Inch
• Wattage: 61 Watt
• Voltage Rating: 9 To 36 Volt
• Mounting Style: Surface Mount
• Ampere Rating At 12 Volts: 4.36 Amp
• Lumens: 6336 Lumens
• Bulb Specifications: 8 Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum
• Includes: With Two L-Shape Brackets/ Wiring Harness/ Switch/ Deutsch Connector/ Mounting Hardware
• Estimated Install Time (Hours): 1.5
