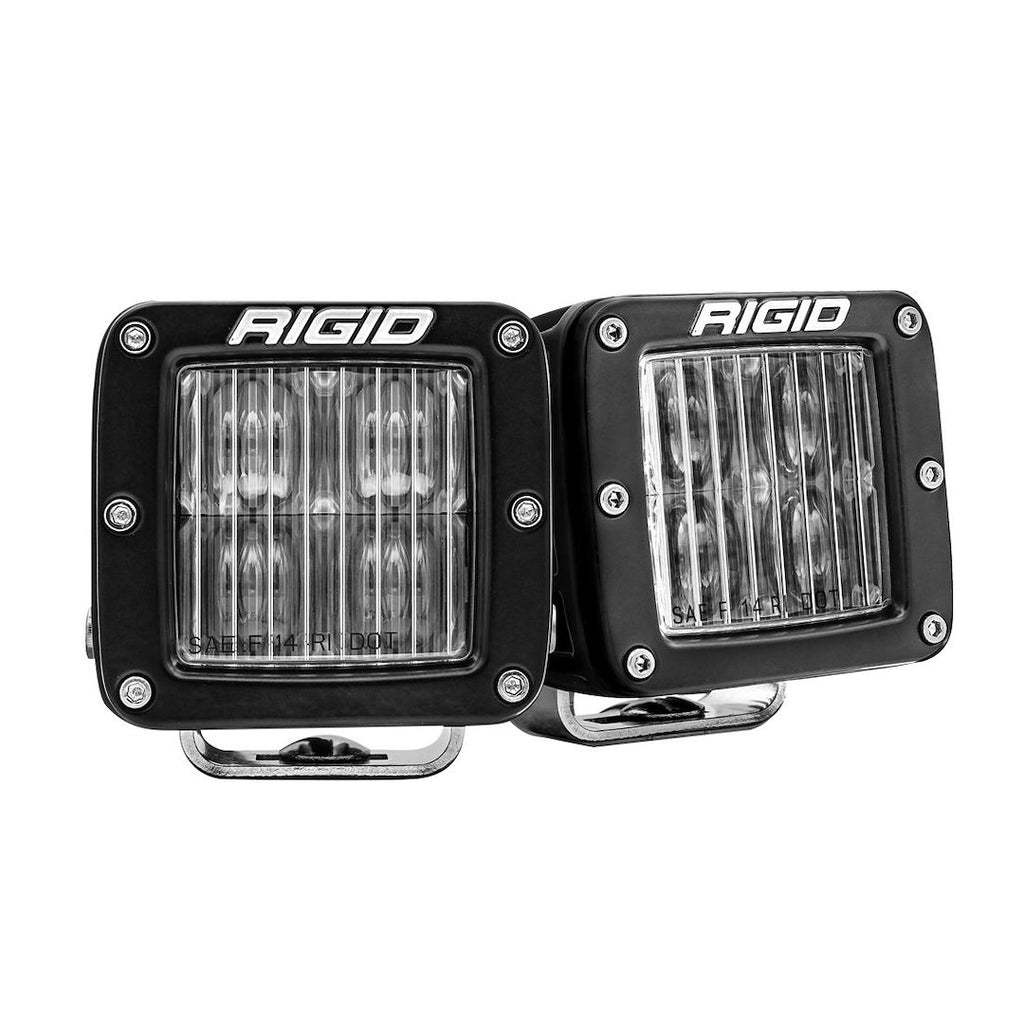

Rigid LED Fog Light D-Series (MPN: 504815)

High-performance fog lights with advanced optics for on-road use.

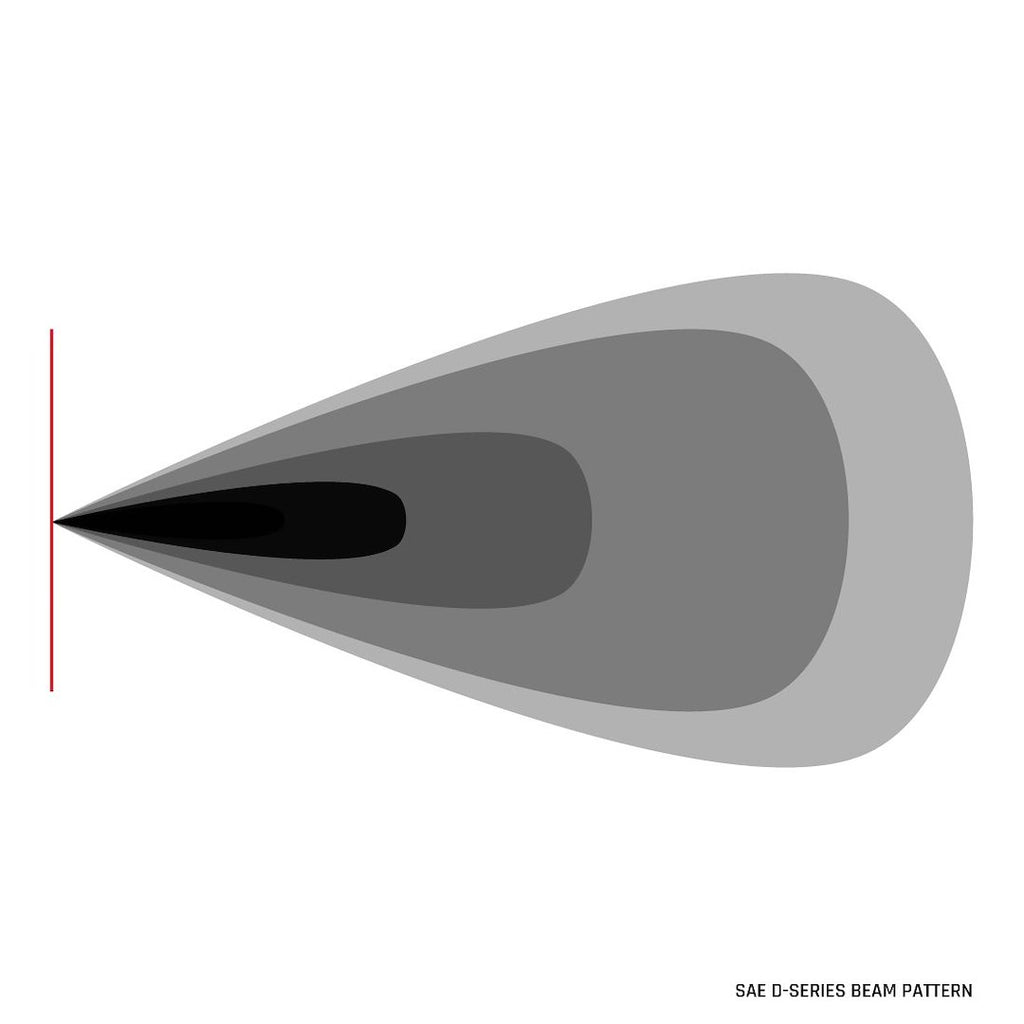

The Rigid LED Fog Light D-Series is engineered for both on-road and off-road applications, ensuring compliance with SAE standards. Featuring a patented Clarilux optic system, these lights provide an optimal output spread and height, delivering a color temperature that mimics pure daylight. With a power draw of only 1.5 amps and an impressive output of 1760 raw lumens, these fog lights are designed for efficiency and longevity, boasting a lifespan of over 50,000 hours.

Constructed with an impact-resistant polycarbonate lens and a high-grade alloy housing, the Rigid fog lights are built to withstand harsh conditions. The integrated thermal management system and advanced heat sink design ensure reliable performance even in extreme temperatures ranging from -40 to +145 degrees Fahrenheit. Additionally, the lights are IP68 compliant, providing protection against dust and water ingress, making them suitable for various environments.

Included with the fog lights are stainless steel mounts, a wiring harness, and installation hardware, facilitating a straightforward setup. The durable UV polyester powder coat finish enhances the longevity of the lights, while features such as over and under voltage protection, RFI and EMI protection, and reverse polarity protection add to their reliability. The Rigid LED Fog Light D-Series is a robust solution for enhancing visibility and safety on the road.

Features

• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• High Grade Alloy Housing And Heatsink
• Over And Under Voltage Protection
• RFI And EMI Protection: Reverse Polarity Protection
• RoHS Compliant
• IP68 Compliant - Dust And Water Ingress: Waterproof Connector: 50,000 Plus Hour Lifespan
• Operating Temp -40 Degree Fahrenheit To +145 Degree Fahrenheit: SAE J575 Compliant - Shock And Vibration: Pressure Equalizing Vent
• Durable UV Polyester Powder Coat: Patented Optics: SAE J583 Compliant Street Legal LED Fog Light

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 504815
• Shape: Square
• Beam Type: Fog Beam
• Diameter: Not Applicable

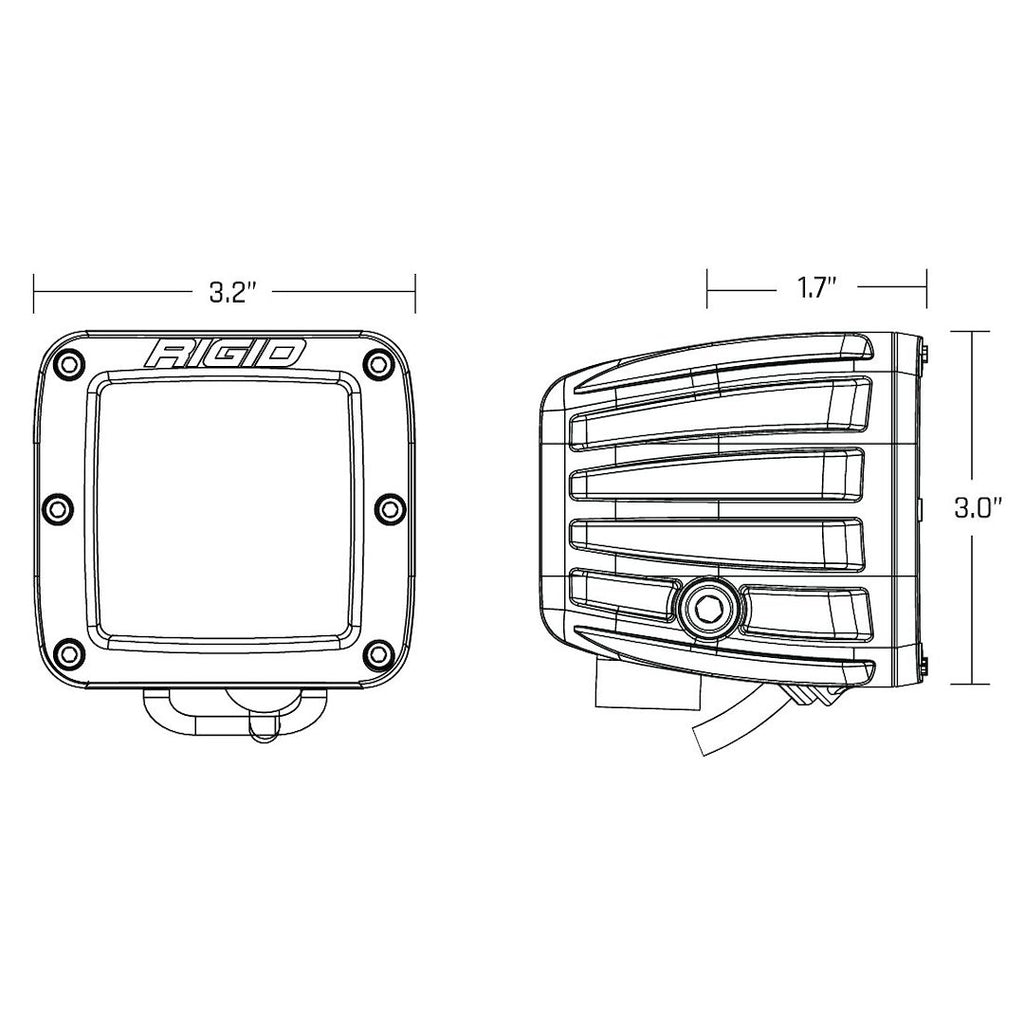

• Height/ Width: 3 Inch Height X 3 Inch Width
• Bulb Type: LED
• Light Color: White
• Quantity: Set Of 2
• Universality: Fully Universal
• Depth: 3 Inch
• Wattage: 22 Watt
• Voltage Rating: 9 To 36 Volt
• Mounting Style: Surface Mount
• Ampere Rating At 12 Volts: 1.5 Amp
• Lumens: 1760 Lumens
• Bulb Specifications: White LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum
• Includes: With Stainless Steel Mounts/ Wiring Harness/ Installation Hardware
• Estimated Install Time (Hours): 1.5

Technical Documents

• 504815_INS.pdf
