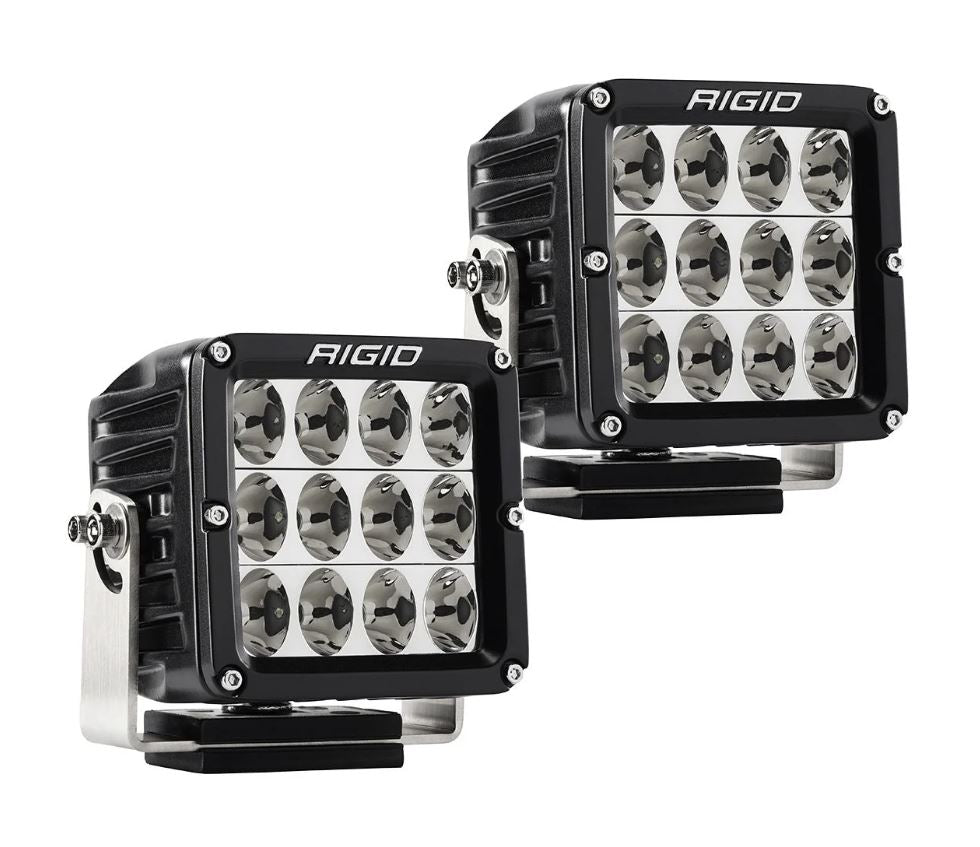

Rigid D2 XL Series LED Driving Fog Light (MPN: 322613)

High-intensity LED lights for off-road and automotive applications.

The Rigid D2 XL Series LED Driving Fog Light offers a powerful lighting solution with its compact 4x4 inch housing. This model features 12 LED bulbs that produce an impressive 9504 raw lumens, ensuring maximum visibility in various conditions. Constructed with an unbreakable polycarbonate lens and a durable powder-coated black housing, these lights are designed to withstand harsh environments and provide reliable performance.

Recent advancements in LED technology have allowed the D2 XL Series to deliver up to 170 percent more lumens while maintaining energy efficiency. The integrated thermal management system and reverse polarity protection enhance the longevity of the lights, which are rated for over 50,000 hours of use. With an IP68 rating for dust and water ingress, these lights are suitable for off-road, power sports, and other demanding applications.

The D2 XL Series includes a complete set of two lights, mounting brackets, and a plug-and-play wiring harness with a Deutsch connector and switch. This ensures a straightforward installation process, making it accessible for various users. Whether for mining, agriculture, or emergency services, the Rigid D2 XL Series LED Driving Fog Light is engineered to meet the needs of high-intensity lighting requirements.

Features

• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• Reverse Polarity Protection
• IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
• Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
• SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
• Waterproof Connector

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 322613
• Shape: Square
• Beam Type: Driving Beam
• Diameter: Not Applicable

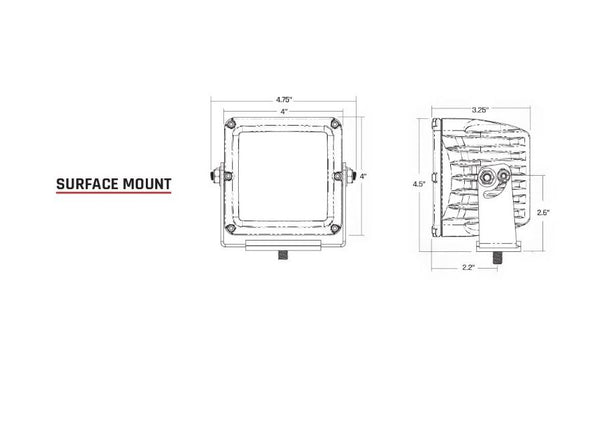

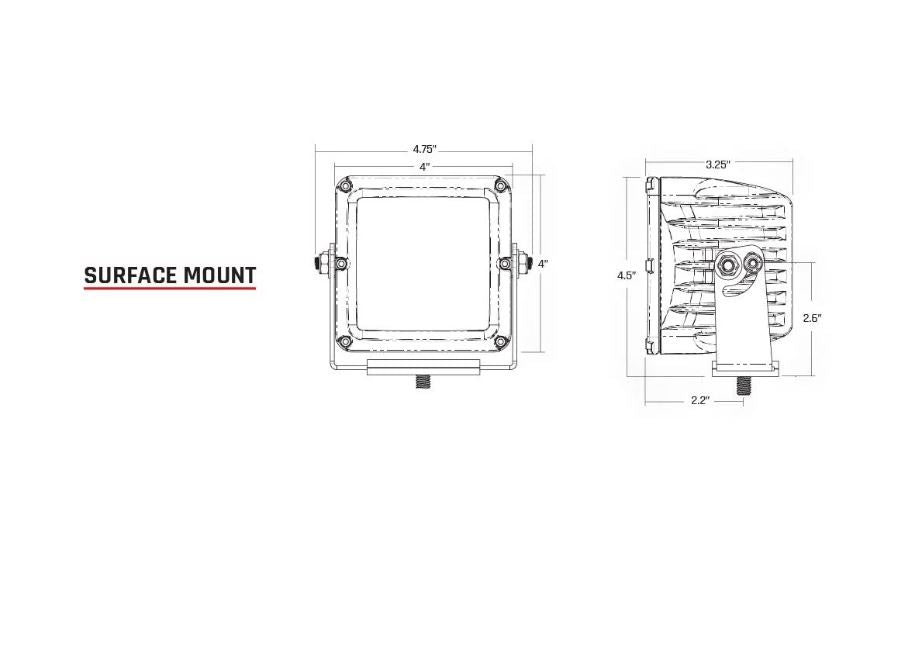

• Height/ Width: 4 Inch Height X 4 Inch Width
• Bulb Type: LED
• Light Color: White
• Quantity: Set Of 2
• Universality: Semi-Universal
• Depth: 3-1/4 Inch
• Wattage: 89 Watt
• Voltage Rating: 9 To 36 Volt
• Mounting Style: Surface Mount
• Ampere Rating At 12 Volts: 6.36 Amp
• Lumens: 9504 Lumens
• Bulb Specifications: 12 Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum
• Includes: With Mounting Brackets/ Plug And Play Wiring Harness With Deutsch Connector And Switch
• Estimated Install Time (Hours): 1.5

Technical Documents

• RIGID_D-XL_Instructions.pdf
