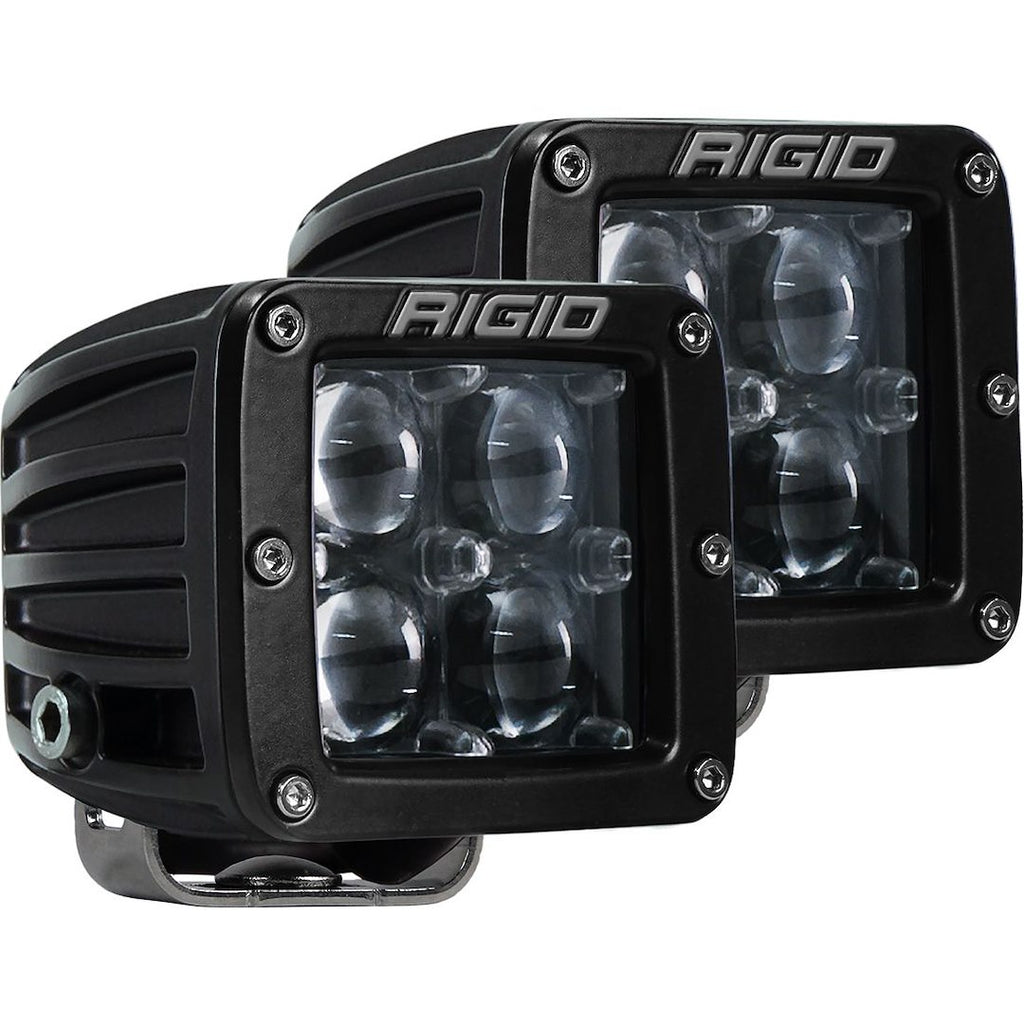

Rigid D-Series Pro LED Driving Fog Light (MPN: 504713)

High-performance compact lighting with advanced LED technology for off-road use.

The Rigid D-Series Pro LED Driving Fog Light is engineered for versatility and high performance in compact lighting solutions. With a square design measuring 3-3/16 inches, this light features a hyperspot beam that delivers an impressive 1760 raw lumens, making it suitable for various off-road applications. The durable construction includes a black aluminum housing and an unbreakable clear Lexan lens, ensuring reliability in harsh conditions.

This lighting system is designed with advanced thermal management and reverse polarity protection, providing consistent performance across a wide temperature range from -40 to +145 degrees Fahrenheit. The IP68 rating guarantees protection against dust and water ingress, while the integrated pressure equalizing vent enhances durability. Each set includes two lights, mounting brackets, and a plug-and-play wiring harness with a Deutsch connector for easy installation.

The Rigid D-Series Pro is built to last, with a lifespan exceeding 50,000 hours and compliance with SAE J575 standards for shock and vibration resistance. This makes it an excellent choice for those seeking robust lighting solutions for off-road adventures.

Features

• Durable UV Resistant Powder Coat
• High-Grade Aluminum Alloy
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• Reverse Polarity Protection
• IP68 Rated For Dust And Water Ingress: Over And Under Voltage Protection
• Pressure Equalizing Vent; Operating Temperature -40 Degree Fahrenheit To +145 Degree Fahrenheit
• SAE J575 Compliant Shock And Vibration; RFI And EMI Protection; 50,000 Plus Hour Lifespan; 9 To 36 Volt DC
• Waterproof Connector

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 504713
• Shape: Square
• Beam Type: Hyperspot Beam
• Diameter: Not Applicable

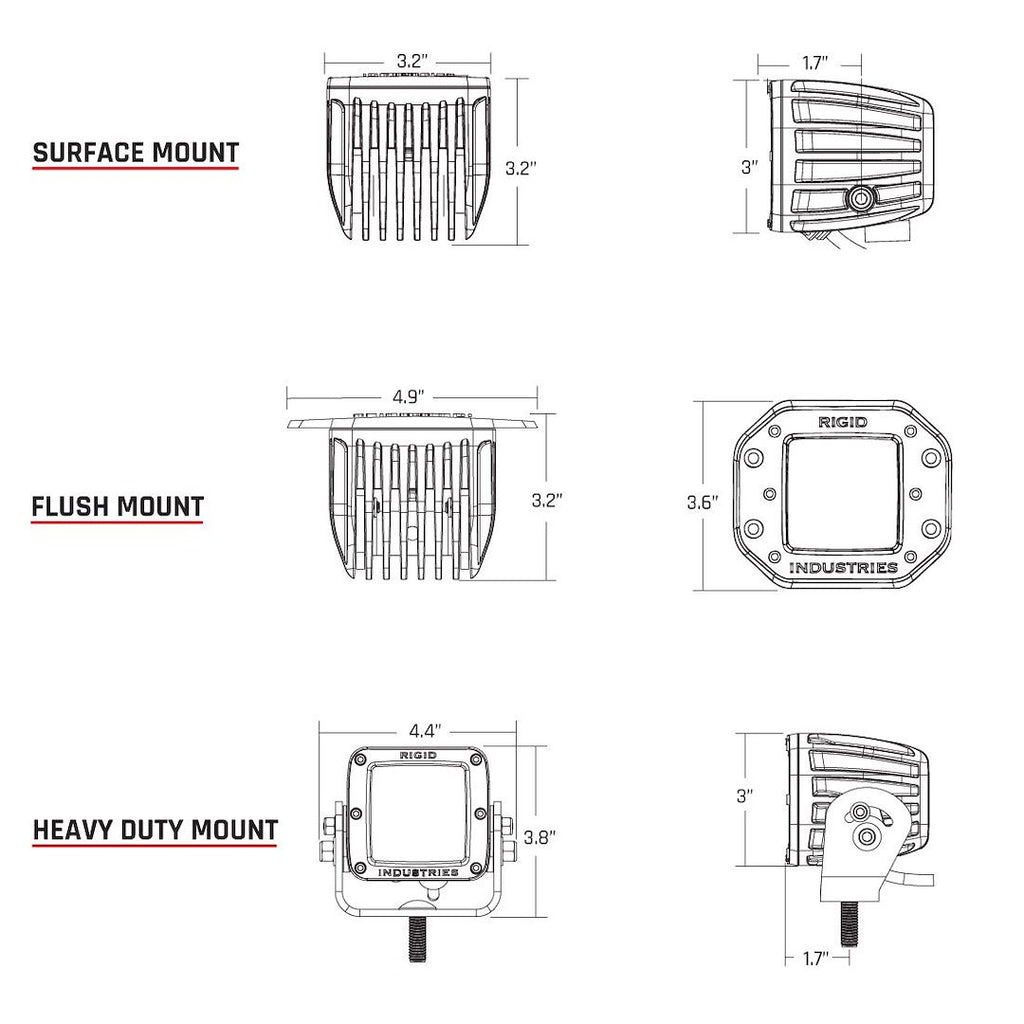

• Height/ Width: 3-3/16 Inch Height X 3-3/16 Inch Width
• Bulb Type: LED
• Light Color: White
• Quantity: Set Of 2
• Universality: Semi-Universal
• Depth: 2-5/16 Inch
• Wattage: 20.1 Watt
• Voltage Rating: 9 To 36 Volt
• Mounting Style: Surface Mount
• Ampere Rating At 12 Volts: 2.14 Amp
• Lumens: 1760 Lumens
• Bulb Specifications: 4 Clear LED Bulbs
• Lens Material: Lexan
• Housing Color: Black
• Housing Material: Aluminum
• Includes: With Mounting Brackets/ Plug And Play Wiring Harness With Deutsch Connector And Switch
• Estimated Install Time (Hours): 1.5

Technical Documents

• RIGID_SR-Q_D-Series_D-SS_Instructions.pdf
