Rigid Adapt LED Light Bar (MPN: 230413)

Revolutionary off-road lighting with adjustable beam patterns and RGB-W accents.

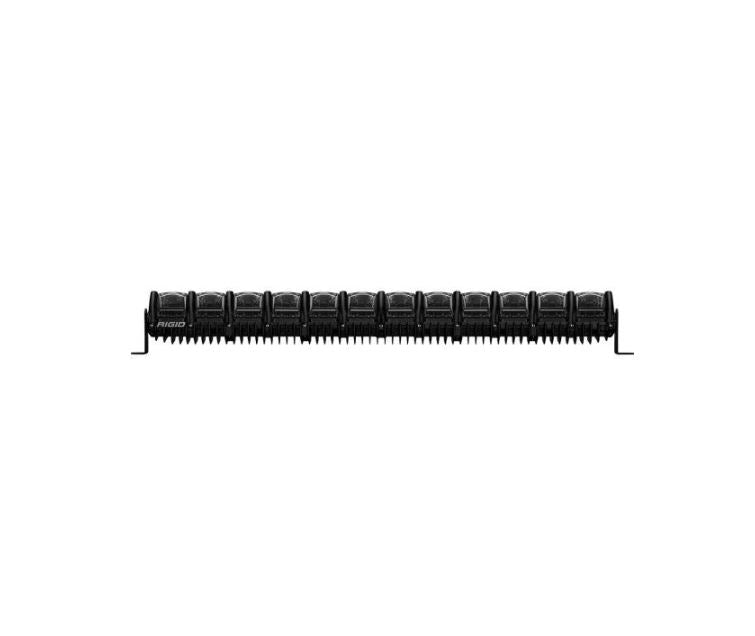

The Rigid Adapt LED Light Bar is a cutting-edge lighting solution designed for off-road applications. This 30-inch light bar features advanced LED technology and patented optics, allowing it to adapt to varying conditions with 8 selectable beam patterns ranging from a 15-degree spot beam to a 90-degree flood beam. The innovative Active View Technology automatically adjusts the beam pattern based on vehicle speed, enhancing visibility and safety during off-road adventures.

Constructed with a durable black aluminum housing and a clear polycarbonate lens, the Adapt light bar is built to withstand harsh environments. It includes integrated RGB-W accent lighting, enabling users to customize the light's appearance with any color in the spectrum. The backlit molded dash controller allows for easy selection of modes, accent colors, and user presets, providing a tailored lighting experience.

With multiple mounting options, including traditional side mounts and low-profile underside mounts, installation is versatile and straightforward. The light bar comes complete with mounting brackets, hardware, and a plug-and-play wiring harness for quick setup. The Rigid Adapt LED Light Bar is a powerful and flexible lighting solution that meets the demands of serious off-road enthusiasts.

Features

• Active View Technology - Automatically Change Beam Patterns Based On Vehicle Speed (ADAPT GPS Module Required)
• 8 Selectable Beam Patterns From 15-Degrees To 90-Degrees
• Integrated Optic Design With Spot, Flood, And Driving Zones
• Selectable RGB-W Accent Lighting – Choose From Any Color In The Light Spectrum
• Back Lit Molded Dash Controller - Enables User To Select Mode, Accent Color, Adaptive Mode, And Select Between 2 User Presets
• 2 User Presets – Preset Both Beam Pattern Mode And Accent Lighting Colors
• Multiple Mounting Locations; Traditional Side Mounting Or Underside Low-Profile Mount

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 230413
• Bulb Type: LED
• Style: Straight
• Length: 30 Inch
• Beam Type: Combo Beam Driving And Flood
• Number Of Rows: 1
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Beam Angle (Deg): 15 Degree Driving/ 90 Degree Flood
• Lumens: 20544 Lumens
• Wattage: 240 Watt

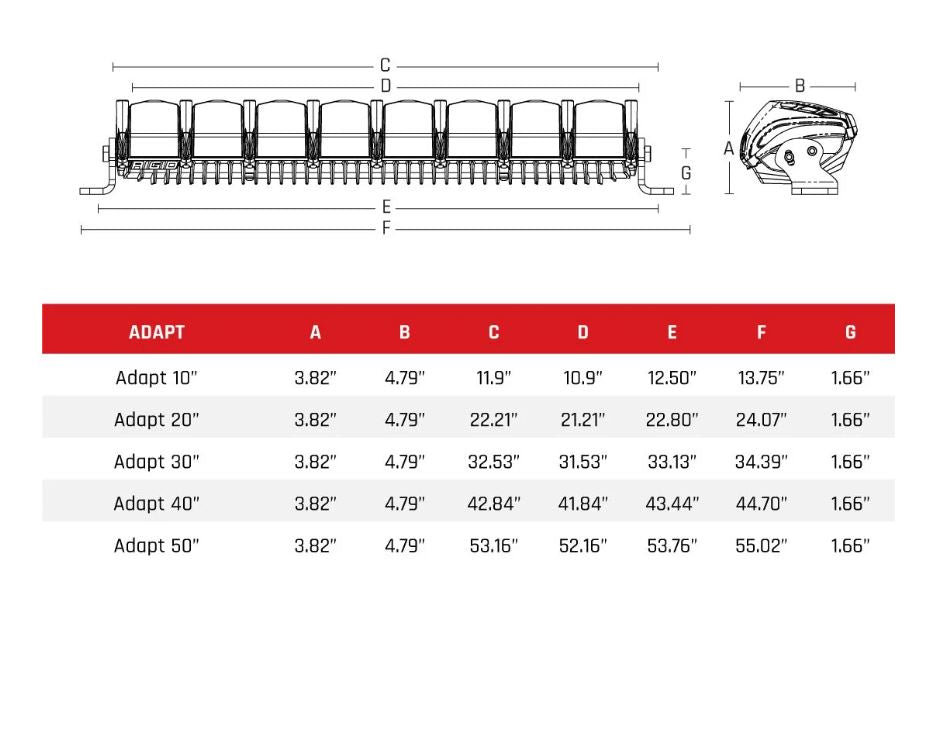

• Width: 4.79 Inch
• Height: 3.82 Inch
• Voltage Rating: 9 To 36 Volt
• Ampere Rating At 12 Volts: 14.8 To 20 Amp
• Bulb Specifications: 84 Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Length: 34.39 Inch
• Mounting Style: Universal Side Mount
• Connection Type: Plug And Play Wiring Harness
• Includes: With Mounting Brackets/ Hardware/ RGB-W Accent Lighting/ GORE Pressure Equalizing Vent
• Estimated Install Time (Hours): 1.5

Technical Documents

• RIGID_Adapt_Instructions.pdf
