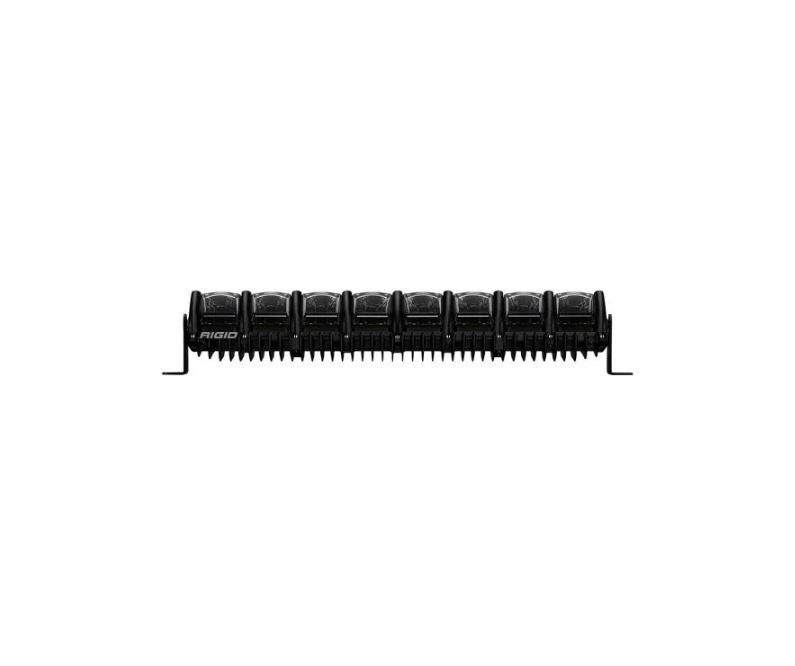

Rigid Adapt LED Light Bar (MPN: 220413)

Revolutionary off-road lighting with adjustable beam patterns and colors.

The Rigid Adapt LED Light Bar is a cutting-edge lighting solution designed for off-road applications. This 20-inch light bar features advanced LED technology and patented optics, allowing it to adapt to changing conditions with 8 selectable beam patterns ranging from a broad 90-degree flood to a focused 15-degree spot beam. The innovative Active View Technology automatically adjusts the beam pattern based on vehicle speed, enhancing visibility and safety during various driving scenarios.

Constructed with a durable black aluminum housing and a clear polycarbonate lens, the Rigid Adapt is built to withstand harsh environments. It includes integrated RGB-W accent lighting, enabling users to customize the light bar's appearance with any color in the spectrum. The backlit molded dash controller allows for easy selection of modes, accent colors, and user presets, providing a tailored lighting experience.

Installation is straightforward with the included mounting brackets and plug-and-play wiring harness. The light bar is designed for universal side mounting, making it compatible with a wide range of vehicles. With a lumen output of 13696 and a wattage of 160, the Rigid Adapt LED Light Bar delivers powerful illumination for off-road adventures.

Features

• Active View Technology - Automatically Change Beam Patterns Based On Vehicle Speed (ADAPT GPS Module Required)
• 8 Selectable Beam Patterns From 15-Degrees To 90-Degrees
• Integrated Optic Design With Spot, Flood, And Driving Zones
• Selectable RGB-W Accent Lighting – Choose From Any Color In The Light Spectrum
• Back Lit Molded Dash Controller - Enables User To Select Mode, Accent Color, Adaptive Mode, And Select Between 2 User Presets
• 2 User Presets – Preset Both Beam Pattern Mode And Accent Lighting Colors
• Multiple Mounting Locations; Traditional Side Mounting Or Underside Low-Profile Mount

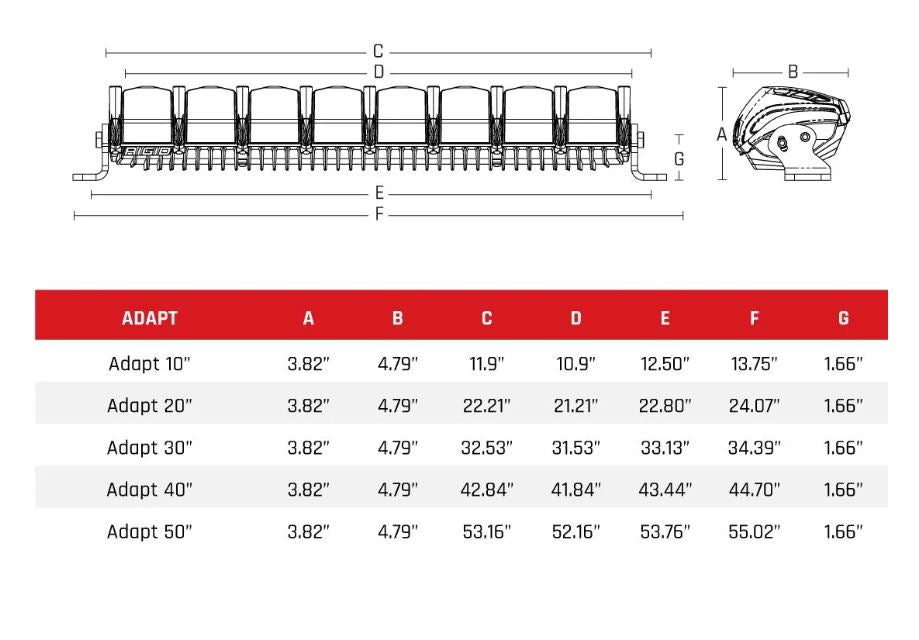

Specifications

• Manufacturer: Rigid Lighting
• Manufacturer Part Number: 220413
• Bulb Type: LED
• Style: Straight
• Length: 20 Inch
• Beam Type: Combo Beam Driving And Flood
• Number Of Rows: 1
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Beam Angle (Deg): 15 Degree Driving/ 90 Degree Flood
• Lumens: 13696 Lumens
• Wattage: 160 Watt
• Width: 4.79 Inch
• Height: 3.82 Inch
• Voltage Rating: 9 To 36 Volt
• Ampere Rating At 12 Volts: 9.8 To 13.4 Amp
• Bulb Specifications: 56 Clear LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Length: 24.07 Inch
• Mounting Style: Universal Side Mount
• Connection Type: Plug And Play Wiring Harness
• Includes: With Mounting Brackets/ Hardware/ GORE Pressure Equalizing Vent
• Estimated Install Time (Hours): 1.5

Technical Documents

• RIGID_Adapt_Instructions.pdf
