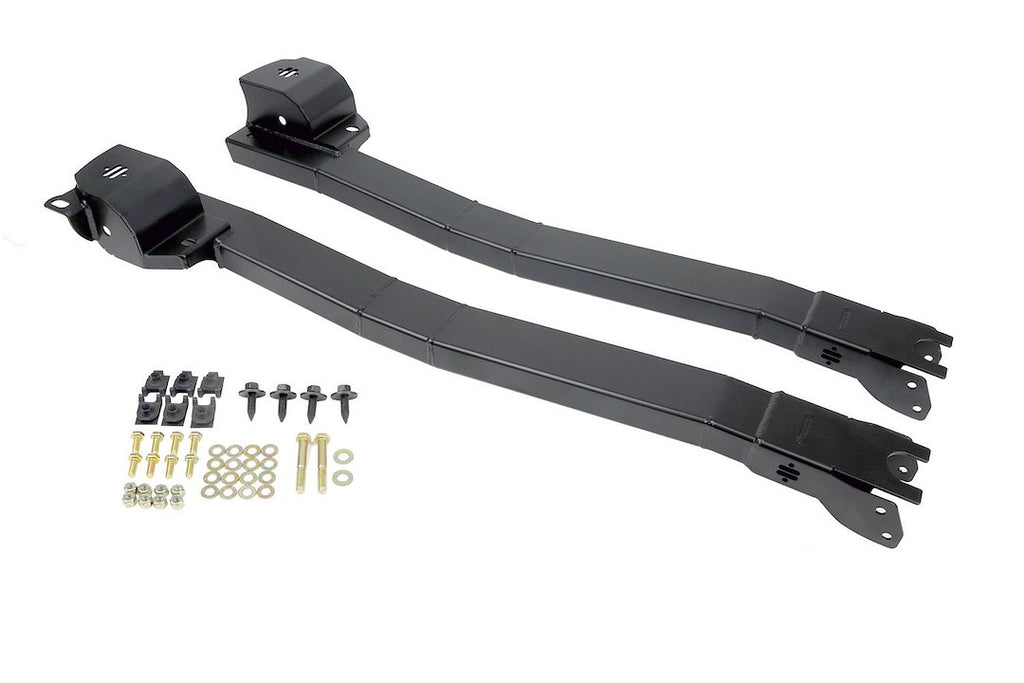

Ridetech Subframe Connector (MPN: 11167300)

Enhance chassis rigidity and performance for classic F-Bodies.

The Ridetech subframe connectors are designed specifically for 1967, 1968, and 1969 Camaro and Firebird models. These connectors significantly improve the structural integrity of the vintage F-Body chassis by reducing flex, which in turn enhances overall performance. The installation process is straightforward, requiring no fabrication as these connectors are engineered for a direct bolt-on fit.

Constructed from durable steel and finished with a gloss black powder coating, these subframe connectors not only provide strength but also maintain a high-quality appearance. The rear of the connector mounts securely into three existing floor pan bolt locations, effectively replacing the original leaf spring pocket for maximum strength. The front bolts through the original subframe and is secured by the body bushing, further enhancing rigidity and stability during operation.

By integrating these subframe connectors, users can expect a noticeable transformation in handling and ride quality, making them a valuable addition to any classic F-Body restoration or performance upgrade.

Features

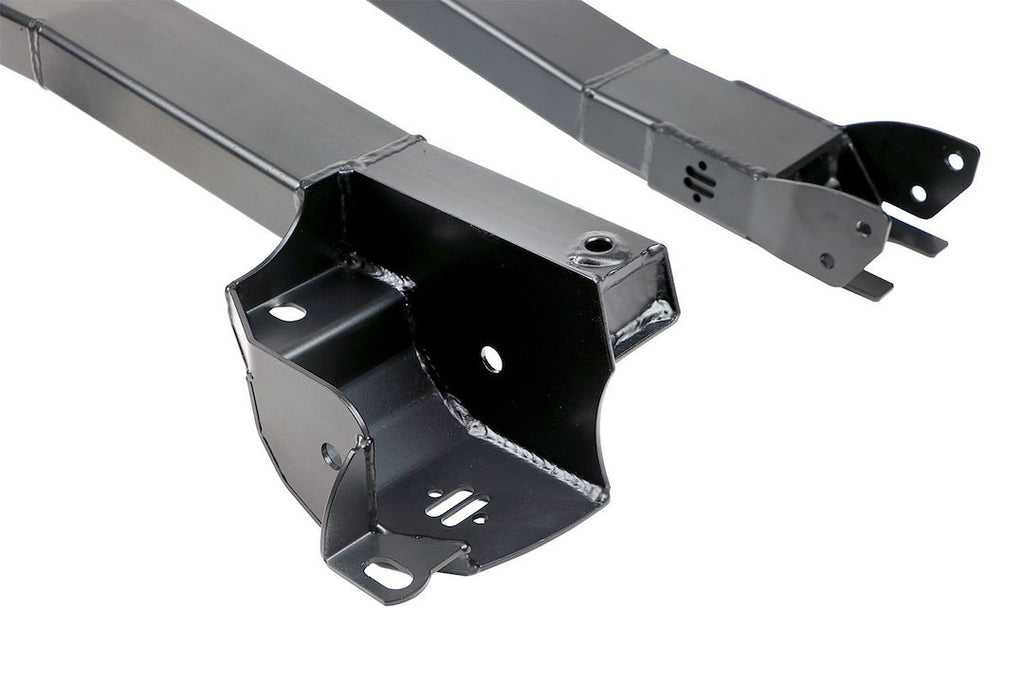

• The Rear Of The Subframe Connector Mounts Solidly Into Three Existing Floor Pan Bolt Locations For Maximum Strength And Completely Replaces The Original Leaf Spring Pocket
• The Front Of The Subframe Connector Bolts Through The Original Subframe And Is Captured By The Body Bushing As Well To Enhance Rigidity
• No Fabrication Required, Direct Bolt On
• Durable Powder Coated Finish For Long Lasting, High Quality, Appearance

Specifications

• Manufacturer: Ridetech
• Manufacturer Part Number: 11167300
• Style: Tubular
• Installation Type: Bolt-On
• Finish: Gloss Powder Coated
• Color: Black
• Material: Steel

Compatibility / Fit

• 1967-1969 Chevrolet Camaro
• 1967-1969 Pontiac Firebird

Technical Documents

• 11167300.pdf
