Redhorse Performance Adapter Fitting (MPN: 816-03-02-2)

High performance adapter for seamless hose transitions and alignment.

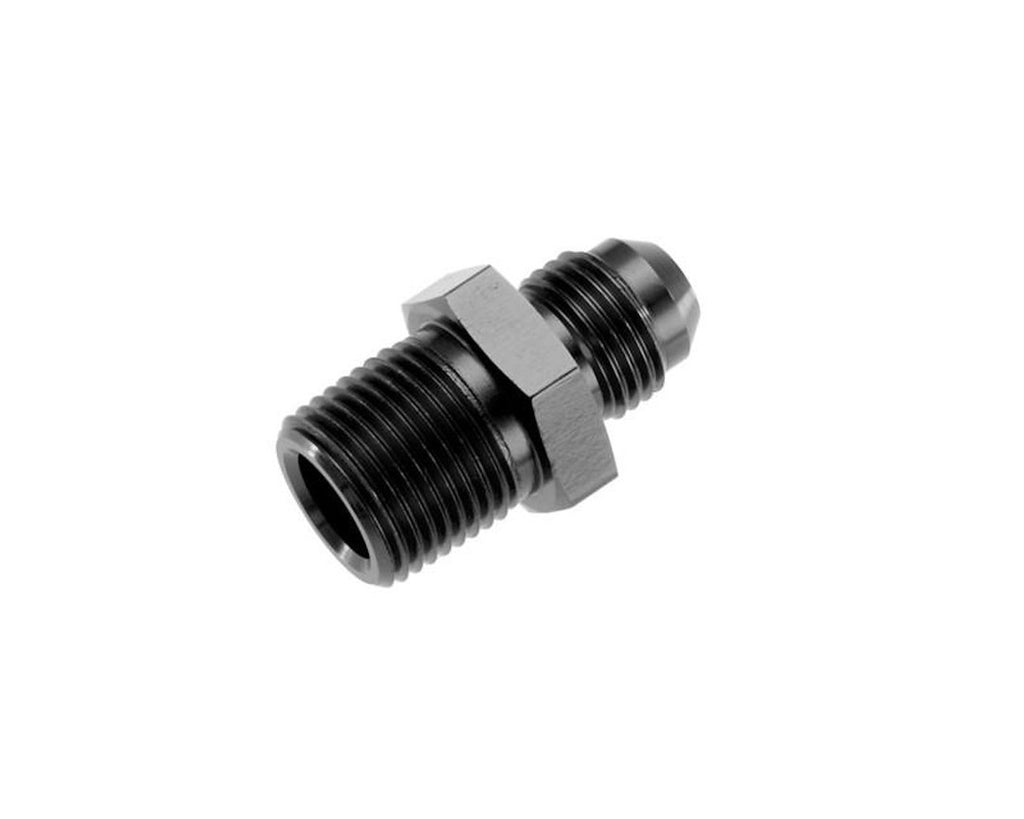

The Redhorse Performance Adapter Fitting is designed to facilitate the transition from hard line tubing to braided stainless steel or nylon hose. This fitting features a straight design with male threads on both ends, specifically a -3 AN male to 1/8 NPT male configuration. Constructed from high-quality 6061 T-6 aluminum, it ensures durability and reliability in various applications.

The fitting incorporates a swivel seal construction, allowing for easy assembly and alignment during installation. Its unique design not only enhances functionality but also contributes to a streamlined appearance. The anodized black finish provides an additional layer of protection while maintaining a consistent and professional look.

Engineered for high performance, this adapter fitting is race tested and CNC machined to meet stringent quality standards. The exclusive anodizing and polishing process adds a final touch of quality, making it a valuable addition to any performance setup. This fitting is an essential component for those looking to optimize their fluid transfer systems.

Features

• Adapters Make The Transition From Hard Line Tube To Braided Stainless Steel Or Nylon Hose A Snap
• Swivel Seal Construction And Is Cut On Our CNC Machines From 6061 T-6 Aluminum
• Unique Design Provides For Quick Assembly And Easy Alignment
• Exclusive Color Consistent Anodizing And Polishing To Add The Final Touch Of Quality And Protection

Specifications

• Manufacturer: Redhorse Performance
• Manufacturer Part Number: 816-03-02-2
• Fitting Type: Flare Fitting
• End Type1: Male Threads
• End Size1: 3/16 Inch (-3 AN)
• End Type2: Male Threads
• End Size2: 1/8 Inch NPT
• Fitting Angle: Straight
• Finish: Anodized
• Color: Black
• Material: Aluminum

Technical Documents

• Understanding_Fuel_Line_Fittings_Straight_and_Tapered_Thread.pdf
