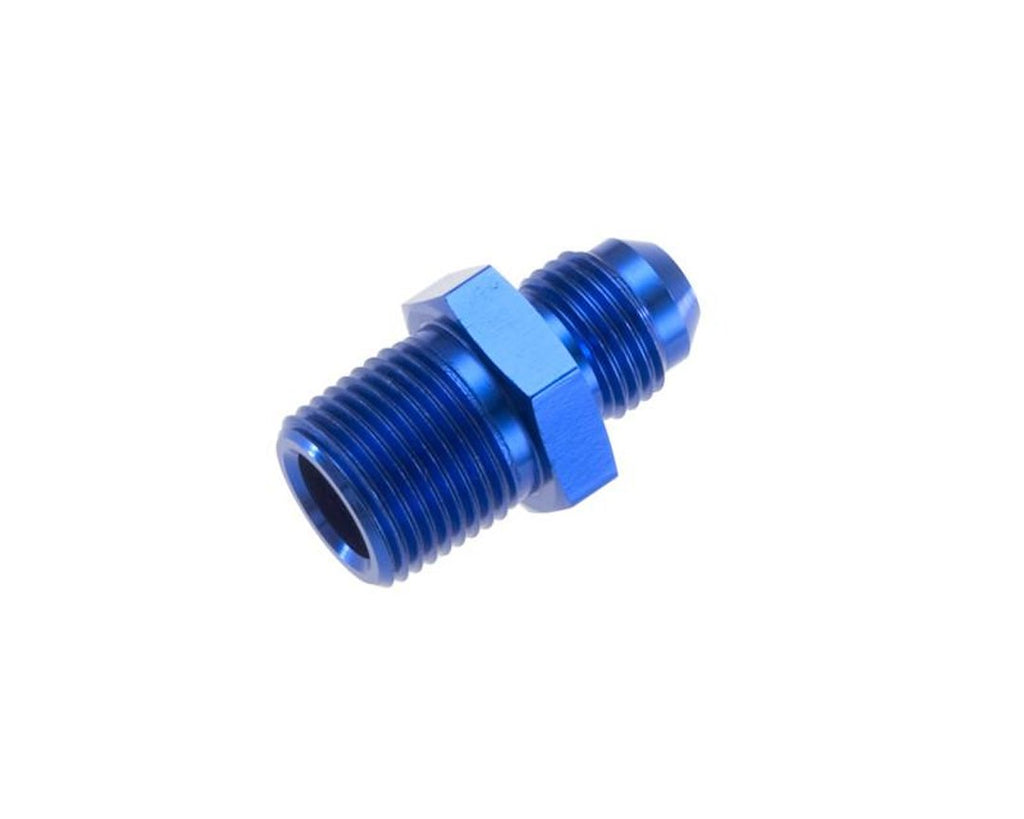

Redhorse Performance Adapter Fitting (MPN: 816-03-02-1)

High performance aluminum fitting for seamless hose transitions.

The Redhorse Performance Adapter Fitting is designed to facilitate the transition from hard line tubing to braided stainless steel or nylon hose. This fitting features a straight design with male threads on both ends, specifically a -3 AN male to 1/8 NPT male configuration. Constructed from high-quality 6061 T-6 aluminum, it ensures durability and reliability in various applications.

The fitting is equipped with a swivel seal construction, allowing for easy alignment and quick assembly. Its unique design minimizes installation time while maximizing performance. The anodized blue finish not only enhances the aesthetic appeal but also provides an additional layer of protection against corrosion and wear.

Redhorse Performance is known for its commitment to quality, and this adapter fitting exemplifies that standard. Each piece is hand polished and color matched, ensuring consistency across the product line. This fitting is race tested, making it suitable for high-performance environments where reliability is crucial.

Features

• Adapters Make The Transition From Hard Line Tube To Braided Stainless Steel Or Nylon Hose A Snap
• Swivel Seal Construction And Is Cut On Our CNC Machines From 6061 T-6 Aluminum
• Unique Design Provides For Quick Assembly And Easy Alignment
• Exclusive Color Consistent Anodizing And Polishing To Add The Final Touch Of Quality And Protection

Specifications

• Manufacturer: Redhorse Performance
• Manufacturer Part Number: 816-03-02-1
• Fitting Type: Flare Fitting
• End Type1: Male Threads
• End Size1: 3/16 Inch (-3 AN)
• End Type2: Male Threads
• End Size2: 1/8 Inch NPT
• Fitting Angle: Straight
• Finish: Anodized
• Color: Blue
• Material: Aluminum

Technical Documents

• Understanding_Fuel_Line_Fittings_Straight_and_Tapered_Thread.pdf
