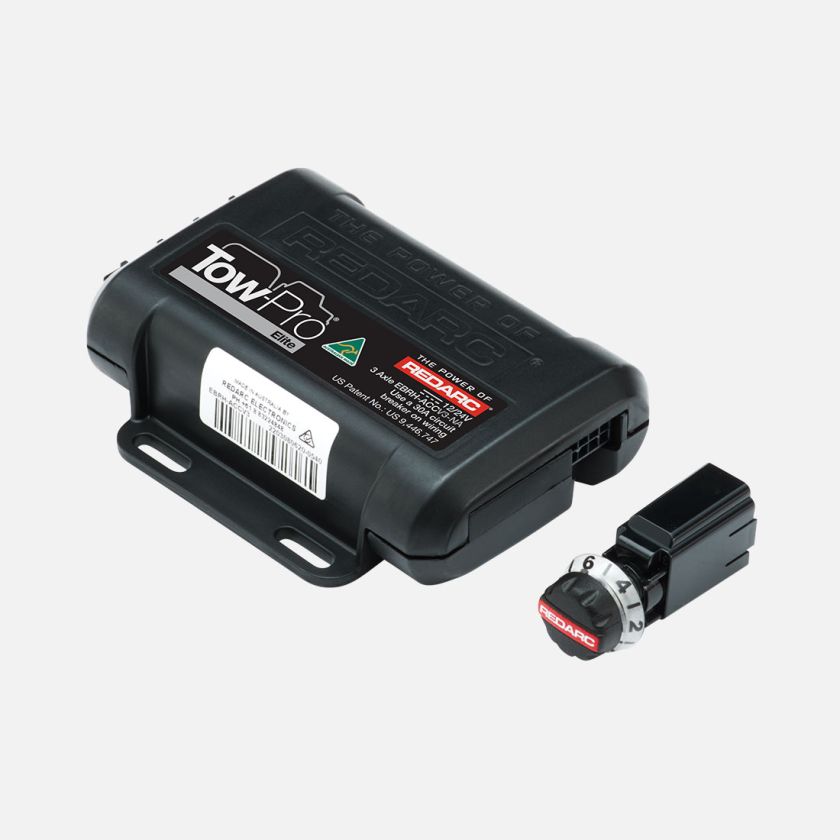

Redarc Tow-Pro Elite Electric Trailer Brake Controller (MPN: EBRH-ACCV3-NA)

Advanced braking control for safe and efficient towing.

The Redarc Tow-Pro Elite V3 Electric Trailer Brake Controller represents the latest advancement in trailer braking technology. This controller allows users to easily switch between Proportional mode, which utilizes inertia sensing for smooth braking during highway travel, and User-Controlled mode, designed for off-road conditions. With continual software updates, the Tow-Pro Elite ensures optimal performance for a variety of towing applications, including caravans, trailers, and boats.

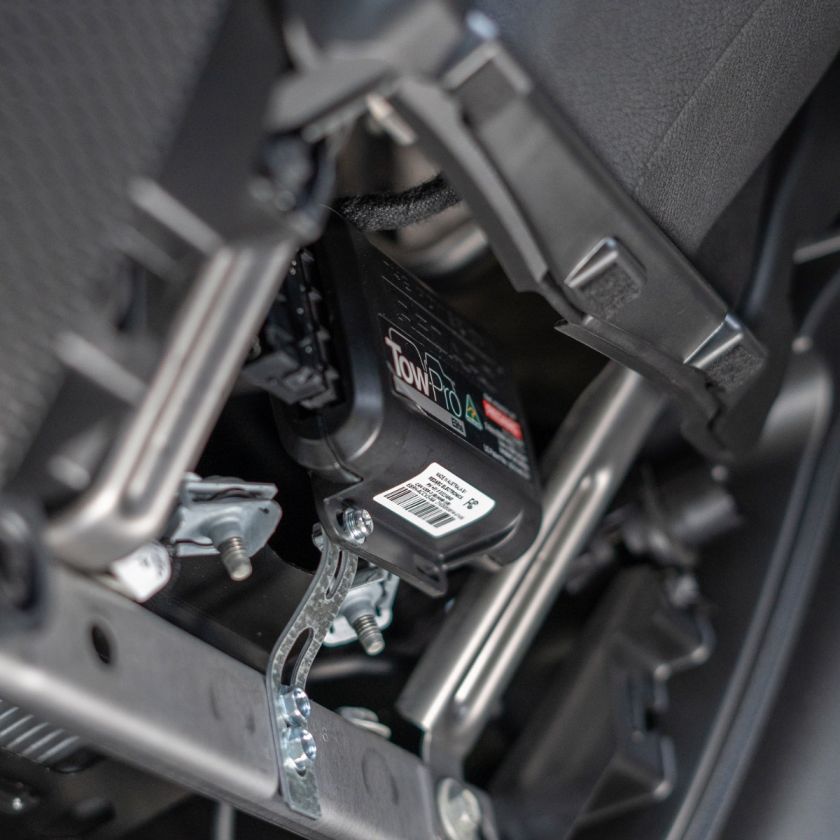

Designed for convenience, the compact unit can be installed under the dash, eliminating the risk of knee interference. The dash-mounted remote head is engineered for a seamless factory appearance and is adaptable to fit modern vehicle designs, including thicker and curved dashes. The controller is compatible with both 12 volt and 24 volt systems and supports electric and electric-over-hydraulic brake systems, making it versatile for different towing setups.

The Tow-Pro Elite V3 is suitable for trailers with 1 to 3 axles and features active calibration for enhanced performance. It includes LED indicators for easy monitoring and is compliant with Federal Motor Vehicle Safety Standards, ensuring safety in the event of an accident. With its user-friendly design and advanced features, the Redarc Tow-Pro Elite is a reliable choice for effective trailer brake control.

Features

• Proportional And User-Controlled Modes
• Compact Unit Installed Under The Dash Means No More Knee-Knocking

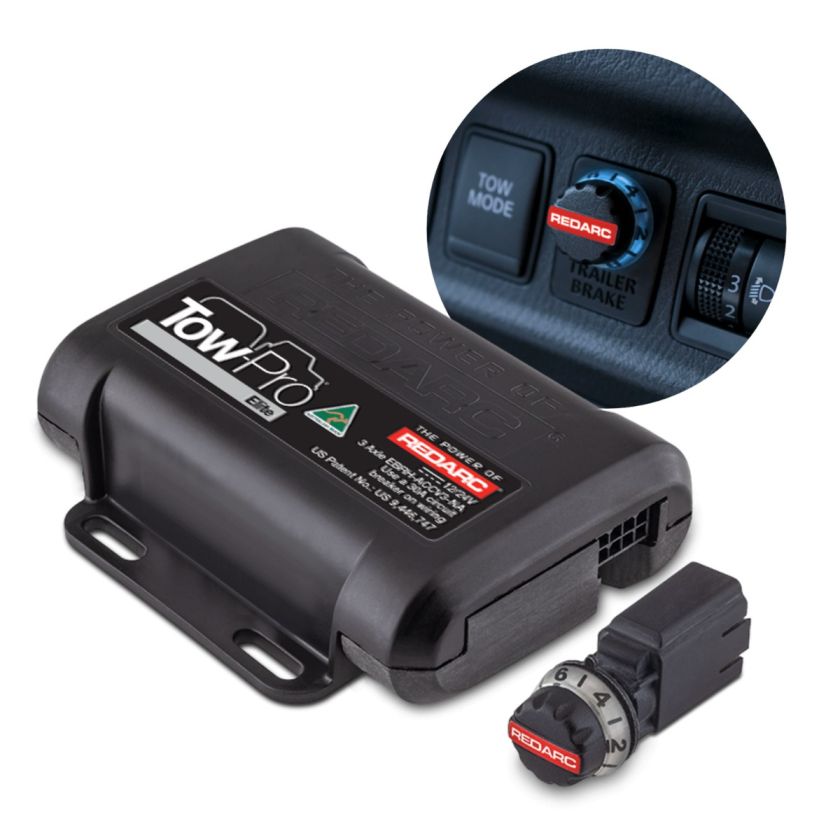

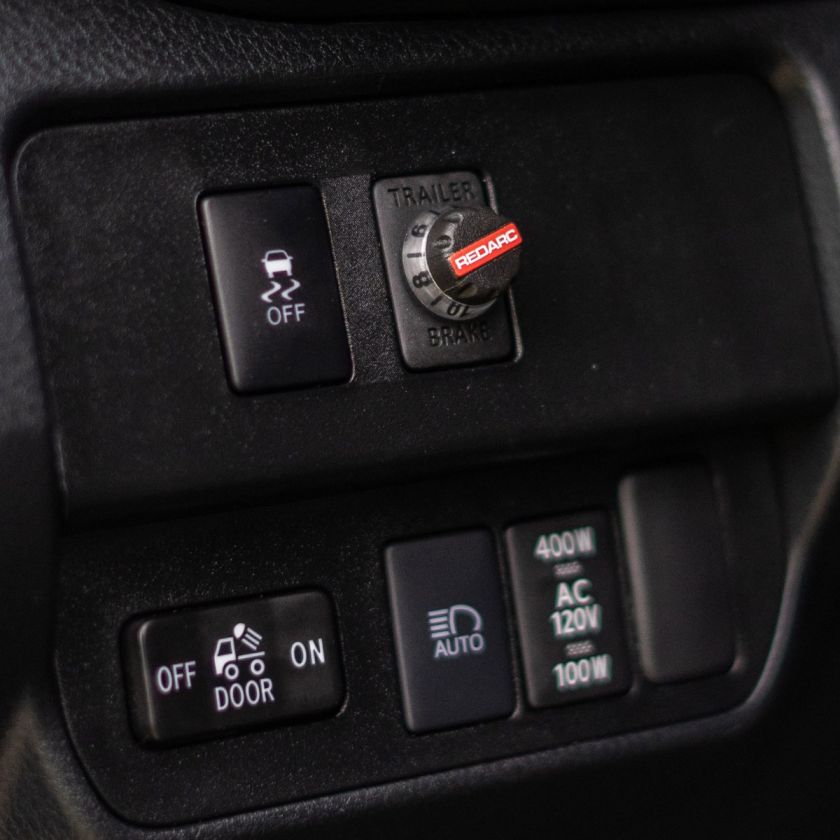

• Dash-Mounted Remote Head For A Perfect Factory Look
• Active Calibration
• Suitable For 12 Volt And 24 Volt System
• Operates Electric And Electric-Over-Hydraulic Brakes
• Dexter And Tucson Sway Control System Approved
• Good For Trailers With 1 To 3 Axles
• Fault Code Detection; Federal Motor Vehicle Safety Standards Compliant For Head Impact In Case Of Accident

Specifications

• Manufacturer: Redarc
• Manufacturer Part Number: EBRH-ACCV3-NA
• Accommodated Number Of Trailer Axles: 1 To 3 Axles
• Type: Proportional
• Brake Systems Type: 2 To 6 Brake System
• Reverse Function: Not Functional In Reverse
• Leveling: Manual
• Smart Technology Compatible: No
• Display: LED Indicator
• With Trailer Disconnect Alarm: No

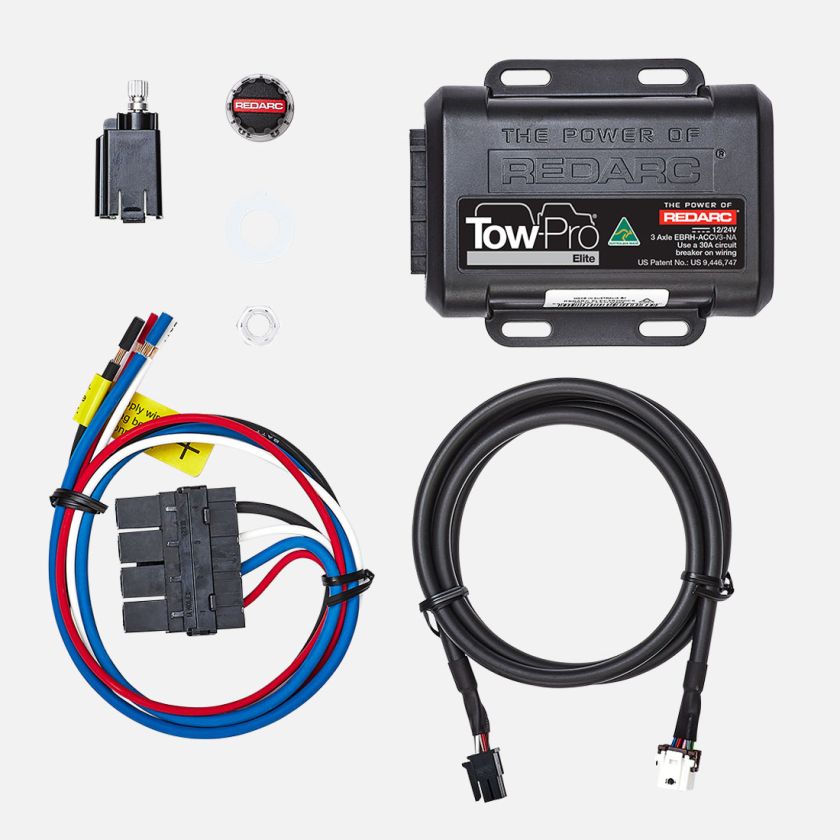

• With Wiring Harness: Yes
• Estimated Install Time (Hours): 1

Technical Documents

• EBRH-ACCV3-NA_Manual_English.pdf
• EPDK-Tow-Pro_Installation_Guide_English.pdf
• REDARC_General_Product_Warranty_NA_English.pdf
• Tow-Pro_Elite_Brochure_NA_English.pdf
