Maintain balanced charging in 24 Volt systems with advanced technology.

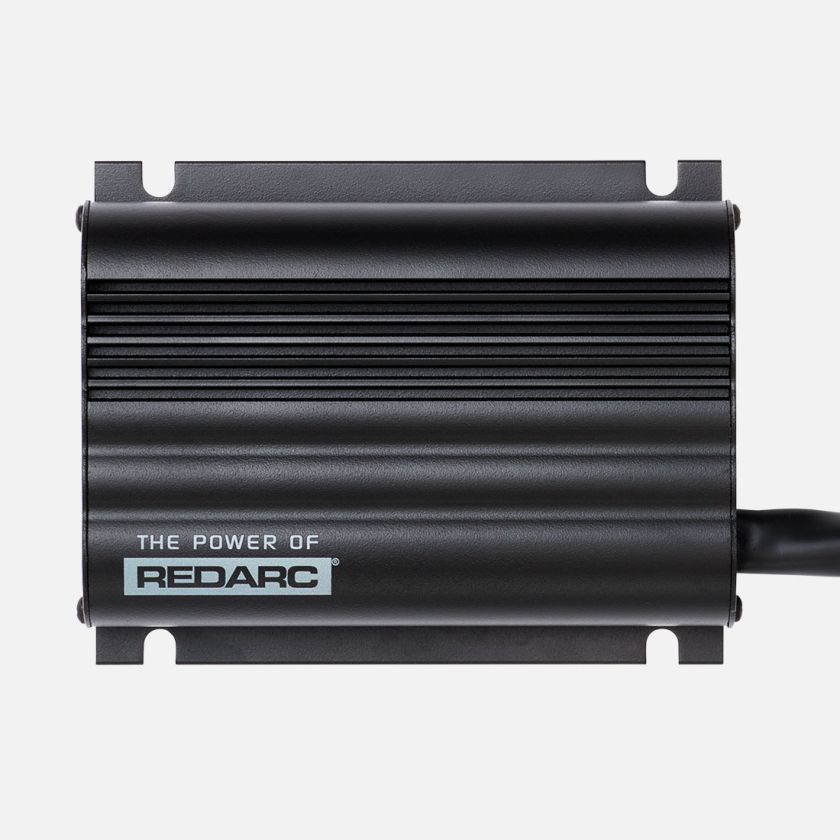

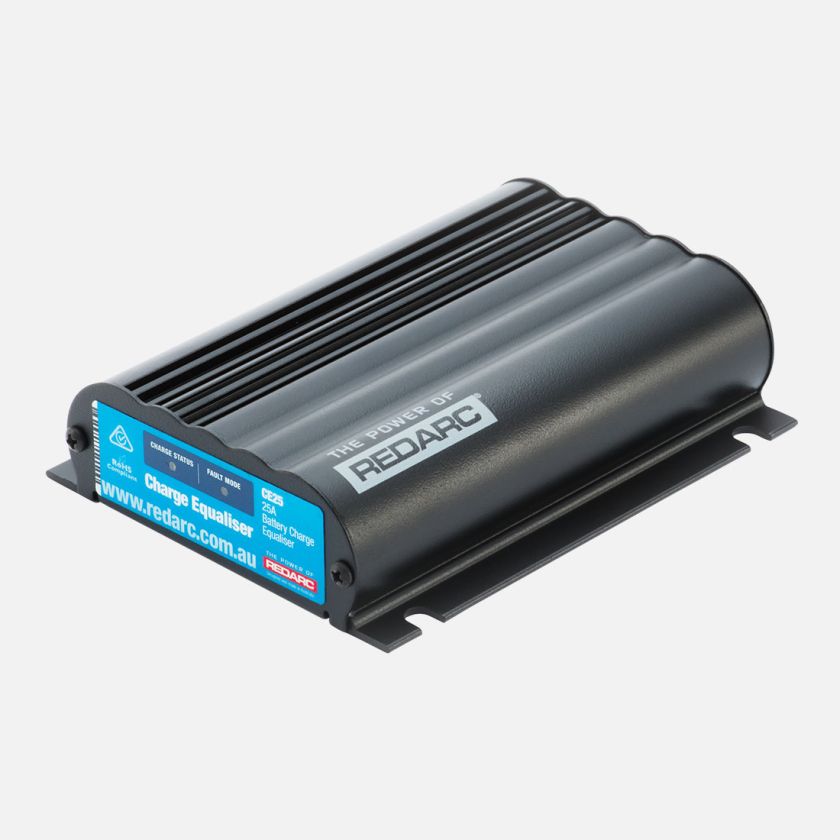

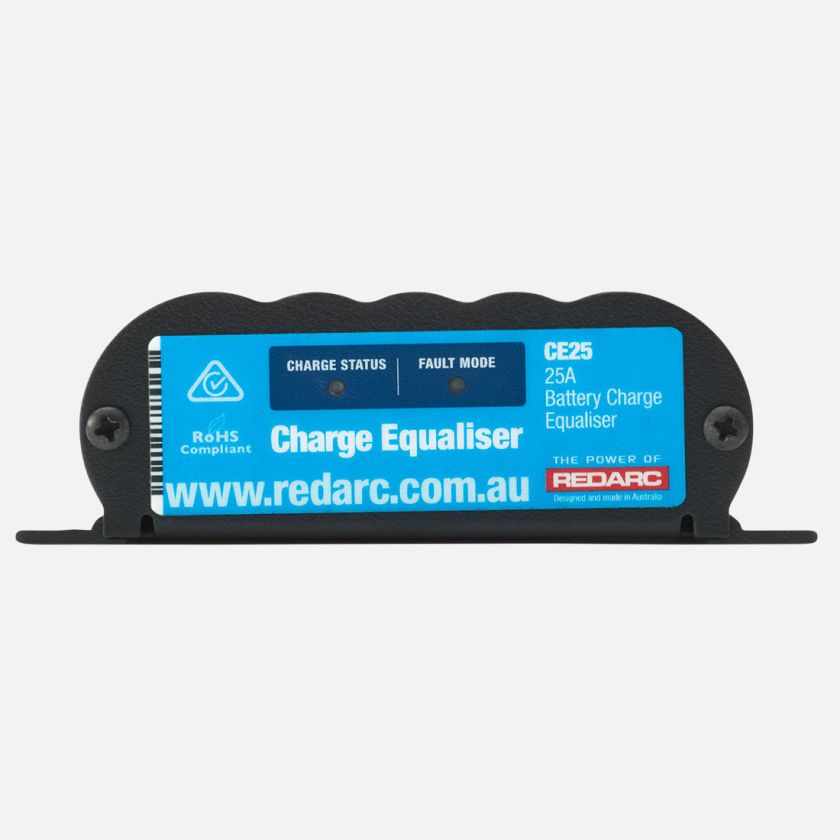

The Redarc Battery Charge Equalizer is designed to ensure that batteries in a 24 Volt system remain equally charged, enhancing the longevity and performance of the battery setup. This device allows for 12 Volts to be accessed from the center of a series-connected two-battery system, eliminating the need for a separate 12 Volt battery. With a continuous output current of 25 Amps, it provides a reliable power source while maintaining optimal battery health.
Incorporating technology from the award-winning BCDC range, the Redarc Charge Equalizer features input isolation, which simplifies installation by removing the need for additional relays or isolators. Its high peak current capability and fast transient response make it suitable for loads that require a stable and clean 12 Volt supply. This ensures that the device can handle significant power demands without compromising performance.
The compact design, measuring 150 millimeters in length, 120 millimeters in width, and 37 millimeters in height, makes it suitable for various commercial applications. Additionally, the unit is sealed for durability and features an LED blink status indicator for easy monitoring. With a voltage input range of 20 to 32 Volt DC and an output range of 6 to 16 Volt DC, the Redarc Battery Charge Equalizer is a versatile solution for maintaining battery balance in demanding environments.
Features
- Designed To Keep Your 24 Volt Batteries Equally Charged
- Peak Load Currents Are Limited Only By The Battery
- High Peak Current Capability
- Fast Transient Response
- Sealed And Suited For Commercial Applications
Specifications
- Manufacturer: Redarc
- Manufacturer Part Number: CE25
- Length: 150 Millimeter
- Width: 120 Millimeter
- Height: 37 Millimeter
- Voltage Rating: 20 To 32 Volt DC Input/ 6 To 16 Volt DC
- Ampere Rating: 25 Amp
- Fuse Rating: 40 Amp Input/ Output
- With LED Indicator: Yes
