ReadyLIFT MAX3.3 Suspension System (MPN: 43-19642)

Experience enhanced performance and control with a 6 inch lift kit.

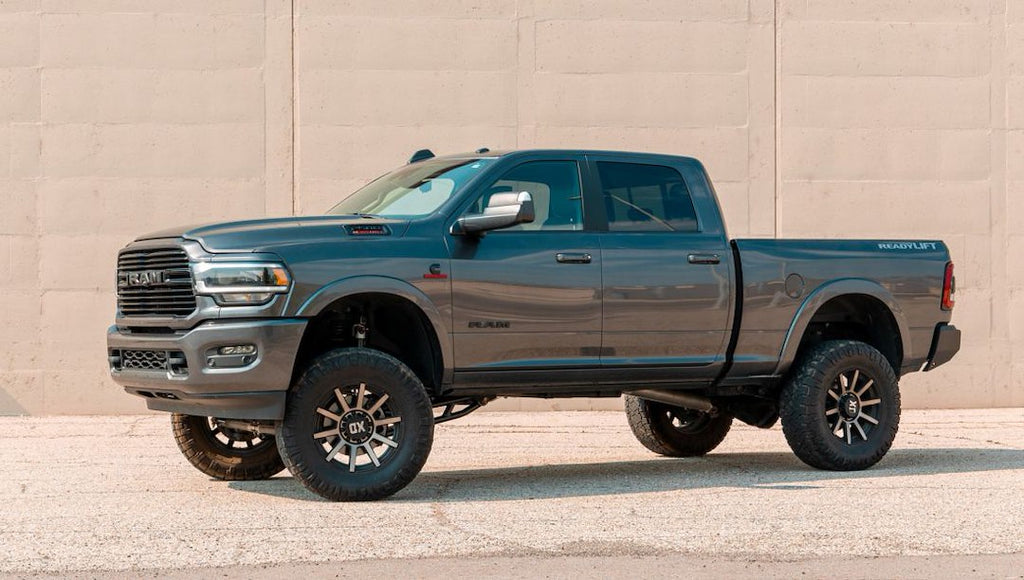

The ReadyLIFT MAX3.3 Suspension System is engineered to provide a 6 inch lift for the Ram 1500, enhancing both performance and capability. This system features advanced Falcon 3.3 series struts and shocks, designed for optimal handling across various terrains. The adjustable dampers allow for precise tuning, accommodating different driving conditions and preferences. With heavy-duty components such as DOM tube steel upper control arms and robust steel skid plates, this suspension system ensures durability and reliability under demanding conditions.

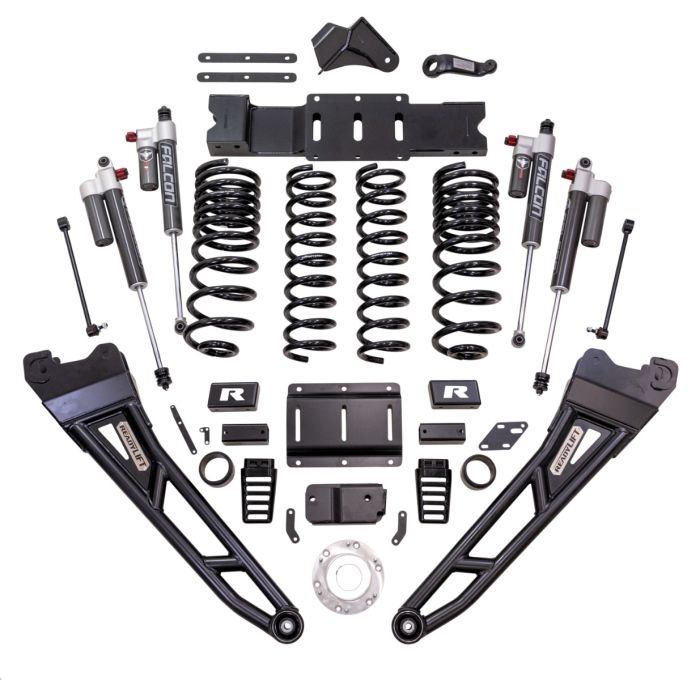

The MAX3.3 system includes front 3.3 Fast Adjust struts paired with rear adjustable piggyback shocks, offering a wide range of adjustability. The innovative design of the shocks improves ride comfort and performance, making it suitable for daily driving, off-road adventures, and towing. This lift kit supports larger tires, accommodating up to 37x12.50 tires on 9 inch wide wheels, enhancing the vehicle's off-road capabilities while maintaining a smooth ride.

Installation is straightforward with included hardware, and the system is designed to maintain proper front-end alignment with HD alignment cam bolts. The combination of features in the ReadyLIFT MAX3.3 Suspension System delivers a remarkable driving experience, making it a valuable addition for those seeking to elevate their vehicle's performance.

Features

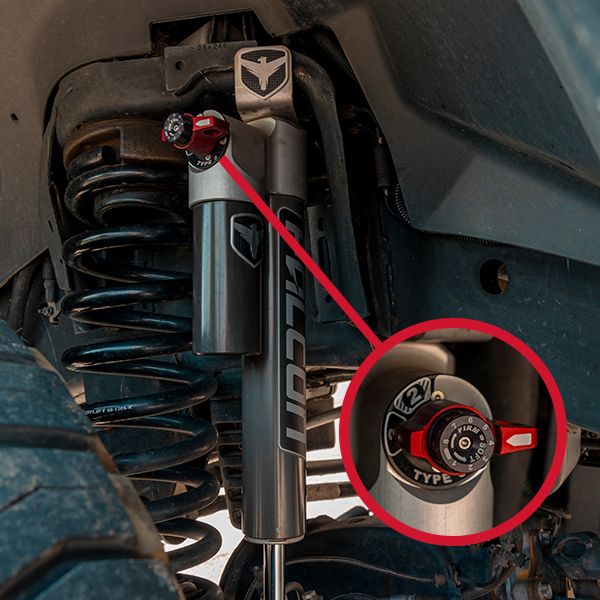

• 3.3 Fast Adjust Dampers Offer A Wide Range Of Adjustability For Specific Terrain And Handling Characteristics With Two Separate Knobs To Tune To Your Preference

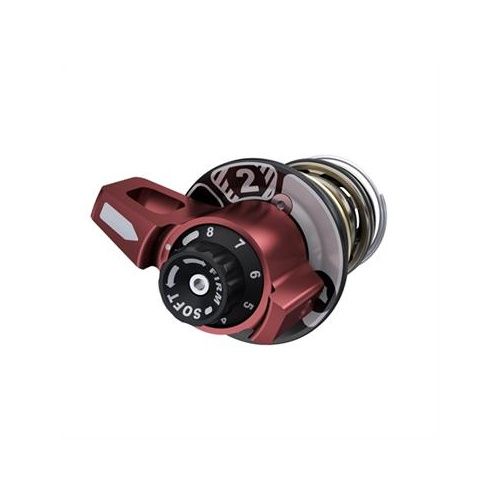

• 3-Position Fast Adjust Knob For Soft, Custom, And Firm Compression, Soft Mode Allows A Partial Bypass Of The Main Piston For A Softer Ride
• 8-Position Micro Adjust Dial Offers Refined Damping Adjustments
• Reservoir Design Increases Nitrogen To Oil Ratio For Consistent Damping Over Wide Temperature Ranges
• Hard Anodized Large Bore 6061-T6 Aluminum Shock Body For Impact And Corrosion Resistance As Well As Increased Oil Volume For Consistent Performance
• DOM Tube Steel Upper Control Arms With Proprietary Heavy-Duty High-Angle Ball Joint
• Heavy-Duty Fabricated Steel Components Utilizing 3/16 And 1/4 Inch Steel Plate
• Full-Coverage Differential Skid Plate Constructed From 3/16 Inch Steel Plate
• Features HD Alignment Cam Bolts For Proper Front-End Alignment

Specifications

• Manufacturer: ReadyLIFT
• Manufacturer Part Number: 43-19642
• Front Lift Amount (IN): 6 Inch
• Rear Lift Amount (IN): 6 Inch
• Maximum Tire Size: 37 x 12.50
• Front Lift Type: Coil Spring
• Rear Lift Type: Coil Spring
• Shock Type: Nitro Gas Charged
• Wheel Backspacing (IN): 5.7
• Wheel Offset (MM): 18
• Shocks: With Front And Rear Remote Reservoir Dampening Adjustable Shock Absorbers In Kit
• Color: Black

Compatibility / Fit

• 2019-2024 Ram 2500

Technical Documents

• 43-19642.pdf
