Enhance your Ram HD truck's performance with a comprehensive lift kit.
The ReadyLIFT Lift Kit Suspension is designed to elevate the performance and capability of Ram HD trucks. This kit features a 6 inch front lift and a 3.5 inch rear lift, providing a balanced stance and improved ground clearance. Included in the kit are high-quality components such as Bilstein shock absorbers, front coil springs, and radius arm drop brackets, ensuring a smooth ride both on and off the road.
To address driveline angle sensitivity, the kit incorporates a CNC-machined billet aluminum transfer case clocking ring, which repositions the transfer case pinion angle. This innovative Driveline Indexing System (DIS) minimizes vibrations that can occur after lifting, enhancing the overall driving experience. The kit also includes heavy-duty fabricated steel track bar brackets and a dropped cast iron pitman arm, contributing to the durability and stability of the suspension system.
With the ReadyLIFT Lift Kit Suspension, users can expect a comprehensive solution that includes all necessary installation hardware and components. The kit is engineered for maximum performance, accommodating tire sizes up to 37 x 13.50 inches. This lift kit not only improves the aesthetic appeal of the vehicle but also enhances its off-road capabilities.

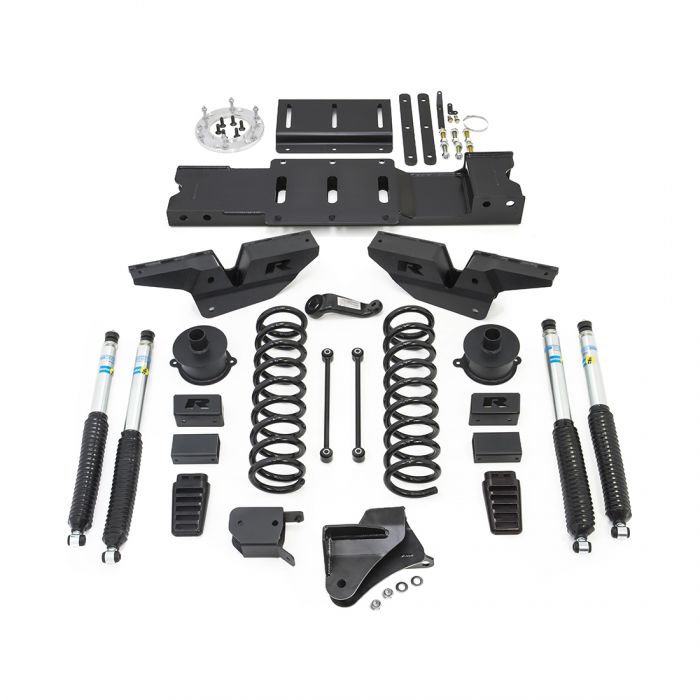

Features
- 6 Inch Lift Front Springs
- 3.5 Inch Lift Rear Springs
- Radius Arm Drop Brackets
- Pitman Arm
- Bump Stops And Extensions
- Front Sway Bar Spacers
- Rear Sway Bar End Links
- Front Track Bar Relocation Bracket
- Transmission Crossmember
Specifications
- Manufacturer: ReadyLIFT
- Manufacturer Part Number: 49-1961
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 3-1/2 Inch
- Maximum Tire Size: 37 x 13.50
- Front Lift Type: Coil Springs
- Rear Lift Type: Coil Spring Spacer
- Shock Type: Monotube
- Wheel Backspacing (IN): 4.54
- Wheel Offset (MM): -18
- Shocks: With Shocks In Kit
- Color: Silver
Compatibility / Fit
- 2019-2024 Ram 2500
Technical Documents
