ReadyLIFT Lift Kit Suspension (MPN: 44-3470)

Enhance your vehicle's performance with a 7 inch lift kit.

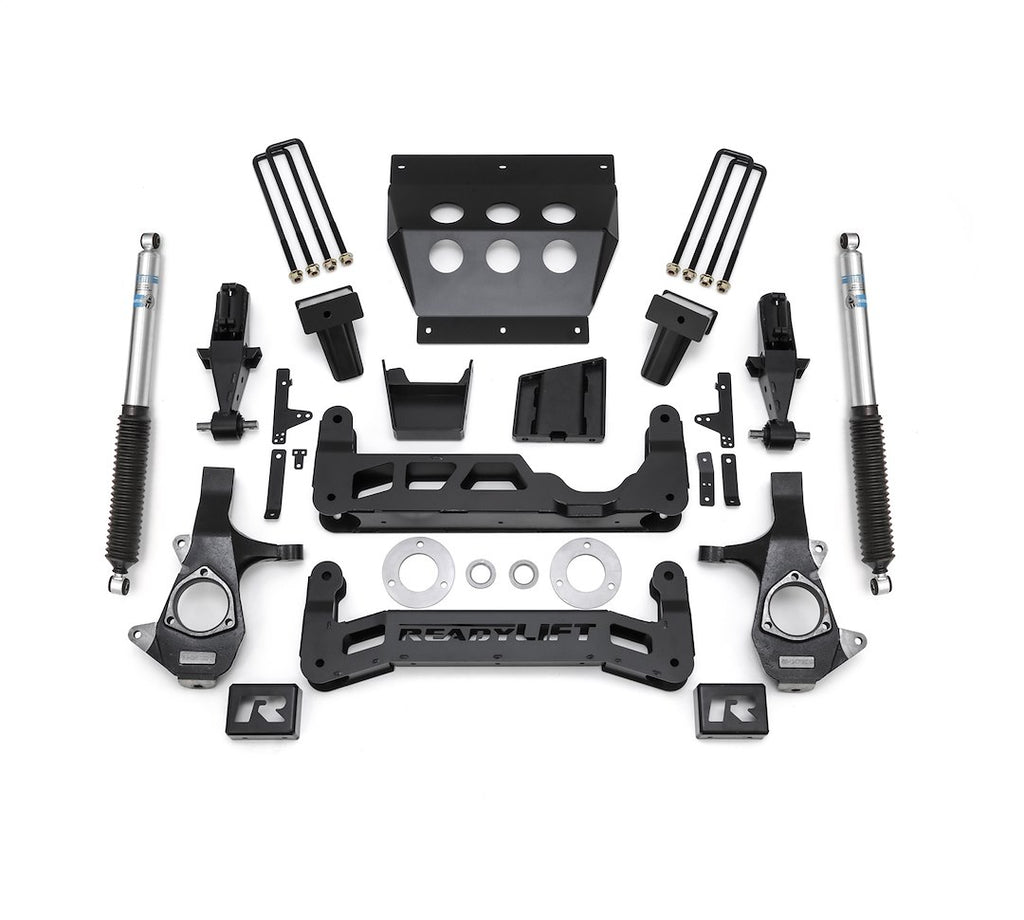

The ReadyLIFT Lift Kit Suspension is engineered to provide a robust 7 inch lift for both the front and rear of your vehicle. This comprehensive kit includes precision-designed laser-cut and CNC formed sub-frame assemblies that ensure a direct bolt-in installation. The custom formed nodular iron knuckles are designed to maintain optimal geometry, enhancing ride quality and handling performance. An integrated differential drop bracket system is included to ensure correct CV axle angles, maximizing performance in 4WD applications.

This lift kit features ReadyLIFT Forged Torsion keys, allowing for adjustable lift from 7 inches to 8 inches while preserving the factory ride characteristics. The rear lift is achieved using OEM quality cast iron blocks that are 5.0 inches tall, ensuring that ride quality is not compromised. Additional components such as tough steel bump stop extensions, a skid plate, and sway bar end links are included to enhance durability and performance.

The design retains the factory turning radius while minimizing track width increase to less than 0.5 inches per side. The boxed steel front and rear cross members, along with the full-width front skid plate, are constructed from thick 3/16 inch plate steel for added strength. The new 1/4-inch boxed plate steel differential drop brackets feature a double gusset and boxed center rib, designed to withstand the torsional twisting of the front differential.

Features

• Retains The Factory Turning Radius While Minimizing Track Width Increase To Less Than 0.5 Inch Per Side
• Boxed Steel Front Or Rear Cross Members And Full Width Front Skid Plate Are Constructed Of Thick 3/16 Inch Plate Steel
• New 1/4-Inch Boxed Plate Steel Differential Drop Brackets Feature A Double Gusset And Boxed Center Rib To Take The Abuse Of Front Differential Torsional Twisting

Specifications

• Manufacturer: ReadyLIFT
• Manufacturer Part Number: 44-3470
• Front Lift Amount (IN): 7 Inch
• Rear Lift Amount (IN): 7 Inch
• Maximum Tire Size: 35
• Front Lift Type: Strut Assembly Extension
• Rear Lift Type: Blocks And U-Bolts
• Wheel Backspacing (IN): 7.20
• Wheel Offset (MM): 12
• Shocks: With Shocks In Kit - Front Shocks Change Not Necessary
• Color: Black Components

Compatibility / Fit

• 2014-2018 Chevrolet Silverado 1500
• 2019-2019 Chevrolet Silverado 1500 LD- Old Model
• 2014-2018 GMC Sierra 1500
• 2019-2019 GMC Sierra 1500 Limited- Old Model

Technical Documents

• 44-3470.pdf
