ReadyLIFT 6 Inch Lift Kit For Ram 3500 (MPN: 49-19630)

Enhance your Ram 3500 with advanced driveline indexing and superior lift performance.

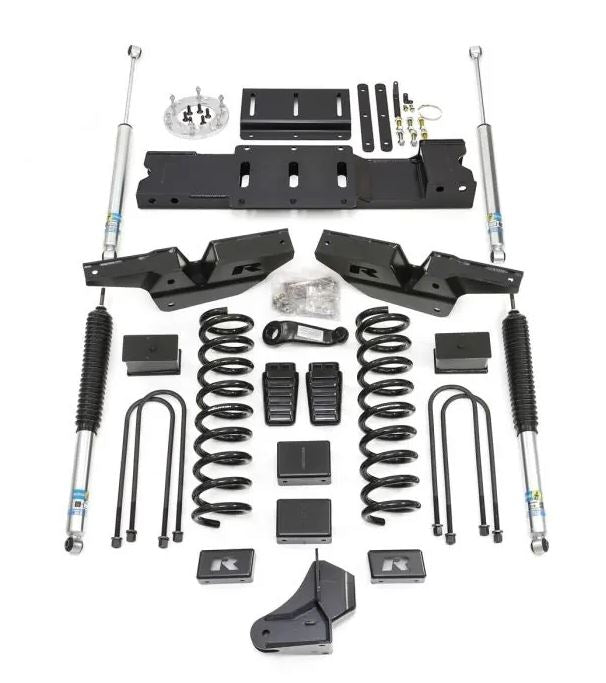

The ReadyLIFT 6 Inch lift kit is engineered specifically for the 5th generation Ram 3500 HD trucks, providing a significant elevation of 6 inches in the front and 5 inches in the rear. This kit incorporates a unique Driveline Indexing System, which includes a CNC-machined billet aluminum transfer case clocking ring and a heavy-duty transmission crossmember. These components work together to optimize driveline angles, reducing the potential for vibrations that can occur after lifting.

Designed to maintain factory suspension geometry, this lift kit allows for a smooth driving experience both on and off-road. The kit includes four Bilstein 5100 Series shocks, which are specifically tuned for the Ram 3500 HD, ensuring optimal performance and comfort. Additionally, the lift kit supports the use of larger tires, accommodating up to 37x13.5 tires on 9-inch wide wheels with a -18 offset, enhancing the truck's off-road capabilities.

Installation is straightforward with all necessary hardware included, and the kit is compatible with the factory turning radius, preventing any rubbing issues when using the recommended wheel and tire sizes. The ReadyLIFT 6 Inch lift kit is a comprehensive solution for those looking to elevate their Ram 3500 while maintaining functionality and performance.

Features

• 6 Inch Front Lift With A 5 Inch Rear Lift For The Perfect Lifted Stance
• Features All-New Driveline Indexing System With Transfer Case Clocking Ring And New Heavy-Duty Transmission Crossmember
• Maintains Factory Turning Radius Without Rubbing When Using The Recommended Wheel And Tire Size
• Maintains Factory Suspension Geometry And Articulation
• Features 4 Bilstein 5100 Series Shocks Tuned Specifically For The Ram 3500 HD
• For Use On The Ram 3500 4WD HD Diesel Standard Output Engine Trucks Only
• Allows For Up To 37x13-1/2 Tires On 9 Inch Wide Wheels With -18 Offset
• Compatibility With Our Indexing Ring From The Transmission To The Transfer Case

Specifications

• Manufacturer: ReadyLIFT
• Manufacturer Part Number: 49-19630
• Front Lift Amount (IN): 6 Inch
• Rear Lift Amount (IN): 5 Inch
• Maximum Tire Size: 37×13.5
• Front Lift Type: Coil Springs
• Rear Lift Type: Leaf Spring Blocks And U-Bolts
• Shock Type: Gas Charged
• Wheel Backspacing (IN): 4.3
• Wheel Offset (MM): -18
• Shocks: With Shocks In Kit
• Color: Black Components/ Silver Shock Absorbers

Compatibility / Fit

• 2019-2024 Ram 3500

Technical Documents

• 49-19630.pdf
