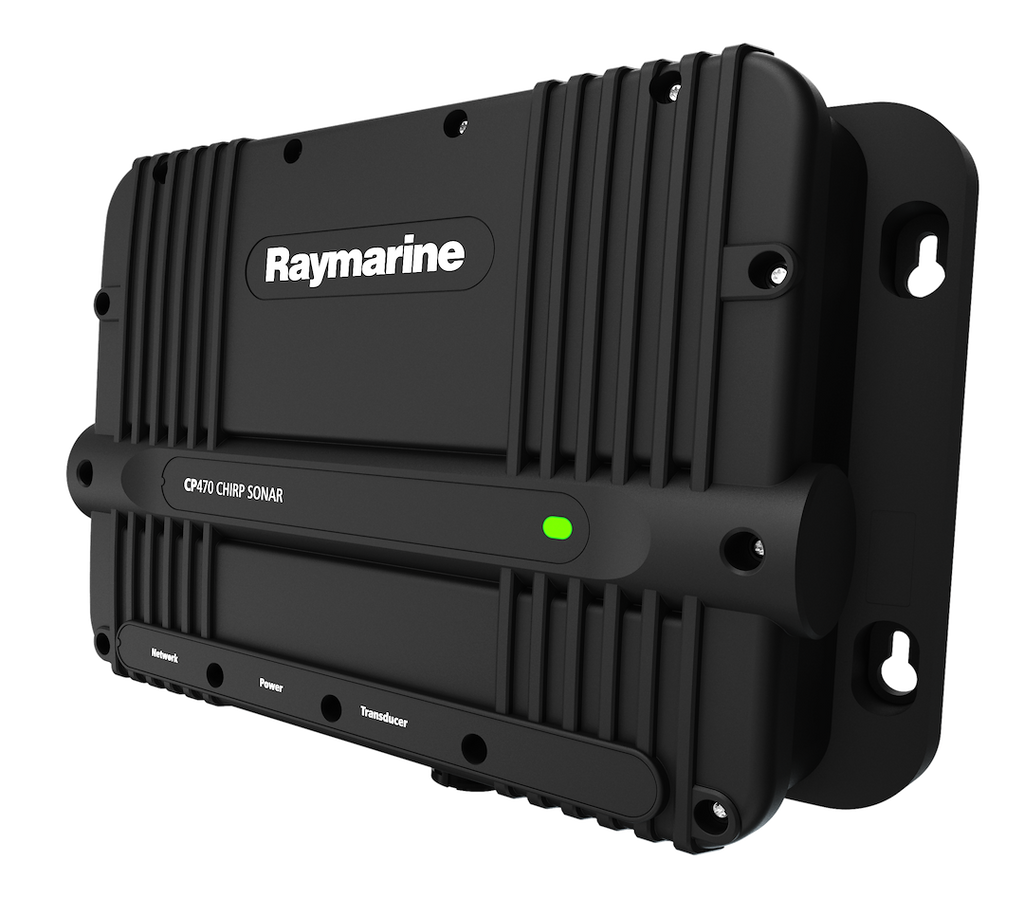

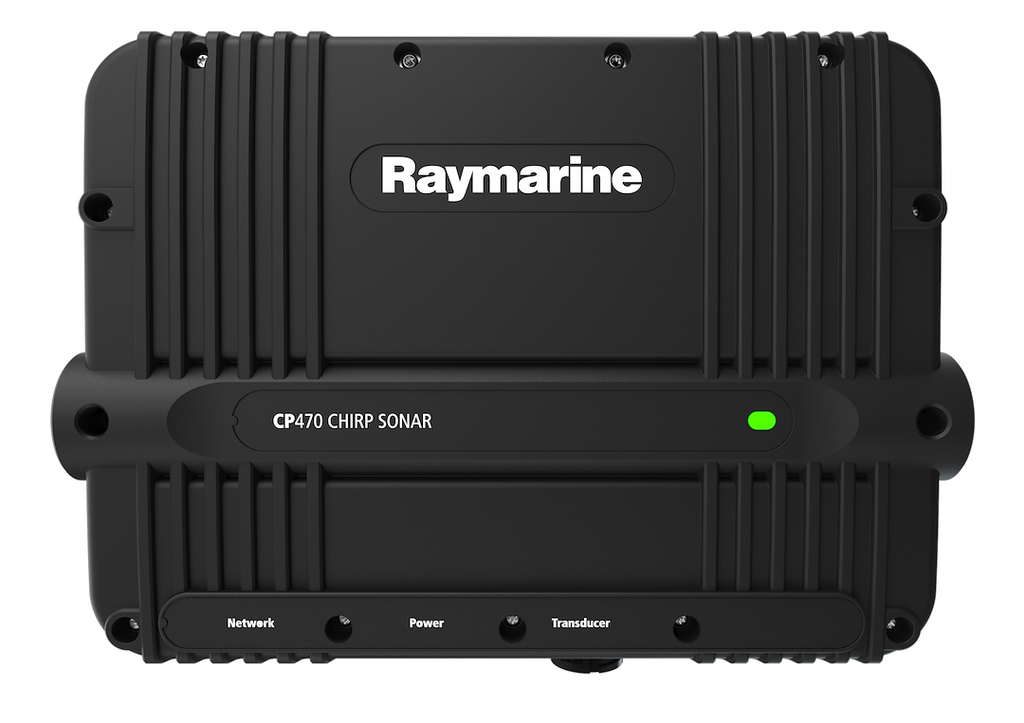

Raymarine Sonar Sounder Module (MPN: E70298)

Advanced CHIRP sonar technology for superior fish finding capabilities.

The Raymarine CP470 sonar sounder module is engineered to provide exceptional fish finding and high-resolution sonar imagery for Raymarine chartplotter displays. Utilizing a wide spectrum of frequencies, this advanced CHIRP transceiver enhances sensitivity, allowing users to see through dense schools of baitfish and accurately identify thermoclines while targeting game fish. Designed for offshore applications, the CP470 effectively filters out unwanted noise, ensuring reliable bottom tracking and clear fish targets even in challenging conditions.

With the capability to operate at depths of up to 10,000 feet, the CP470 features two adjustable CHIRP sonar channels that deliver ten times the resolution of standard sonars. This results in sharper, more defined fish targets, allowing for precise tracking of underwater activity. The TruZoom magnification mode further enhances target detail without compromising resolution, making it easier to identify and track fish.

The module automatically recognizes connected transducers and adjusts sonar parameters for optimized performance, providing flexibility in fishing preferences. Users can view and control each CHIRP channel independently, creating customized full or split screen sonar windows on Raymarine’s LightHouse powered multifunction displays. The CP470 is built to withstand harsh marine environments, with an IPX6 waterproof rating and a wide operating temperature range.

Features

• Superior Target Definition And Enhanced Sensitivity Using Raymarine’s Exclusive Wide Spectrum CHIRP Sonar Technology
• Target Fish, Identify Bait, And Track The Sea Floor Down To 10,000 Feet With Two Adjustable CHIRP Sonar Channels
• With 10 Times The Resolution Of Ordinary Sonars The CP470 Delivers Sharper, More Defined Fish Targets And Automatically Filter Out Unwanted Noise So You Never Miss The Action Below
• TruZoom Magnification Mode Reveals Extra Target Detail Without Any Loss Of Resolution
• Choose Optional Low, Medium, And High CHIRP Frequency Transducers In Standard Or Wide-Beam To Match Your Fishing Preferences
• Automatically Recognizes Connected Transducers And Adjust Sonar Parameters For Optimized Performance
• View And Control Each CHIRP Channel Independently And Create Your Own Combination Of Full Or Split Screen Sonar Windows On Raymarine’s LightHouse Powered Multifunction Displays

Specifications

• Manufacturer: Raymarine
• Manufacturer Part Number: E70298
• Size: 11-13/16 Inch Length X 8 Inch Width X 3-5/16 Inch Height
• Frequency: 25 To 255 kHz
• With Transducer: No
• Input Voltage: 12 To 24 Volt
• Temperature Range: -4 Degree Fahrenheit To 122 Degree Fahrenheit
• Waterproof: IPX6 Rating Waterproof
• Includes: With Power Cable/ Cable Ferrite/ Fixings Screws/ Network Cable/ Additional Ground Wire Kit
