Comprehensive wind, speed, and depth data for sailors.

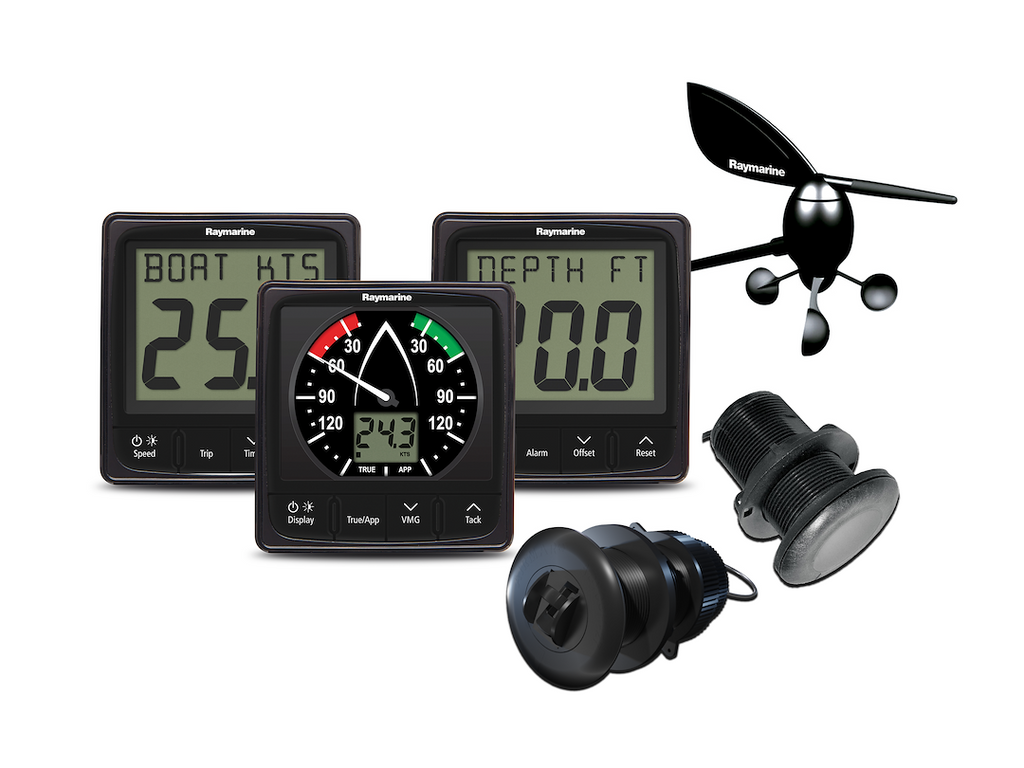

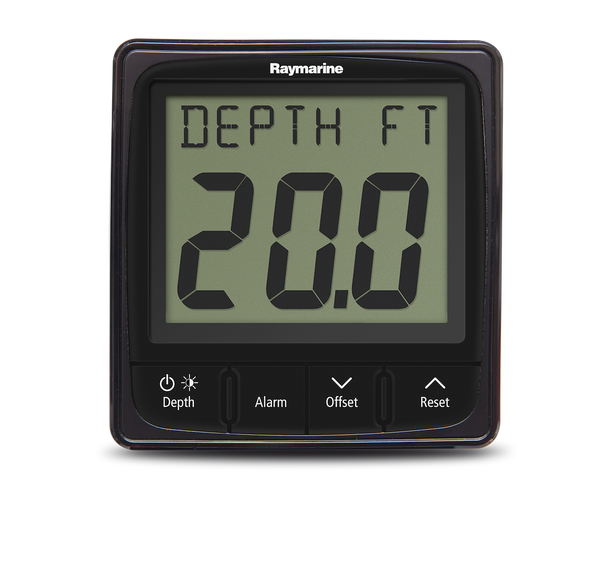

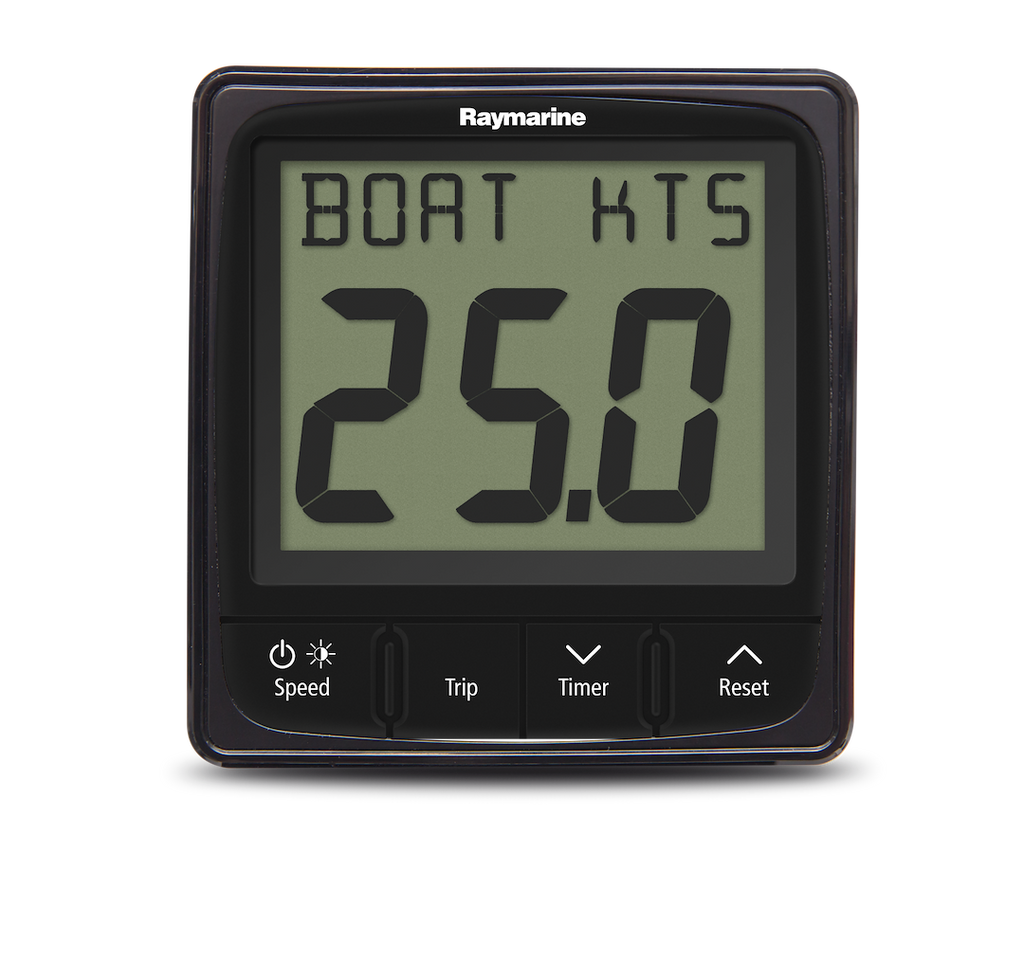

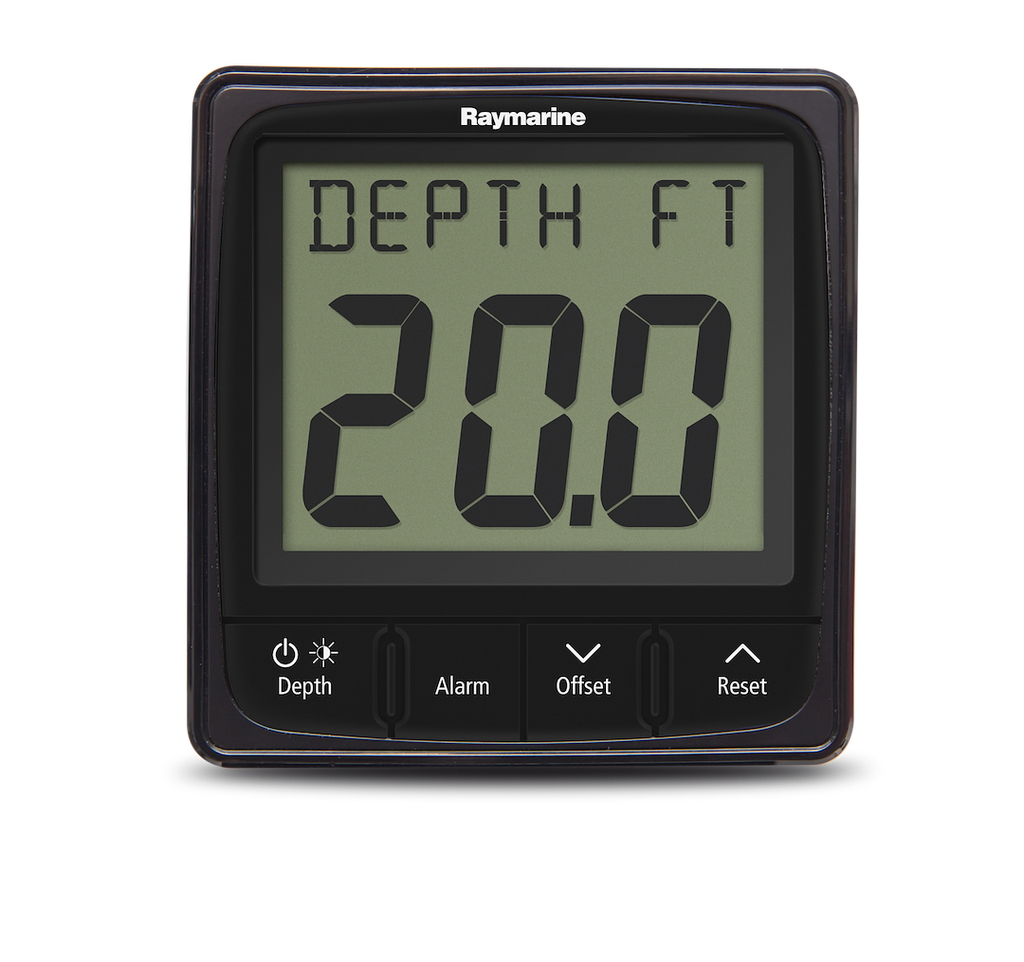

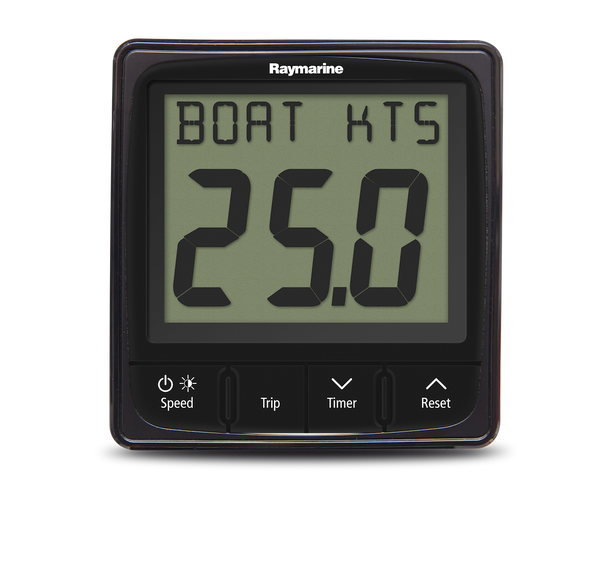

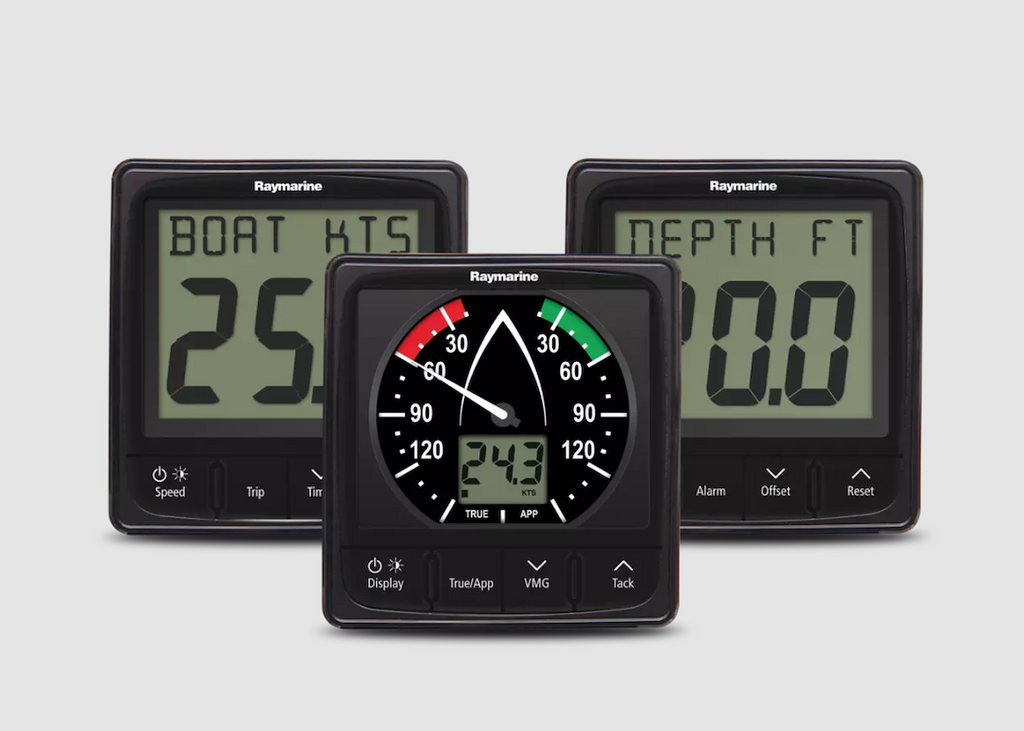

The Raymarine Sailboat Instrument Kit combines essential wind, speed, and depth measurement tools into one efficient package. This kit includes the i50 Speed, i50 Depth, and i60 Wind multi-function displays, along with necessary transducers for accurate data collection. Each instrument features a high-contrast LCD display with oversized digits, ensuring visibility in various lighting conditions. The red backlighting enhances readability at night, making it easier for sailors to monitor critical information during evening hours.
Designed for ease of use, the kit incorporates simple push-button controls that allow quick access to all data displays. The instruments are compatible with Seatalkng, NMEA2000, and Seatalk networks, facilitating seamless integration with existing marine systems. With a compact footprint and low power consumption, the Raymarine Sailboat Instrument Kit is engineered for reliability and efficiency on the water.
The kit is built to withstand harsh marine environments, featuring an IPX6 waterproof rating and an operational temperature range of -13 to 131 degrees Fahrenheit. Installation is straightforward, thanks to the included Seatalkng cabling kit, and the option for surface or trunnion mounting provides flexibility in setup. This instrument pack is a valuable addition for sailors seeking accurate and reliable performance.
Features
- Depth, Speed And Wind Instruments And Transducers Provided
- Features Seatalkng Cabling Kit For Easy Installation
- I50 Instruments Offer Oversized Digits For Easy Viewing By Day Or Night

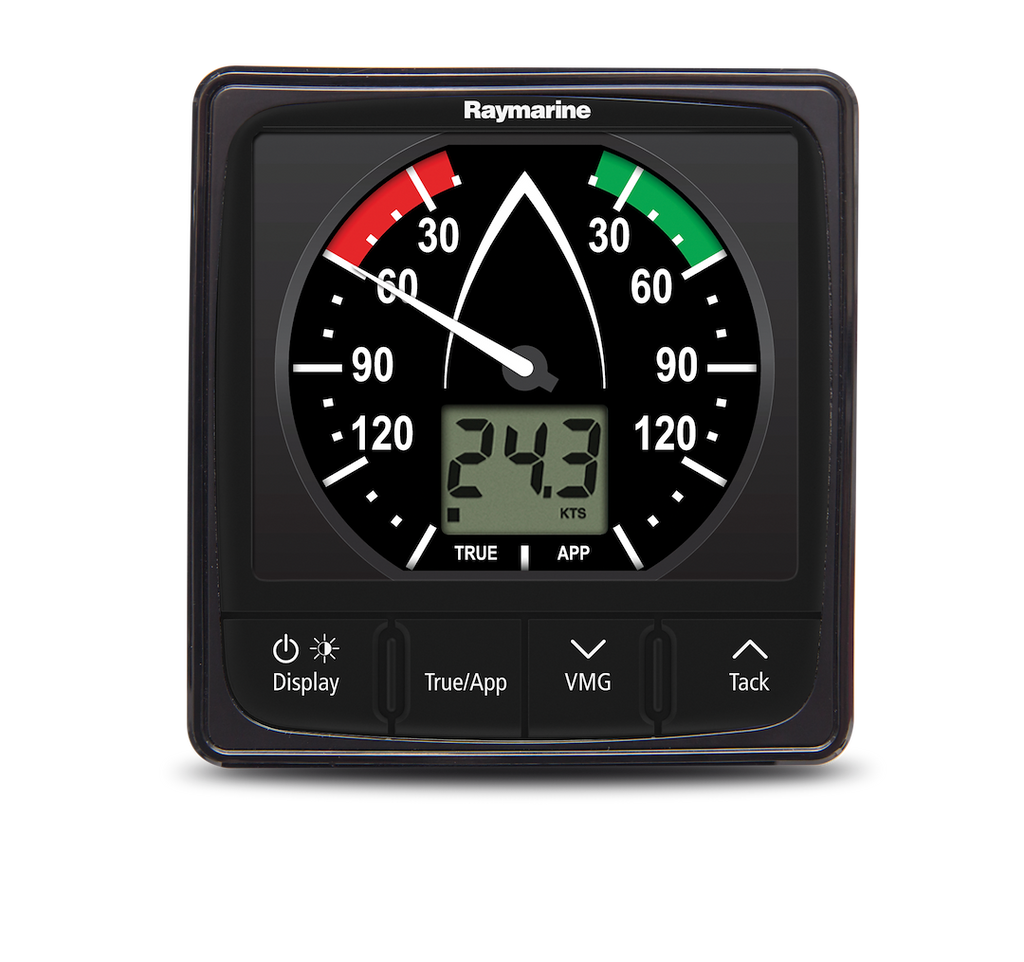

- I60 Wind With Analog Angle Indicator And LCD Speed Readout
- Red Backlighting Enhances Night Visibility
- Seatalkng, NMEA2000 And Seatalk Network Compatible
- Compact Footprint
- Low Power Consumption
- Surface Mount Or Optional Trunnion Mount Kit
Specifications
- Manufacturer: Raymarine
- Manufacturer Part Number: T70584
- Mounting Style: Surface Mount
- Display Type: LCD
- With Transducer: Yes
- Operational Temperature Range: -13 To 131 Degree Fahrenheit
- Voltage Rating: 12 Volt
- Power Usage: 2.4 Watt For Transducer/ 1 Watt For Display
- Boat Speed: No
- Coarse Information: No
- Multi Language: No
- Race Timer: No
- Time: No
- Water Current: Yes
- Water Depth: Yes
- Water Temperature: Yes
- Wind Direction: Yes
- Wind Speed: Yes
- Wind Sensor Cable Length: Without Cable
- Wind Instrument Display Size: 4.22 Inch Width X 4.52 Inch Height X 1.73 Inch Depth
- NMEA 2000 Certified: Yes
- Waterproof Rating: IPX6 Waterproof
- Includes: With i50 Speed/ i50 Depth/ i60 Wind Multi Function Display/ Short Arm Wind Transducer
