Comprehensive marine data with advanced display technology.
The Raymarine Sailboat Instrument Kit is designed to provide essential wind speed, depth, and temperature information for recreational boating and light commercial marine applications. Featuring a 3.6 inch LCD display, this instrument kit operates efficiently with a power consumption of less than 1 watt for the display and a maximum of 2.4 watts when the transducer is connected. It is compatible with a wide range of current and legacy speed instruments, ensuring versatility in various marine environments.

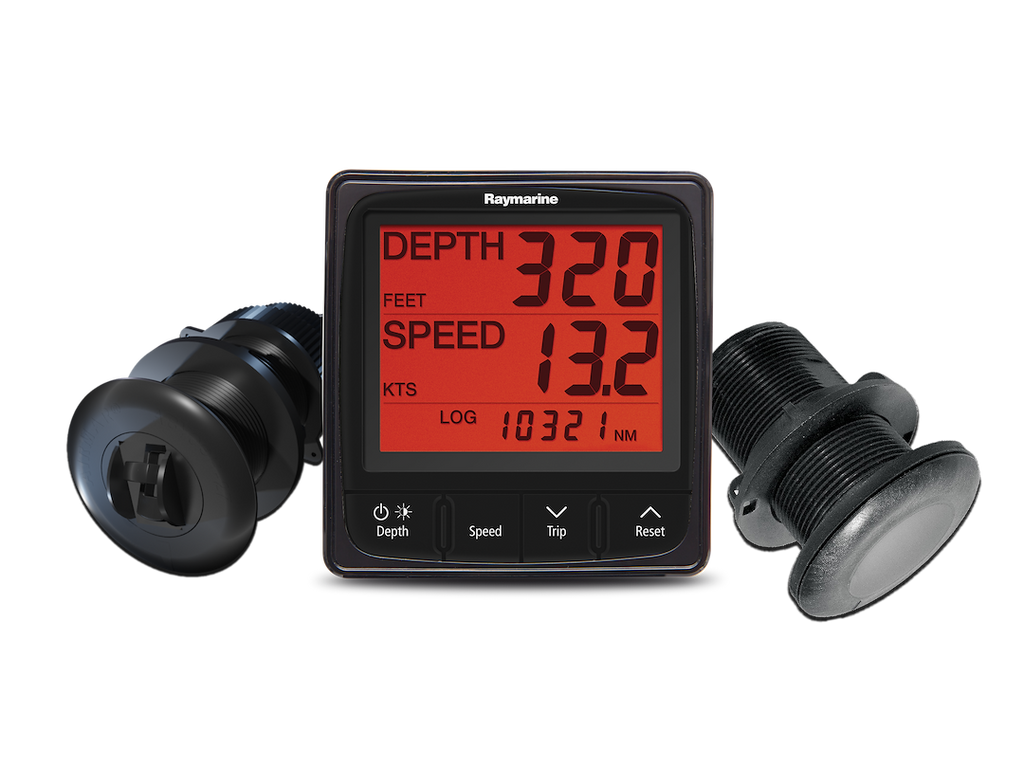

Engineered for durability, the kit includes the i50 multi-function display along with ST900, P120, and P319 speed, temperature, and depth thru-hull transducers. The Gen2 paddlewheel technology offers a best-in-class speed range from 0.3 to 45 knots, making it suitable for a variety of boating conditions. The retractable insert with valve minimizes water ingress in the bilges when the sensor is removed, facilitating easy storage and maintenance.
With a low profile housing that sits nearly flush with the hull, the Raymarine Sailboat Instrument Kit is designed to withstand the tough marine environment while providing reliable performance. It operates within a voltage range of 10 to 16 volts and is NMEA 2000 certified, ensuring seamless integration with other marine electronics. This instrument kit is waterproof rated at IPX6, making it a robust choice for any sailor.
Features

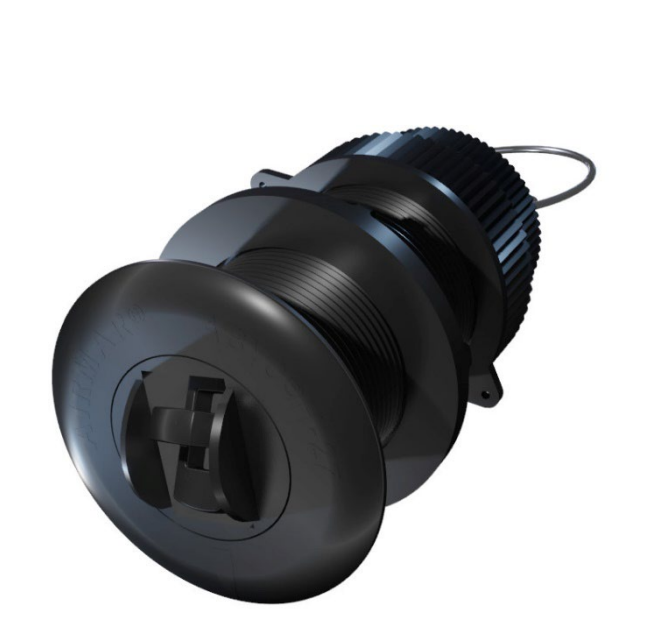

- Gen2 Paddlewheel - Best-In-Class Speed Range From 0.3 To 45 Knots
- Compatible With The Widest Range Of Current And Legacy Speed Instruments Needing An Analog Transducer
- Retractable Insert With Valve - Minimize Water Ingress In The Bilges When The Sensor Is Removed For Storage Or Routine Cleaning And Maintenance Of The Paddlewheel
- Low Profile Housing - Outer Housing Sits Nearly Flush With The Hull
Specifications
- Manufacturer: Raymarine
- Manufacturer Part Number: T70582
- Mounting Style: Surface Mount
- Display Type: LCD
- With Transducer: Yes
- Operational Temperature Range: -13 To 131 Degree Fahrenheit
- Voltage Rating: 10 To 16 Volt
- Power Usage: 2.4 Watt
- Boat Speed: Yes
- Coarse Information: No
- Multi Language: No
- Race Timer: No
- Time: No
- Water Current: No
- Water Depth: Yes
- Water Temperature: No
- Wind Direction: No
- Wind Speed: Yes
- Wind Sensor Cable Length: Without Cable
- NMEA 2000 Certified: Yes
- Waterproof Rating: IPX6 Waterproof
Technical Documents
