Raymarine Sailboat Instrument Kit (MPN: E70150)

Advanced wind data display for sailing and powerboats.

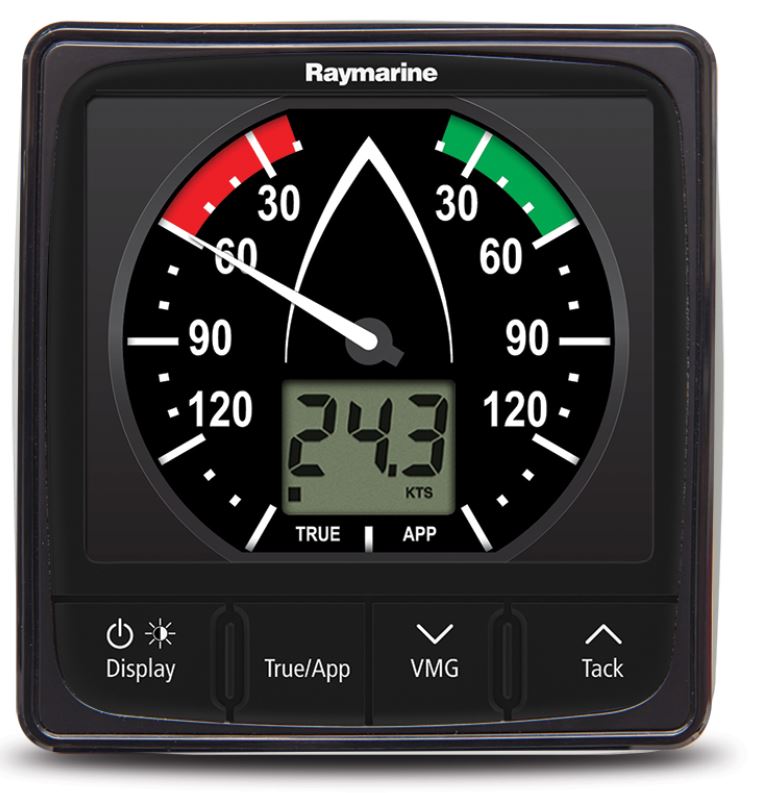

The Raymarine i60 Wind instrument display is designed to provide both analogue and digital data regarding true wind speed and angle, making it an essential tool for sailors and powerboat operators. Featuring a 2.5 inch high-contrast LCD display, it ensures clear visibility of critical information under various lighting conditions, enhanced by red backlighting for night use. The instrument supports local and group dimming control, allowing users to adjust brightness across multiple devices seamlessly.

Engineered for versatility, the i60 can function as a Master display with its own transducer or as a Repeater display, integrating easily with Raymarine's autopilots and navigation systems. Its compact design and low power consumption make it suitable for a range of vessels, while the IPX6 waterproof rating ensures durability in harsh marine environments. The built-in wind transducer interface accommodates traditional or Rotavecta masthead units, providing reliable wind direction and speed data.

With features such as an analogue needle display for wind angle and colorized segments for close-hauled wind angles, the i60 delivers comprehensive wind information. It is compatible with SeaTalkng and NMEA2000 networks, making it adaptable to various marine setups. The instrument's surface mount design allows for easy installation, ensuring that sailors can access vital wind data quickly and efficiently.

Features

• Analog Needle Display Reports Relative Wind Angle From 000 Degree To 180 Degree
• Colorized Port And Starboard Segments Call Out Close-Hauled Wind Angles
• High Contrast LCD For Wind Speed, Beaufort, Max Wind, VMG, And Tack Angle Reporting
• Red Backlighting Enhances Night Visibility
• Seatalkng, NMEA2000 And Seatalk Network Compatible
• Built-In Wind Transducer Interface For Traditional Or Rotavecta Masthead Units
• Compact Footprint
• Low Power Consumption
• Surface Mount Or Optional Trunnion Mount Kit

Specifications

• Manufacturer: Raymarine
• Manufacturer Part Number: E70150
• Mounting Style: Surface Mount
• Display Type: LCD
• With Transducer: Yes
• Operational Temperature Range: -13 To 131 Degree Fahrenheit
• Voltage Rating: 12 Volt
• Power Usage: 2.4 Watt
• Boat Speed: No
• Coarse Information: No
• Multi Language: No
• Race Timer: No
• Time: No
• Water Current: No
• Water Depth: No
• Water Temperature: No
• Wind Direction: Yes
• Wind Speed: Yes
• Wind Sensor Cable Length: Without Cable
• Wind Instrument Display Size: 4.22 Inch Width X 4.52 Inch Height X 1.7 Inch Depth
• NMEA 2000 Certified: Yes
• Waterproof Rating: IPX6 Waterproof
• Includes: With Short Arm Wind Vane Transducer/ With Wind Transducer Interface/ Sun Cover/ Front Bezel/ Gaske

Technical Documents

• 23-0405-MAR_FLIR-Raymarine_Datasheet_Multifunction_Displays.pdf
