Raymarine Sailboat Instrument Kit (MPN: E70061)

Advanced wind instrument with analog and digital displays for sailing

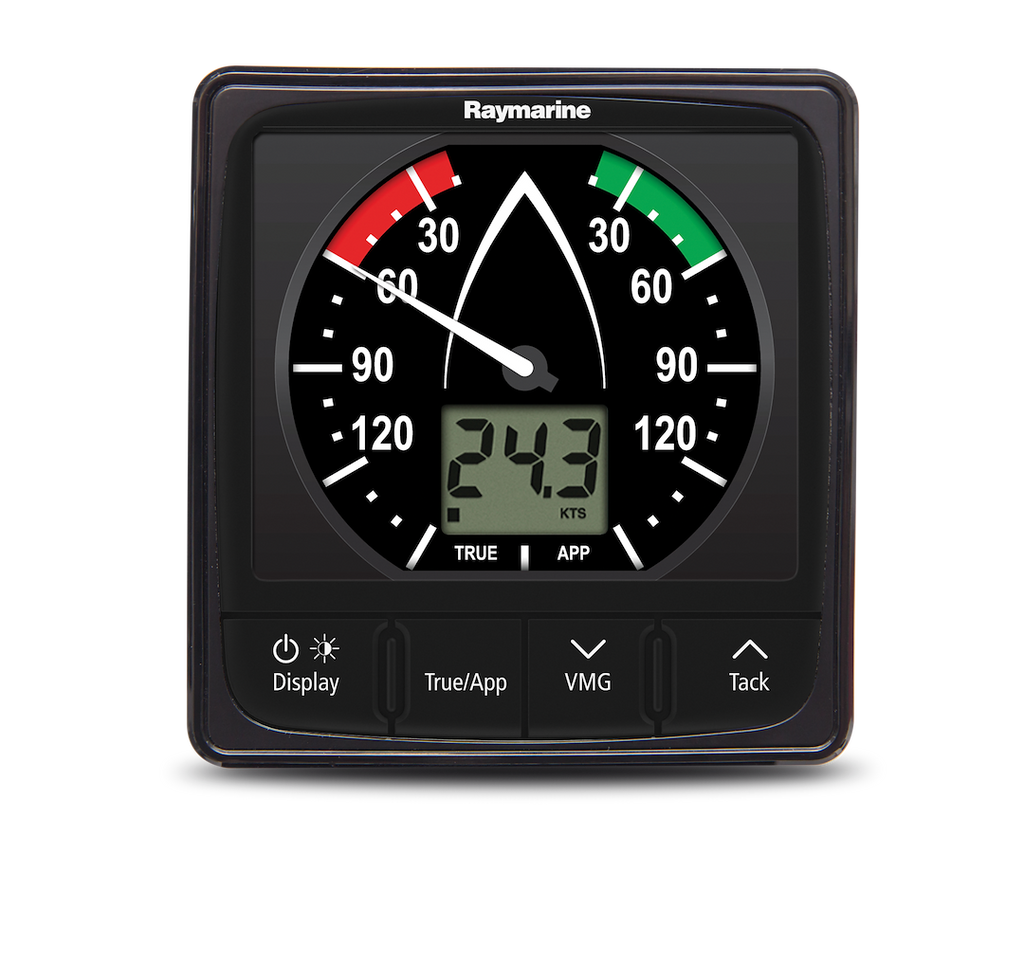

The Raymarine i60 Wind instrument display is designed to provide sailors with accurate and essential data regarding true wind speed and angle. Featuring a 2.5 inch high-contrast LCD display, it presents wind speed readings clearly while an analog needle gauge indicates wind angle, ensuring easy interpretation of critical sailing information. This instrument is suitable for both sailing vessels and powerboats, enhancing navigation capabilities with its robust performance and reliability.

Engineered for optimal visibility, the i60 includes red backlighting for night use and supports local and group dimming control, allowing users to adjust brightness across multiple devices. The instrument is compatible with SeaTalkng and NMEA2000 networks, facilitating seamless integration with Raymarine autopilots and other navigation equipment. Its compact design and low power consumption make it an efficient choice for any marine setup.

The i60 Wind instrument also features a built-in wind transducer interface, accommodating traditional or Rotavecta masthead units. With a waterproof rating of IPX6, it is built to withstand harsh marine environments. The kit includes essential mounting accessories such as a sun cover, front bezel, gasket, and SeaTalkNG spur cable, ensuring a complete installation for immediate use.

Features

• Analog Needle Display Reports Relative Wind Angle From 000 Degree To 180 Degree
• Colorized Port And Starboard Segments Call Out Close-Hauled Wind Angles
• High Contrast LCD For Wind Speed, Beaufort, Max Wind, VMG, And Tack Angle Reporting
• Red Backlighting Enhances Night Visibility
• Seatalkng, NMEA2000 And Seatalk Network Compatible
• Built-In Wind Transducer Interface For Traditional Or Rotavecta Masthead Units
• Compact Footprint
• Low Power Consumption
• Surface Mount Or Optional Trunnion Mount Kit

Specifications

• Manufacturer: Raymarine
• Manufacturer Part Number: E70061
• Mounting Style: Surface Mount
• Display Type: LCD
• With Transducer: No
• Operational Temperature Range: -13 To 131 Degree Fahrenheit
• Voltage Rating: 12 Volt
• Power Usage: 2.4 Watt
• Boat Speed: No
• Coarse Information: No
• Multi Language: No
• Race Timer: No
• Time: No
• Water Current: No
• Water Depth: No
• Water Temperature: No
• Wind Direction: No
• Wind Speed: Yes
• Wind Sensor Cable Length: Without Cable
• Wind Instrument Display Size: 4.22 Inch Width X 4.52 Inch Height X 1.7 Inch Depth
• NMEA 2000 Certified: Yes
• Waterproof Rating: IPX6 Waterproof
• Includes: With Sun Cover/ Front Bezel/ Gasket/ 15.7 Inch SeaTalkNG Spur Cable/ SeaTalkNG Blanking Plug
