Advanced marine communication with AIS and GPS capabilities.

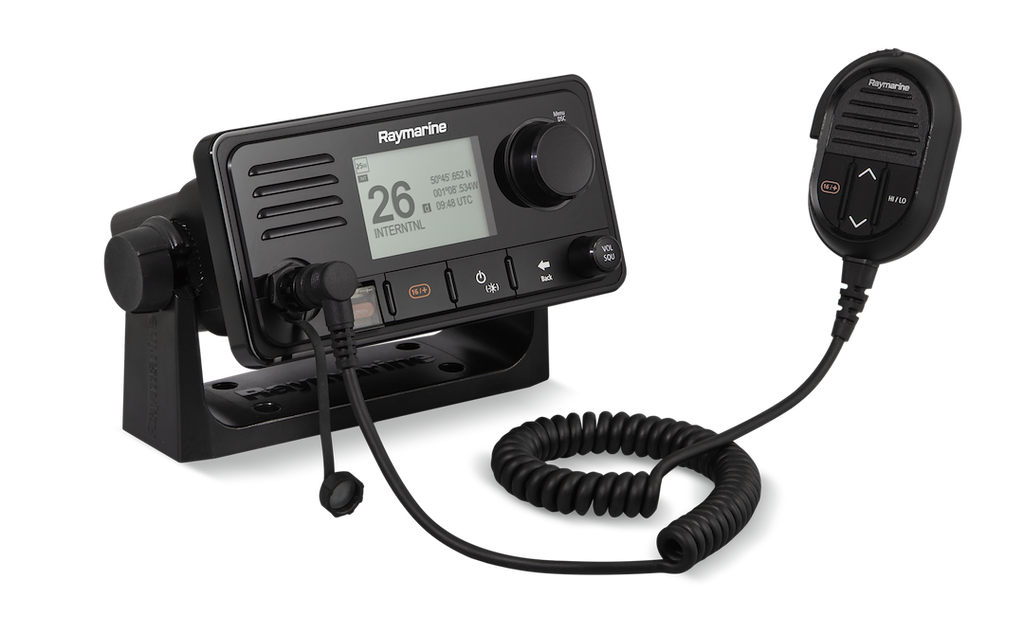

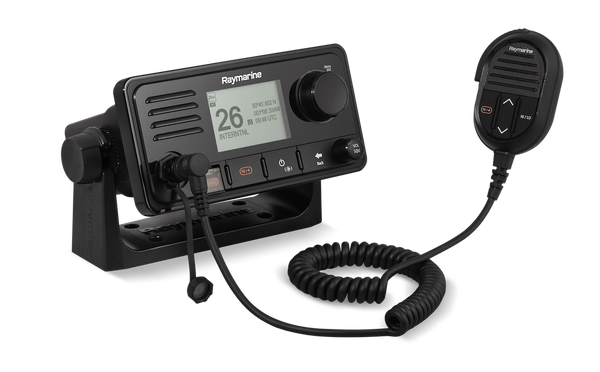

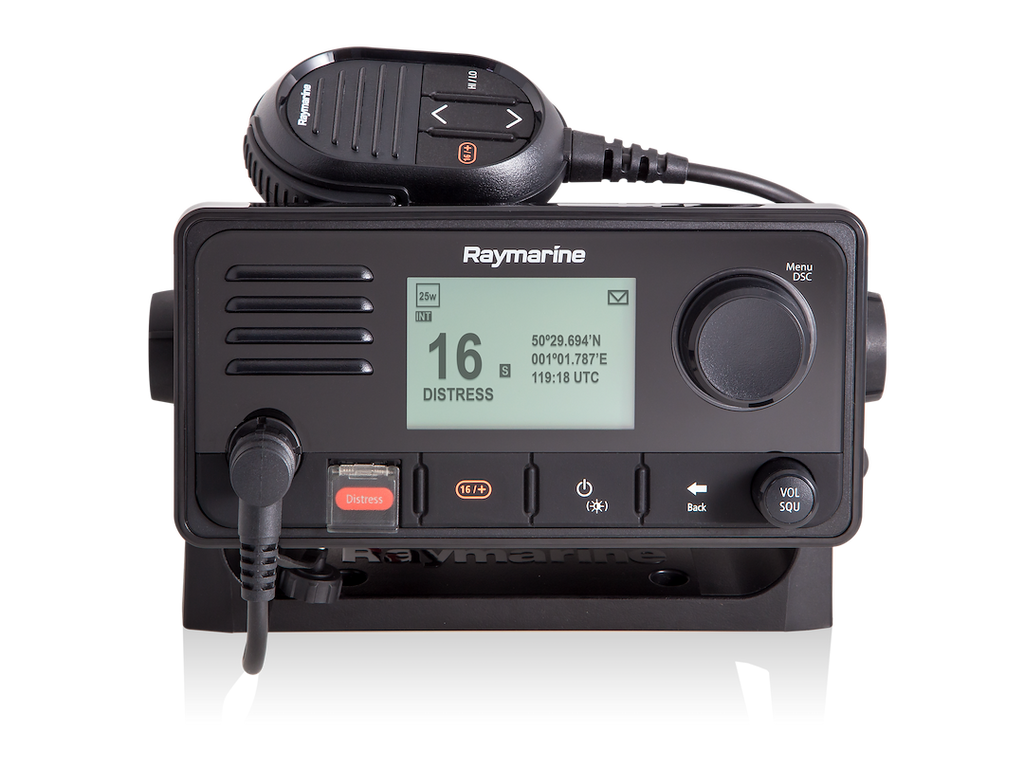

The Raymarine Ray73 VHF radio is designed for reliable communication in marine environments, featuring an internal AIS receiver that provides essential target data for chartplotters, radar, and other instruments. This fixed mount radio operates on US, Canadian, and international channels, delivering 25 watts of power for clear transmission and reception. The device includes a built-in GPS receiver, enhancing navigation capabilities and ensuring accurate positioning at sea.
With oversized controls and a large display, the Ray73 is user-friendly, making it easy to operate even in challenging conditions. It supports optional wired or wireless RayMic controllers, allowing for multi-station control and intercom functionality. Additionally, when connected to an optional hailing horn, the Ray73 can issue automatic fog signals and function as a public address system, enhancing safety and communication on board.
The Ray73 is equipped with NMEA2000 and NMEA0183 networking capabilities, facilitating integration with other onboard systems. Its IPX6 and IPX7 waterproof ratings ensure durability and reliability in harsh marine environments. The radio is styled to complement the Axiom family of chartplotter displays, making it a cohesive addition to any marine setup.
Features
- Marine VHF With Digital Selective Calling
- Internal AIS Receiver Provides Target Data For Chartplotter, Radar, And Instruments
- Fog Signaling And Public Address Functions With Optional Hailing Horn
- Wired Or Wireless Expansion With Optional RayMic Handset Stations
- Internal GPS Or GNSS Receiver With A Connection Point For An Optional External Antenna
- NMEA2000 And NMEA0183 Networking For Integration With Onboard Systems
- Audio Output Connection For Optional Passive Remote Speaker
- Styled To Compliment The Axiom Family Of Chartplotter Displays
Specifications
- Manufacturer: Raymarine
- Manufacturer Part Number: E70517
- Type: Fixed Mount
- Waters: United States/ Canadian/ International Waters
- Power Output (W): 25 Watt High/ 1 Watt Low
- Automatic Identification System (AIS): With AIS
- GPS Capable: Yes
- With Weather Alert: Yes
- With Bluetooth Technology: No
- Public Address System: PA System Capable
- Rechargeable Battery Type: Rechargeable Lithium Ion Battery
- With Key Lock: No
- Display Type: LCD
- Color: Black
