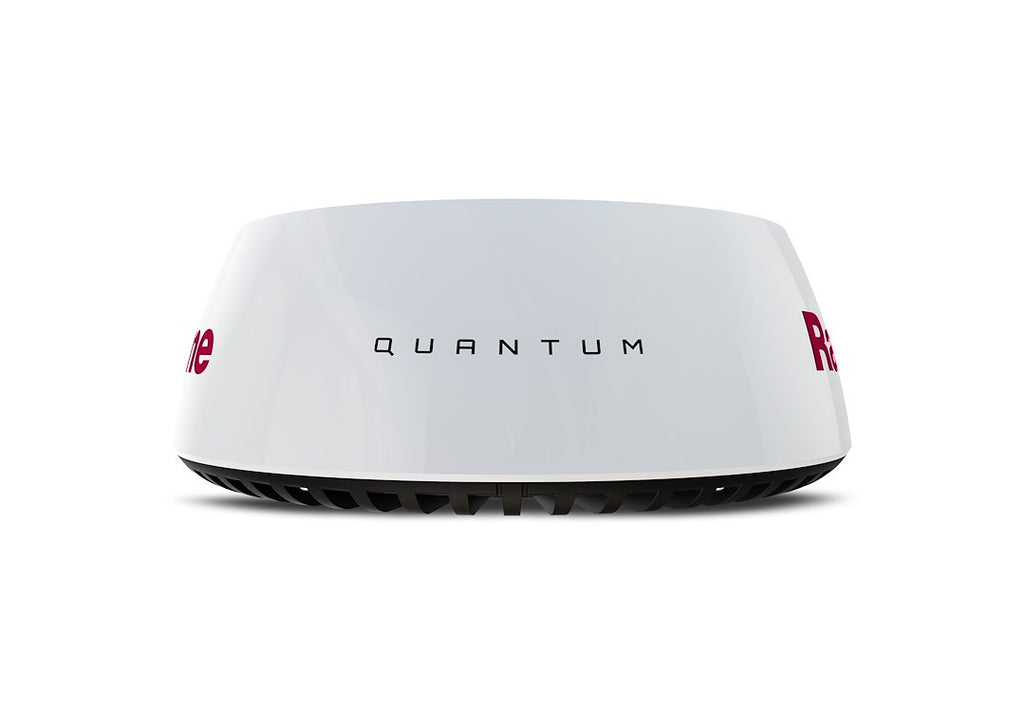

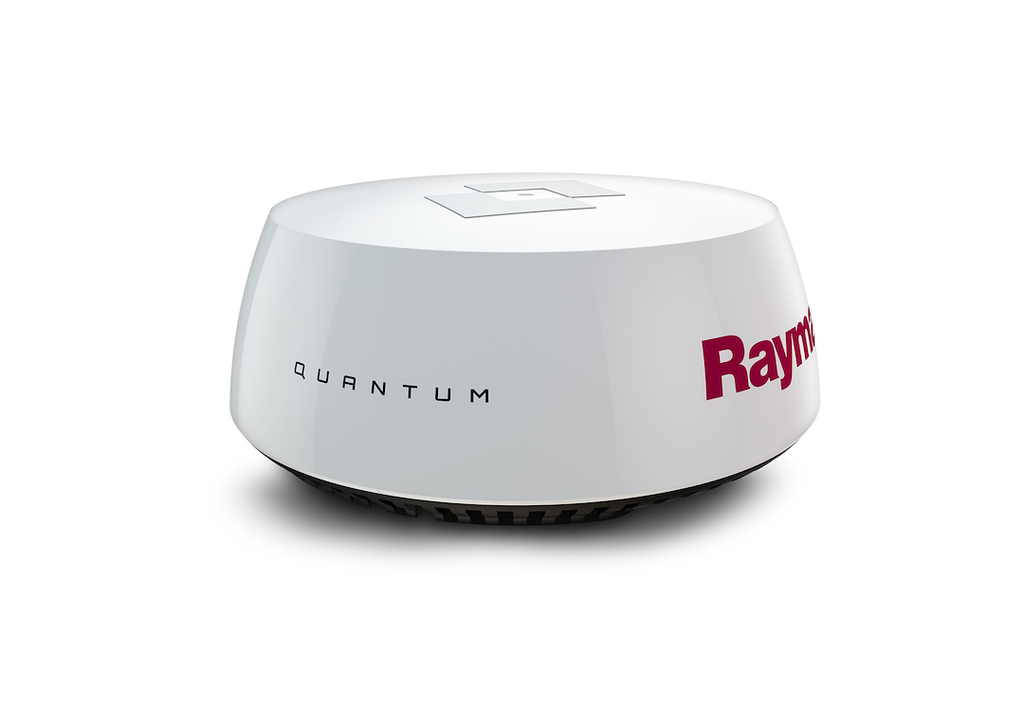

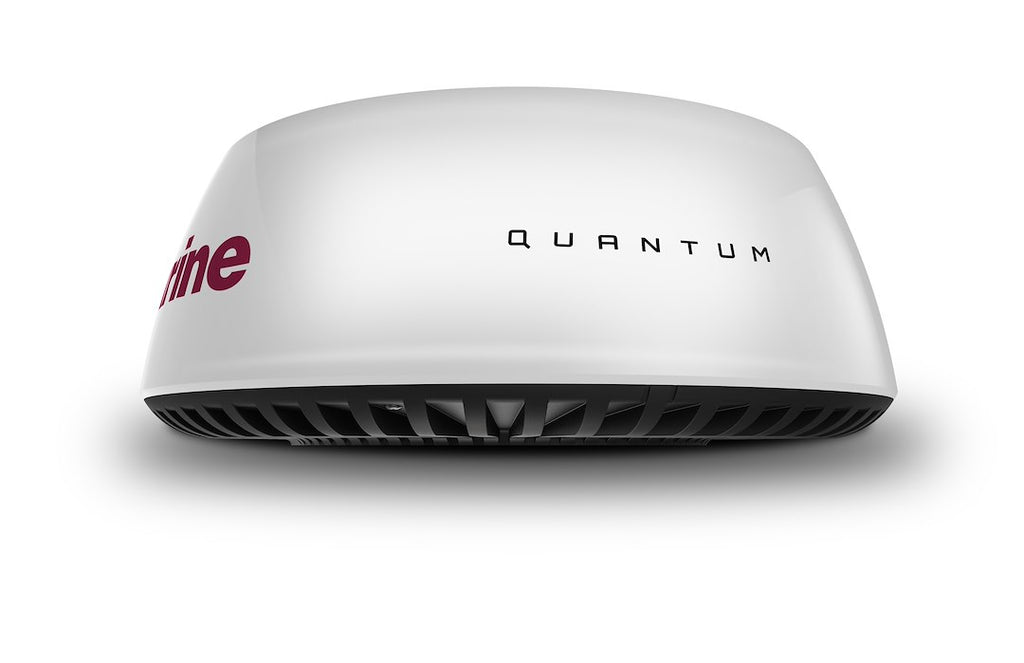

Raymarine Quantum Radar Antenna (MPN: T70266)

Compact marine radar with advanced CHIRP technology for superior imaging.

The Raymarine Quantum Radar Antenna is a high-performance solid-state marine radar designed for optimal target recognition across various ranges. Utilizing CHIRP pulse compression technology, it enhances radar imaging, ensuring that more energy reaches each target for improved detection capabilities. This radar is suitable for a range of marine applications, including sailboats, RIBs, and smaller powerboats, making it a versatile choice for marine navigation.

With a minimum detection range of 18 feet and a maximum range of 24 nautical miles, the Quantum Radar provides excellent short-range detection and enhanced target detail. Its lightweight design, weighing up to 50 percent less than traditional magnetron radars, simplifies installation and reduces power consumption, allowing for safe radiated emissions. The integrated Wi-Fi and thin cabling further streamline the installation process, enabling users to utilize existing cables with an adapter if upgrading from another Raymarine scanner.

The Quantum Radar also features superior interference rejection, minimizing noise from other radar systems, which enhances overall performance. Its IPX6 waterproof rating ensures durability in marine environments, while the included mounting hardware and power/data cables facilitate a straightforward setup. The radar's compact 18-inch dome design and efficient rotation speed of 24 RPM make it an effective tool for reliable marine navigation.

Features

• Provides Excellent Short-Range Detection And Enhanced Target Detail With 18 Feet Minimum Range
• CHIRP Pulse Compression Ensures More Energy Reaches Each Target, Resulting In Superior Imaging On Long Ranges
• Broad Usage Applications, Quantum Is Perfect For Sailboats, Ribs And Smaller Powerboats
• Superior Interference Rejection Eliminates Noise From Other Radars

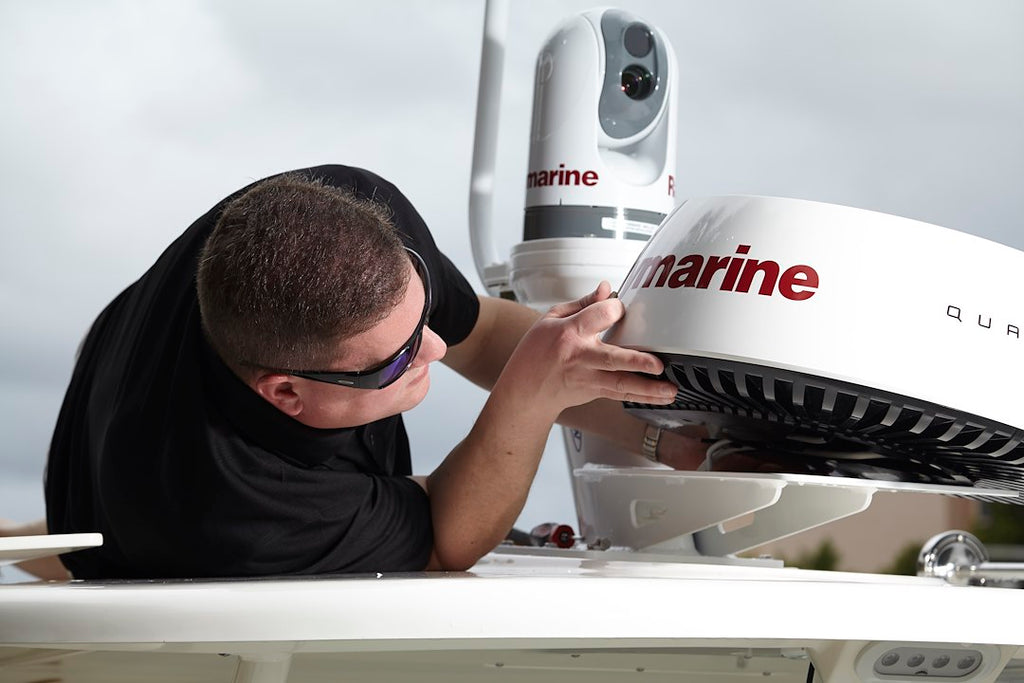

• Easy Upgrade: Quantum Fits The Same Bolt Pattern As Other Raymarine Scanners
• Lightweight And Easy To Install: Quantum Weighs Up To 50 Percent Less Than Comparable Magnetron Radars
• Safe Emissions: Mount Quantum Anywhere Onboard

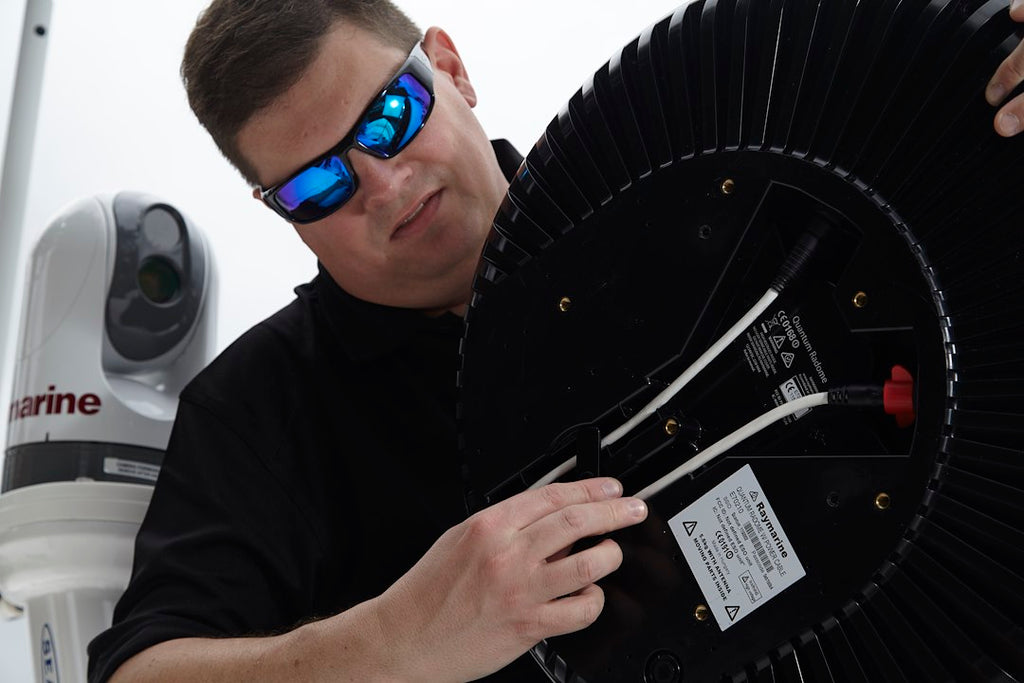

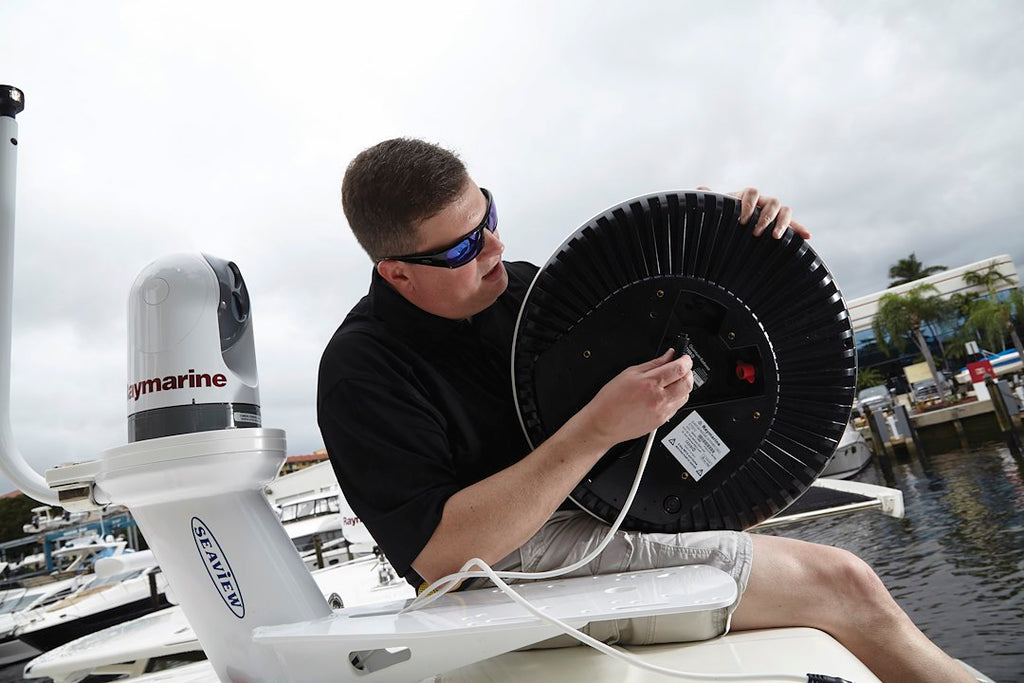

• Simplified Installation And Can Utilize Existing Cables (With An Adapter) If Being Used As An Upgrade

Specifications

• Manufacturer: Raymarine
• Manufacturer Part Number: T70266
• Radar Type: Radome
• Distance Range Limit: 24 Nautical Miles
• Size: 18 Inch Dome
• Power Output: 20 Watt
• Beam Width: 4.9 Degree Horizontal/ 20 Degree Vertical
• Color: White
• Range Scale: 1/16 To 24 Nautical Miles
• Near Range Limit: 1/16 Nautical Miles
• Rotation Speed: 24 RPM
• Dimension: 21.3 Inch Diameter X 8-1/4 Inch Height
• Input Voltage: 12 Volt To 24 Volt
• Waterproof Rating: IPX6 Rating Waterproof
• Includes: With Mounting Hardware/ 15 Meter Power Cable/ 15 Meter Data Cable/ Installation Instructions

Technical Documents

• Quantum_Radar_Mounting_template_87257-2.pdf
• Quantum_Radome_Installation_instructions_87209_(Rev_9)_(EN).pdf
• Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0.pdf
