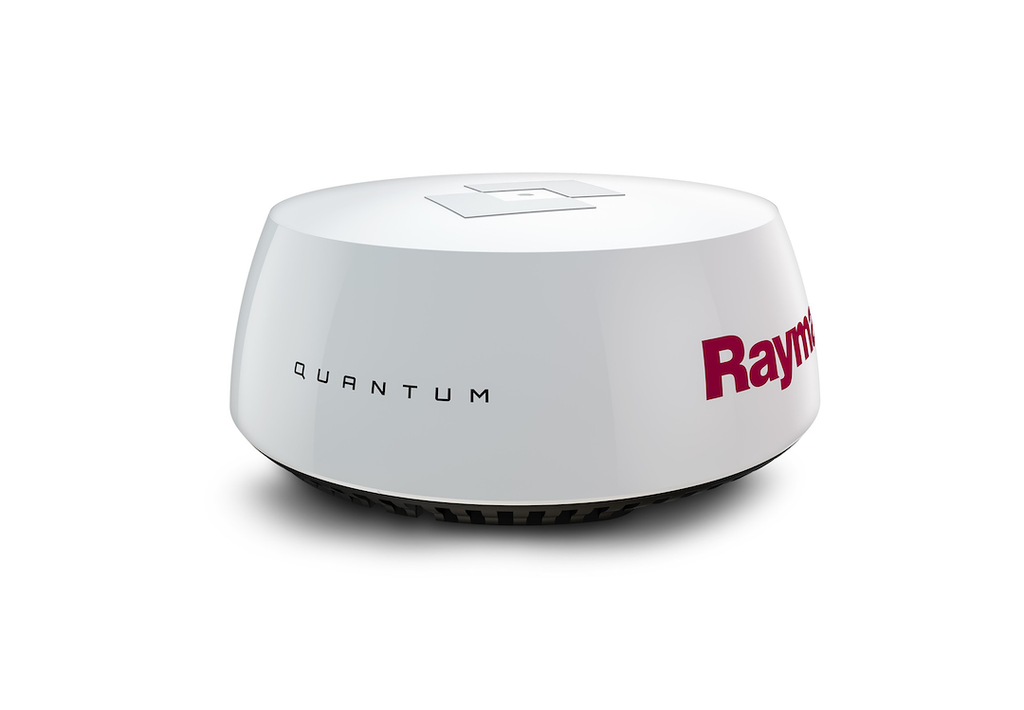

Raymarine Quantum Radar Antenna (MPN: E70210)

Compact marine radar with advanced imaging and easy installation features.

The Raymarine Quantum Radar Antenna is a high-performance solid-state marine radar designed for superior target recognition and imaging. Utilizing CHIRP pulse compression technology, it provides excellent short-range detection and enhanced target detail, with a minimum range of 18 feet and a maximum range of 24 nautical miles. The lightweight design and integrated Wi-Fi connectivity simplify installation, making it suitable for various marine applications including sailboats and smaller powerboats.

This radar antenna features a compact 18-inch dome and operates at a rotation speed of 24 RPM, ensuring efficient scanning of the surrounding area. With a power output of 20 watts, it delivers safe emissions and significantly reduces power consumption compared to traditional magnetron radars. The Quantum's superior interference rejection capabilities eliminate noise from other radars, enhancing the clarity of radar images.

Installation is straightforward, as the Quantum fits the same bolt pattern as other Raymarine scanners, allowing for easy upgrades. It is designed to be waterproof with an IPX6 rating, ensuring durability in marine environments. The included mounting hardware and 10-meter power cable facilitate a hassle-free setup, making the Raymarine Quantum Radar Antenna a reliable choice for marine navigation.

Features

• Provides Excellent Short-Range Detection And Enhanced Target Detail With 18 Feet Minimum Range
• CHIRP Pulse Compression Ensures More Energy Reaches Each Target, Resulting In Superior Imaging On Long Ranges
• Broad Usage Applications, Quantum Is Perfect For Sailboats, Ribs And Smaller Powerboats
• Superior Interference Rejection Eliminates Noise From Other Radars
• Easy Upgrade: Quantum Fits The Same Bolt Pattern As Other Raymarine Scanners
• Lightweight And Easy To Install: Quantum Weighs Up To 50 Percent Less Than Comparable Magnetron Radars
• Safe Emissions: Mount Quantum Anywhere Onboard
• Simplified Installation And Can Utilize Existing Cables (With An Adapter) If Being Used As An Upgrade

Specifications

• Manufacturer: Raymarine
• Manufacturer Part Number: E70210
• Radar Type: Radome
• Distance Range Limit: 24 Nautical Miles
• Size: 18 Inch Dome
• Power Output: 20 Watt
• Beam Width: 4.9 Degree Horizontal/ 20 Degree Vertical
• Color: White
• Range Scale: 1/16 To 24 Nautical Miles
• Near Range Limit: 1/16 Nautical Miles
• Rotation Speed: 24 RPM
• Dimension: 21.3 Inch Diameter X 8-1/4 Inch Height
• Input Voltage: 12 Volt To 24 Volt
• Waterproof Rating: IPX6 Rating Waterproof
• Includes: With Mounting Hardware/ 10 Meter Power Cable
