Raymarine Marine Heading Sensor (MPN: E70096)

Advanced 9-Axis Sensor for Accurate Vessel Motion Monitoring

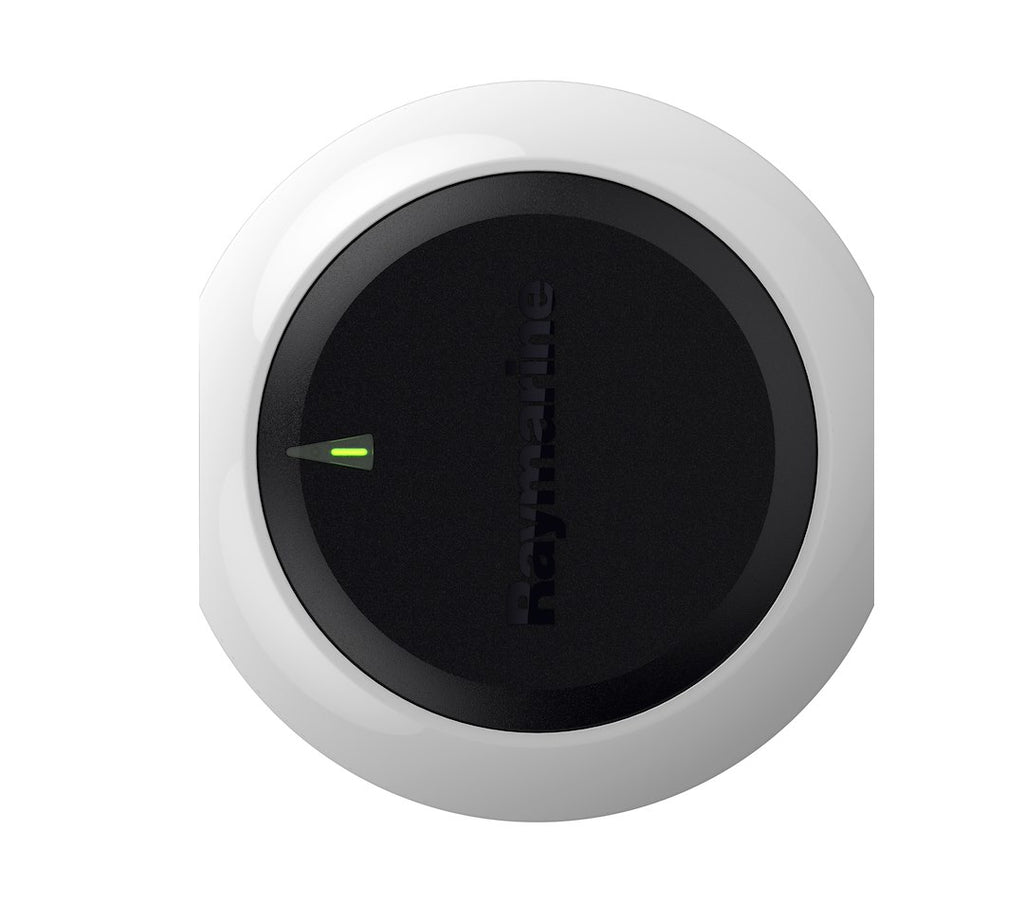

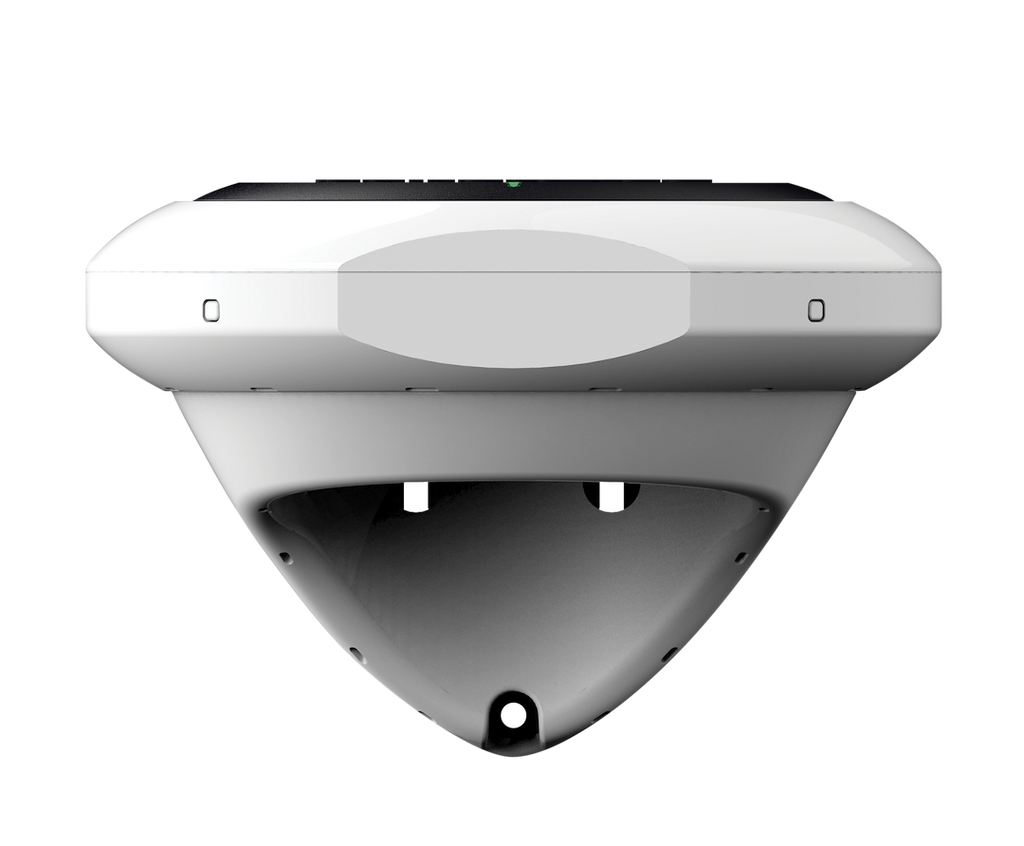

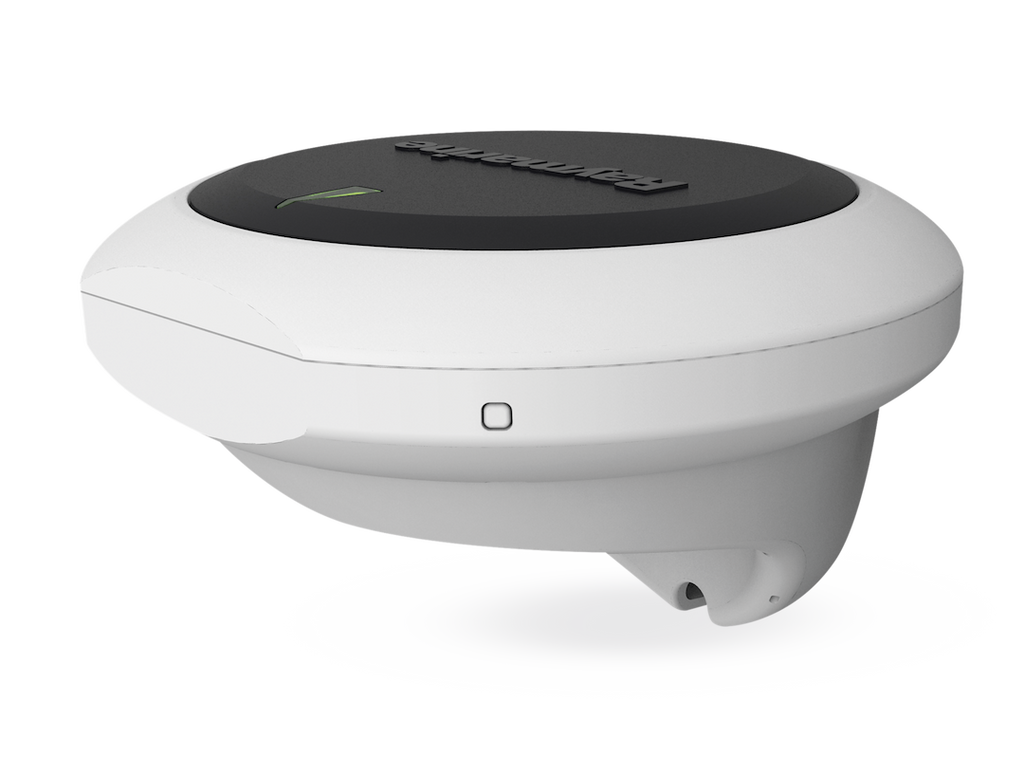

The Raymarine Marine Heading Sensor is a critical component of the Evolution Series Autopilots, designed to provide precise heading, roll, pitch, and yaw data. This innovative sensor core integrates advanced solid-state technology, featuring a 3-axis digital accelerometer, compass, and gyro angular rate sensor, all housed in a rugged, waterproof enclosure. With an accuracy of +/- 2 degrees, it ensures reliable performance in various marine conditions, making it suitable for both northern and southern navigation extremes.

Installation is straightforward, as the EV sensor core can be mounted above or below decks, accommodating different vessel configurations. The fully sealed design meets IPX6 and IPX7 waterproof standards, ensuring durability and longevity in harsh marine environments. The sensor also features auto-compensation for onboard magnetic fields, enhancing heading accuracy and reliability.

This sensor provides fast and dependable heading data, essential for MARPA, radar overlay, and heading modes on Raymarine multifunction displays. The package includes a heading sensor, a 1-meter SeaTalk NG spur cable, a document pack, a mounting tray, and all necessary mounting hardware, making it a comprehensive solution for marine navigation.

Features

• Innovative EV Sensor Core Combines Advanced Solid-State Sensors With The Evolution Autopilot Processor Into A Single Easy-To-Install Housing
• Mount The EV Sensor Core Above Or Below Decks, The Rugged Enclosure Is Fully Sealed And Built To IPX6 And IPX7 Waterproofing And Submersion Standards
• Solid State Sensor Technology Delivers Dynamic Accuracy To Within 2 Degree In All Conditions
• Auto-Compensation For On Board Magnetic Fields And Reliable Heading Accuracy In The Northern And Southern Extremes
• Fast And Reliable Heading Data For MARPA, Radar Overlay, And Heading Modes On Raymarine Multifunction Display

Specifications

• Manufacturer: Raymarine
• Manufacturer Part Number: E70096
• Compatibility: Evolution Series Autopilots
• Type: 3-Axis Digital Accelerometer/ 3-Axis Digital Compass/ 3-Axis Digital Gyro Angular Rate Sensor
• Mounting Location: Bulkhead/ Surface Mount
• Precision: +/- 2 Degree Accuracy
• Function: Provides Head/ Roll/ Pitch/ Yaw
• Output Format: NMEA 2000
• Operating Voltage: 12 Volt
• Waterproof Rating: IPX6/ IPX7 Waterproof
• Includes: With Heading Sensor/ 1 Meter SeaTalk NG Spur Cable/ Document Pack/ Mounting Tray/ Mounting Trim

Technical Documents

• Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0.pdf
