High-performance GPS antenna with advanced features for reliable navigation.
The Raymarine GPS Navigation System Antenna is a robust and efficient solution designed for seamless integration with Raymarine navigation systems. This self-contained, remotely mounted GPS/GNSS sensor features a 72-channel GPS receiver that provides fast 10 Hertz position updates, ensuring accurate and timely location data. It is compatible with satellite differential GPS and supports space-based augmentation systems including WASS, EGNOS, MSAS, and GAGAN, enhancing its reliability in various conditions.
Constructed for durability, the antenna operates within a temperature range of -25 degrees Fahrenheit to 55 degrees Fahrenheit and boasts an IPX6 waterproof rating, making it suitable for marine environments. The low power consumption of just 30 mA ensures efficient operation without draining power resources. Additionally, the antenna supports both SeaTalk and NMEA 2000 protocols, allowing for versatile connectivity options.

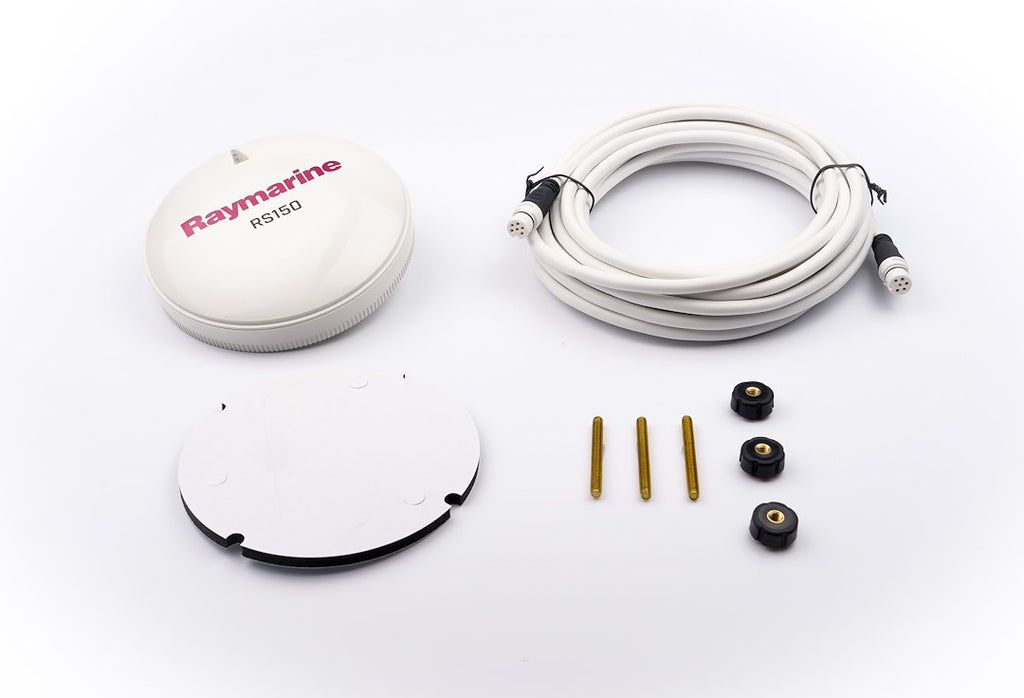

Designed for low-profile surface mounting or optional pole mounting, the Raymarine GPS Navigation System Antenna includes essential mounting hardware such as a gasket, threaded studs, finger nuts, and a SeaTalkng cable. Its compact dimensions of 4.27 inches in diameter and 1.05 inches in height make it an unobtrusive addition to any vessel, while its advanced features provide reliable navigation support.
Features
- 72-Channel GPS Receiver
- Fast 10 Hertz Position Updates
- Satellite Differential GPS-Compatible And Space-Based Augmentation System Enabled With WASS, EGNOS, MSAS And GAGAN Support
- GNSS Receiver With GLONASS Compatibility
- Low Power Consumption: 30 MA
- SeaTalk And NMEA2000 Compatible
- Designed For Low Profile Surface Mounting Or Optional Pole Mounting
Specifications
- Manufacturer: Raymarine
- Manufacturer Part Number: E70310
- Mounting Location: Pole Mount/ Surface Mount
- Color: White
- Temperature Range: -25 Degree Fahrenheit To 55 Degree Fahrenheit
- Dimensions: 4-1/4 Inch Diameter X 1-1/16 Inch Height
- Waterproof Rating: IPX6 Rating Waterproof
- Includes: With Mounting Gasket/ Threaded Studs/ Finger Nuts/ SeaTalkng Cable
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
