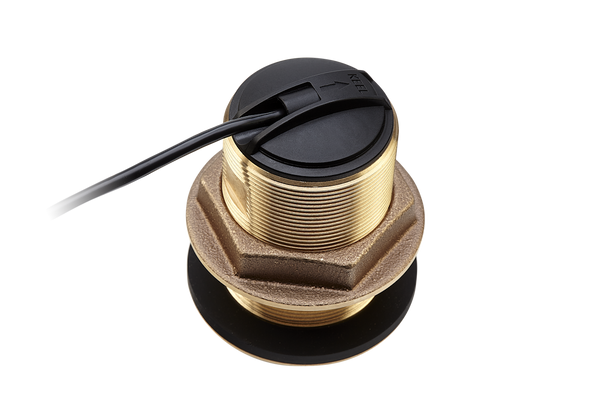

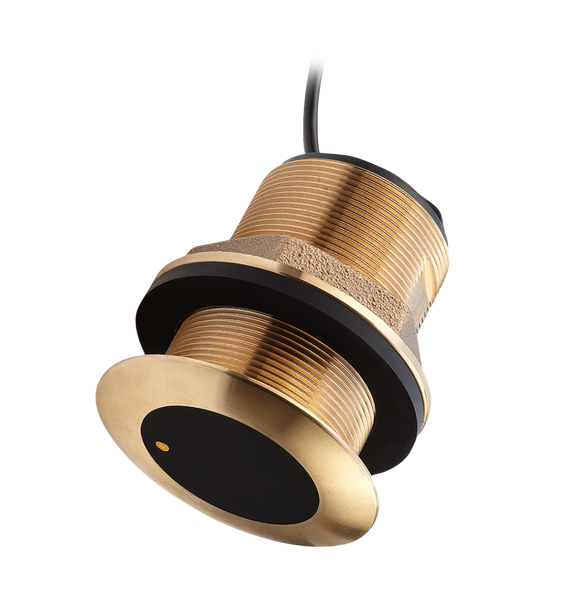

Raymarine CPT-S Thru-Hull Transducer (MPN: E70341)

Reliable depth-only transducer for fiberglass hulls with CHIRP support.

The Raymarine CPT-S Thru-Hull Transducer is designed for easy installation in non-cored fiberglass hulls, making it suitable for various marine applications including sailing, cruising, and small powerboats. This depth-only transducer supports CHIRP sonar operation centered on 200 Kilohertz, providing accurate and reliable depth readings up to 900 feet. Its innovative design allows for mounting in hulls with a dead rise angle ranging from 15 to 25 degrees, ensuring versatility in installation.

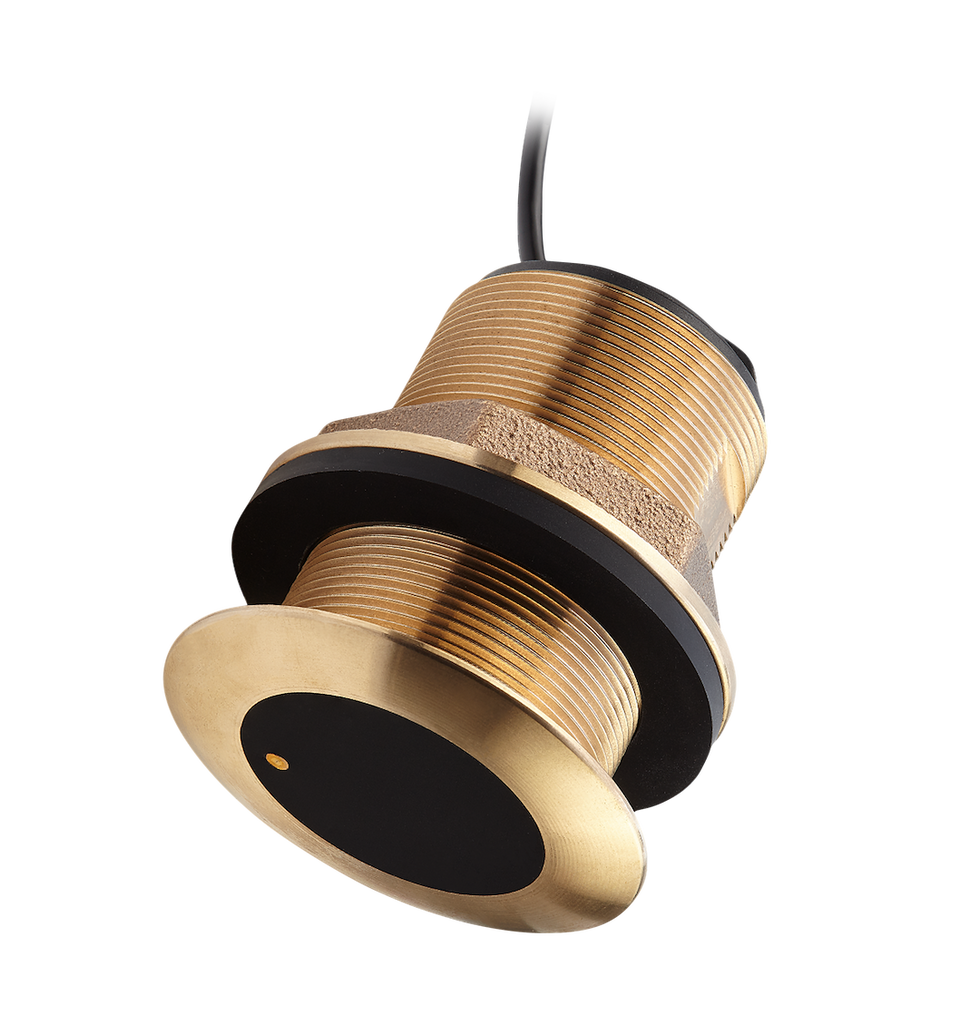

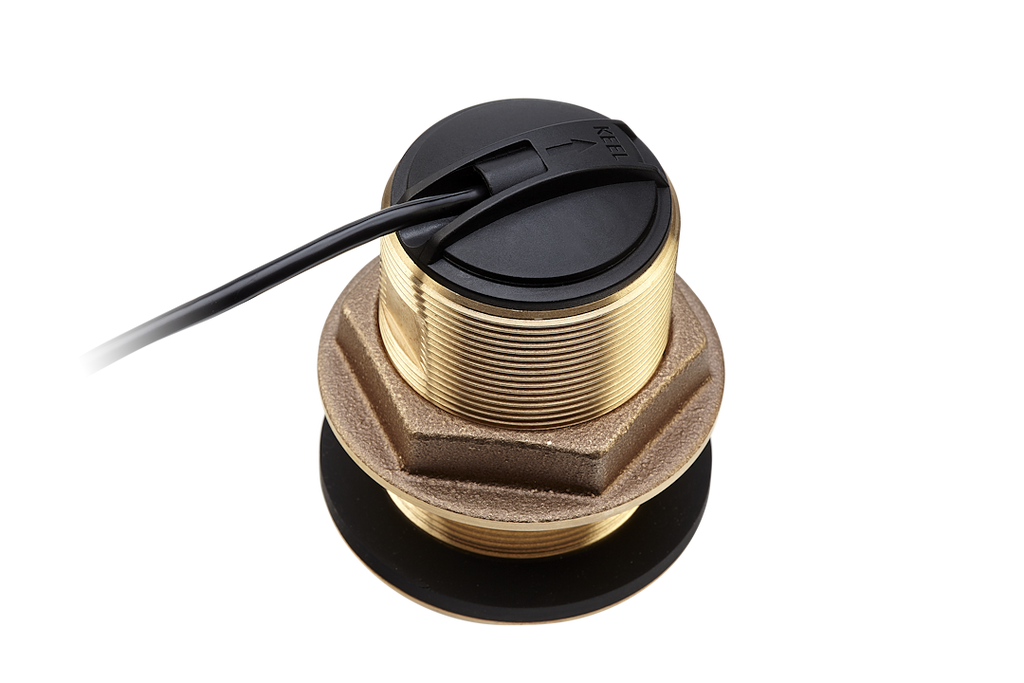

With a low-profile bronze housing, the CPT-S transducer minimizes drag and enhances performance while maintaining a sleek appearance. The transducer features a 25-degree conical beam width, allowing for effective sonar signal transmission through the hull. The 33 feet cable length provides ample reach for various boat configurations, and the transducer connects directly to Axiom DV models, simplifying integration with existing systems.

This product eliminates the need for drilling through the hull, making it a convenient choice for boat owners looking to install a reliable depth sounder without compromising the integrity of their vessel. The CPT-S is engineered to deliver high-speed depth recording, ensuring that users have access to accurate underwater information while navigating.

Features

• No Drilling Through The Hull Is Required
• Supports Single High CHIRP Sonar With A 25 Degree Conical Beam
• Up To 600 Feet Depth Range
• Transducers Connect Directly To Axiom DV Models

Specifications

• Manufacturer: Raymarine
• Manufacturer Part Number: E70341
• Mounting Location: Thru-Hull Mount
• Number Of Pins: 25 Pin
• Depth: 900 Feet Maximum Depth For CHIRP Fish finder
• Supported Angle: 25 Degree Conical Beam Width/ 15 To 25 Degree Deadrise Angle
• Cable Length: 33 Feet

Technical Documents

• Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0.pdf
