Raymarine ClearCruise AR200 Module (MPN: T70581)

Enhance navigation with augmented reality and HD video integration.

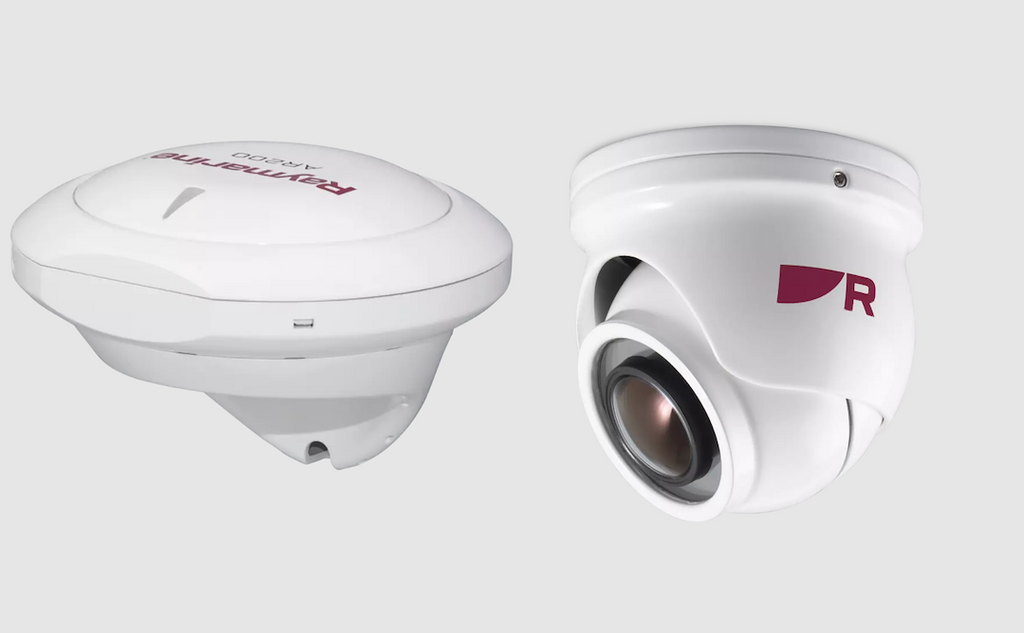

The Raymarine ClearCruise AR200 Module is designed to enhance on-water awareness for users of Axiom chartplotters. This innovative module provides critical data such as position, compass heading, pitch, and roll, allowing for improved navigation decisions. The integration of the CAM300 mini day/night IP camera transforms the Axiom into a comprehensive video observation system, enabling users to monitor blind spots and capture fishing activities with crystal clear HD video imagery.

With the ability to view up to four CAM300 video streams simultaneously on a single Axiom display, the ClearCruise AR200 offers a versatile solution for marine environments. The camera features a 3 megapixel CMOS sensor that delivers up to 1080p resolution, ensuring high-quality visuals even in low-light conditions, thanks to built-in infrared emitters. Its ultra-compact design and flexible mounting options make it easy to install and integrate seamlessly with various vessel types.

The ClearCruise AR200 is built to withstand harsh marine conditions, featuring an IP66 enclosure for both above and below-deck installations. It operates within a wide voltage range of 9 to 16 volts and is compliant with multiple international standards, ensuring reliability and safety. This module is an essential addition for those looking to leverage augmented reality for enhanced navigation and situational awareness on the water.

Features

• Crystal Clear HD Video Imagery
• View Up To 4 CAM300 Video Streams Simultaneously On A Single Axiom Display
• 3 Megapixel CMOS Sensor Delivers Up To 1080p Resolution
• Built-In Infrared Emitters For Excellent Near-Field Low-Light Visibility Up To 33 Feet
• Ultra-Compact Size Blends Seamlessly With Your Vessel
• Image Flip And Invert Functions For Ball-Up Or Ball-Down Installation And Reverse Video System Applications
• Flexible Mounting Solutions As The Entire Camera Ball Rotates In The Housing
• Rugged IP66 Enclosure For Below And Above-Deck Marine Installations
• Easy To Install With Either A Direct 12 Volt Connection Or Single Cable Power Over Ethernet

Specifications

• Manufacturer: Raymarine
• Manufacturer Part Number: T70581
• Compatibility: Axiom Chart Plotters
• Ampere Rating: 30 mA
• Voltage: 9 To 16 Volt
• Operating Temperature: -13 Degree Fahrenheit To 131 Degree Fahrenheit
• Dimensions: 4.27 Inch Diameter X 1.64 Inch Depth
• Waterproof Rating: IPX6/ IPX7 Rating Waterproof
• Standards: EMC Directive 2014/30/EU/ Australia And New Zealand C-Tick Compliance Level 2
• Includes: With CAM300 Eyeball Camera/ STNG 1 Meter Backbone/ T-Piece/ 10 Meter Raynet Cable
