Advanced stabilization and navigation data for Axiom chartplotters.

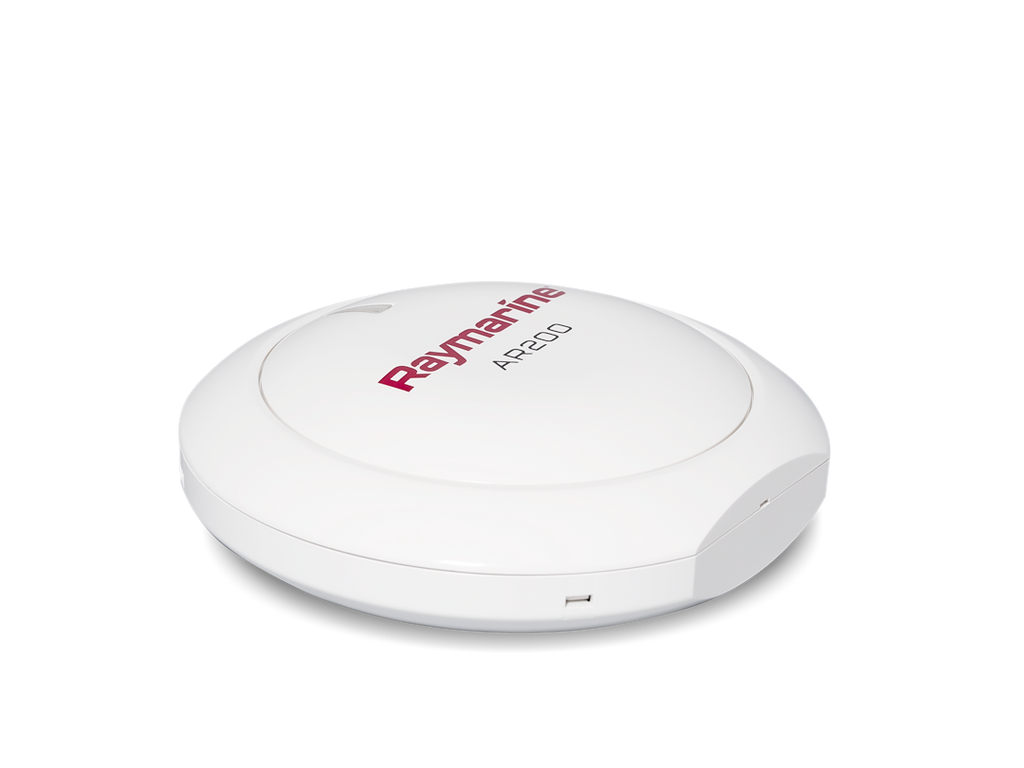

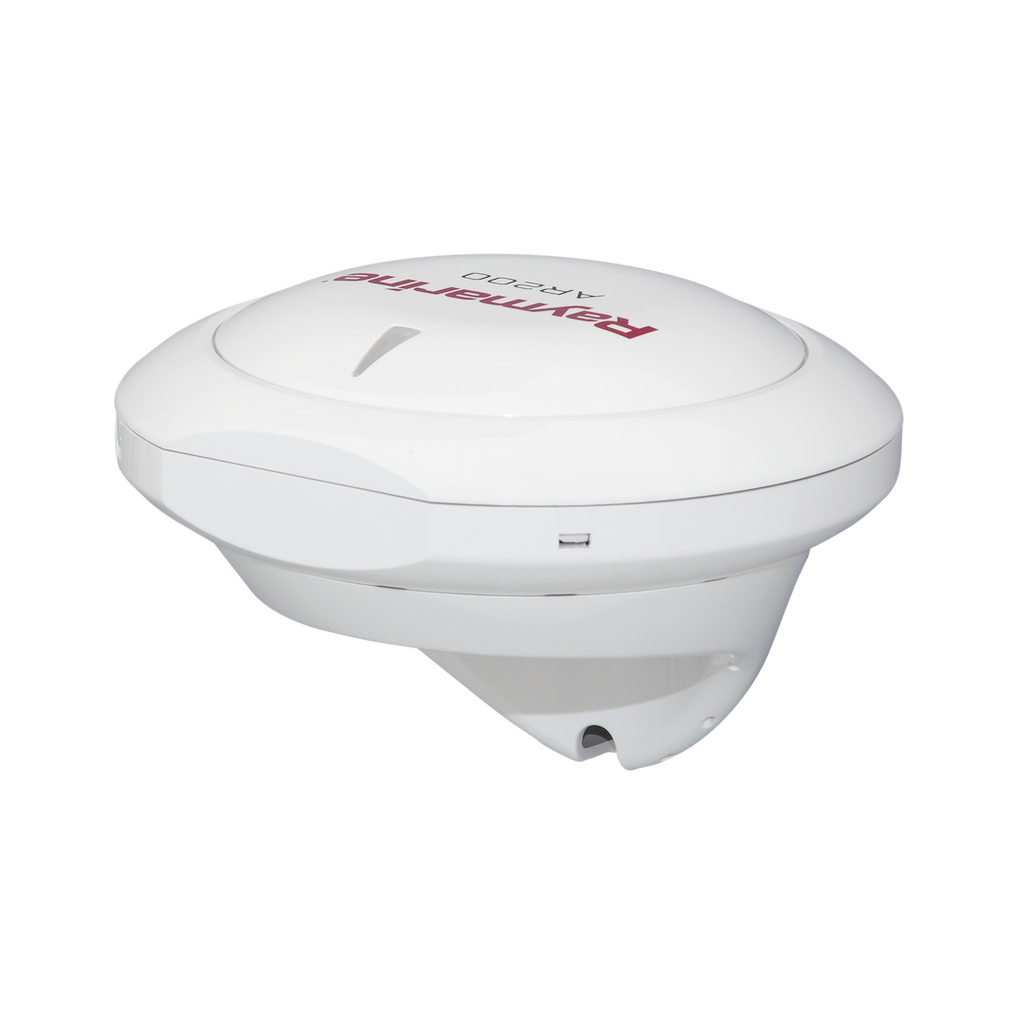

The Raymarine ClearCruise AR200 Module is a sophisticated marine sensor designed to enhance navigation and video stabilization for Axiom chartplotters. This module integrates a GPS (GNSS) receiver and an Attitude and Heading Reference System (AHRS) sensor, providing essential data such as position, compass heading, pitch, and roll. With a power rating of 30 mA and an operating voltage range of 9 to 16 volts, the AR200 is engineered for reliable performance in various marine environments.
Operating within a temperature range of -13 to 131 degrees Fahrenheit, the AR200 is built to withstand challenging conditions. Its IPX6/IPX7 waterproof rating ensures durability against water exposure, making it suitable for marine applications. The module's compact dimensions of 4.27 inches in diameter and 1.64 inches in depth allow for easy installation on compatible vessels.
The ClearCruise AR technology enhances situational awareness by visually identifying surrounding AIS-equipped vessels and charted navigation aids. This feature provides real-time graphics on a dynamic video image, allowing for instant identification and risk assessment of live AIS targets. The AR200 also facilitates the visualization of nearby waypoints and marks, improving navigation accuracy and safety.
Features
- Surrounding AIS-Equipped Vessel Traffic And Charted Navigation Aids Are Clearly Identified With Rich Graphics On A Live, Dynamic Video Image
- Color-Coded Labels Provide Instant Identification, Status, And Risk-Assessment Live AIS Targets
- ClearCruise AR Provides Positive Identification Of AIS Equipped Vessels On The Horizon
- Major Chart Objects Are Identified For Instant, Heads-Up Recognition
- ClearCruise AR Technology Shows You Visually Where Your Saved Waypoints And Marks Are Located
- Visualize Nearby Marks And Waypoints For Easy Navigation
- ClearCruise AR Technology Makes It Easy To Pick Out The Buoys Marking The Edges Of The Safe Channel On A Hazy Day
Specifications
- Manufacturer: Raymarine
- Manufacturer Part Number: E70537
- Compatibility: Provides Position/ Compass Heading/ Pitch And Roll Data To Axiom Chart Plotters
- Ampere Rating: 30 mA
- Voltage: 9 To 16 Volt
- Operating Temperature: -13 Degree Fahrenheit To 131 Degree Fahrenheit
- Dimensions: 4.27 Inch Diameter X 1.64 Inch Depth
- Waterproof Rating: IPX6/ IPX7 Rating Waterproof
- Standards: EMC Directive 2014/30/EU/ Australia And New Zealand C-Tick Compliance Level 2
- Includes: With GPS (GNSS) Receiver/ Attitude And Heading Reference System (AHRS) Sensor/ Sealing Ring
