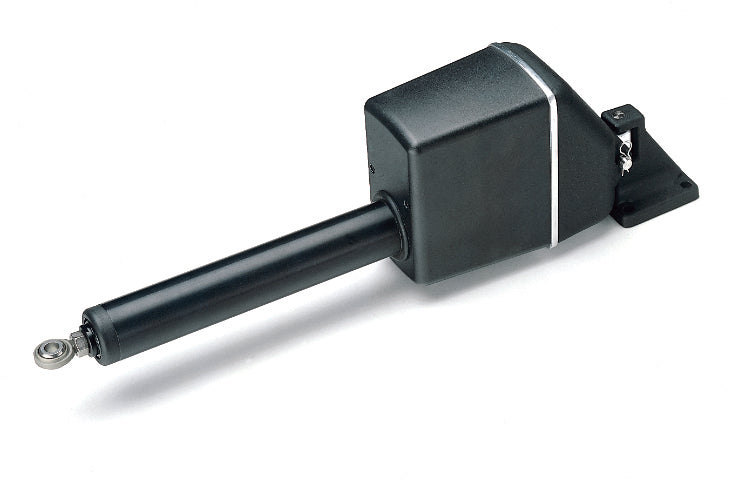

Raymarine Boat Autopilot System Drive Unit (MPN: M81130)

Efficient mechanical linear drive for boats up to 24000 pounds

The Raymarine Boat Autopilot System Drive Unit is designed for vessels with traditional hydraulic steering systems, providing reliable and precise steering control. This mechanical linear drive unit features a 12 inch stroke length and delivers a maximum thrust of 650 pounds, making it suitable for boats with a displacement of up to 24000 pounds. The system operates on a 12 volt DC input, ensuring compatibility with standard marine electrical systems.

Installation is straightforward, allowing for quick integration with the Evolution autopilot Actuator Control Unit. The hydraulic pump connects seamlessly to the boat's hydraulic steering lines, enabling the autopilot to manage steering by regulating fluid flow within the steering system. This functionality enhances navigational efficiency and reduces the manual effort required for steering, particularly during long voyages or challenging conditions.

The Raymarine Drive Unit is engineered for durability and performance, ensuring that it meets the demands of marine environments. Its robust design and ease of installation make it a practical choice for boat owners looking to enhance their vessel's autopilot capabilities.

Features

• Pump Connects To The Boat's Hydraulic Steering Lines And Allow The Autopilot To Steer The Boat By Controlling The Flow Of Fluid Through The Boat's Steering System
• Hydraulic Pump Is Controlled By The Evolution Autopilot Actuator Control Unit
• 650 Pounds Maximum Thrust
• Easy To Install

Specifications

• Manufacturer: Raymarine
• Manufacturer Part Number: M81130
• Compatibility: Boats Up To 24000 Pound
• Drive Type: Mechanical Linear
• Stroke Length: 12 Inch
• Maximum Thrust: 650 Pound
• Input Voltage: 12 Volt

Technical Documents

• Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0.pdf
