Raymarine Autopilot System (MPN: T70281)

Advanced control for small to medium wheel-steered sailboats

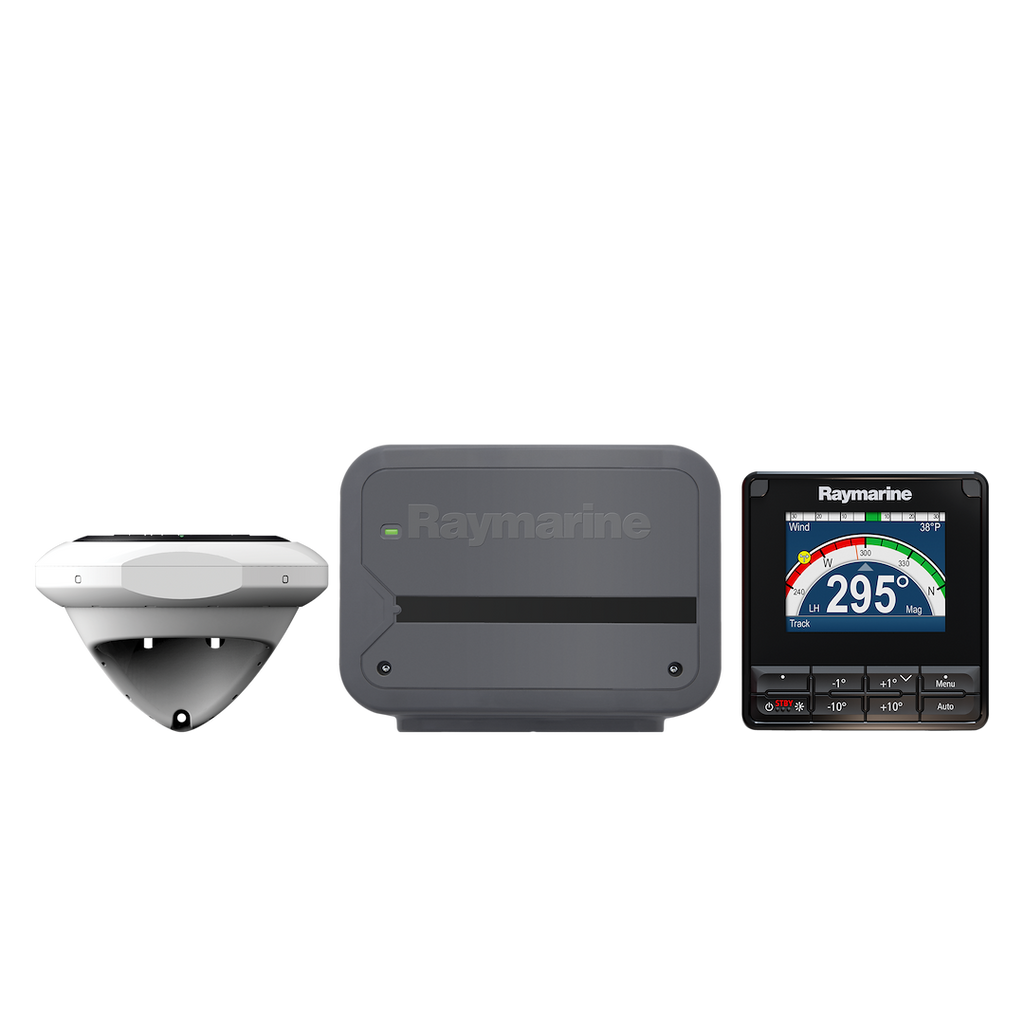

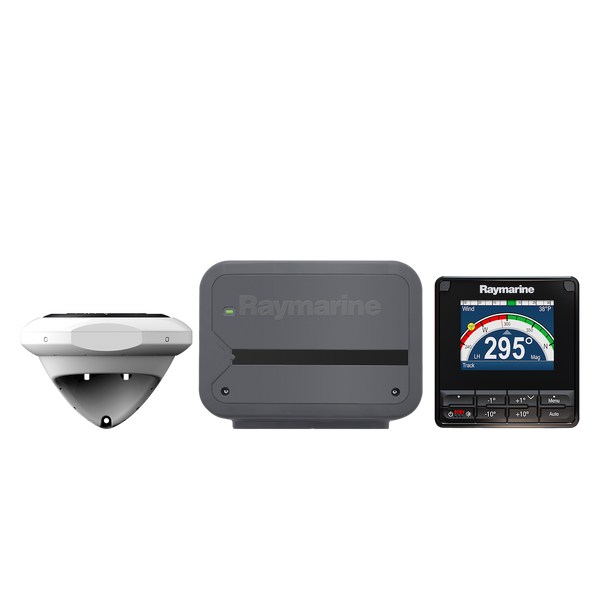

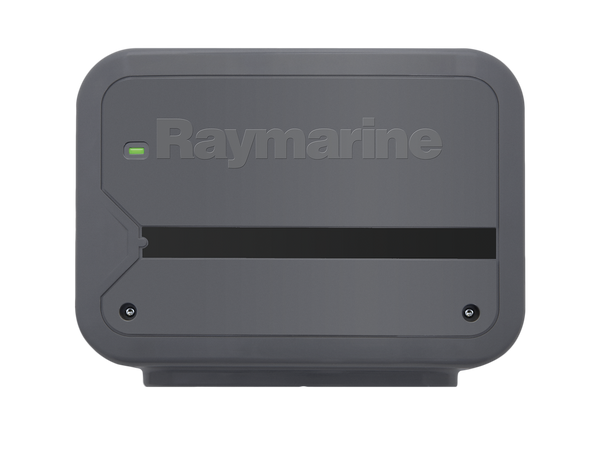

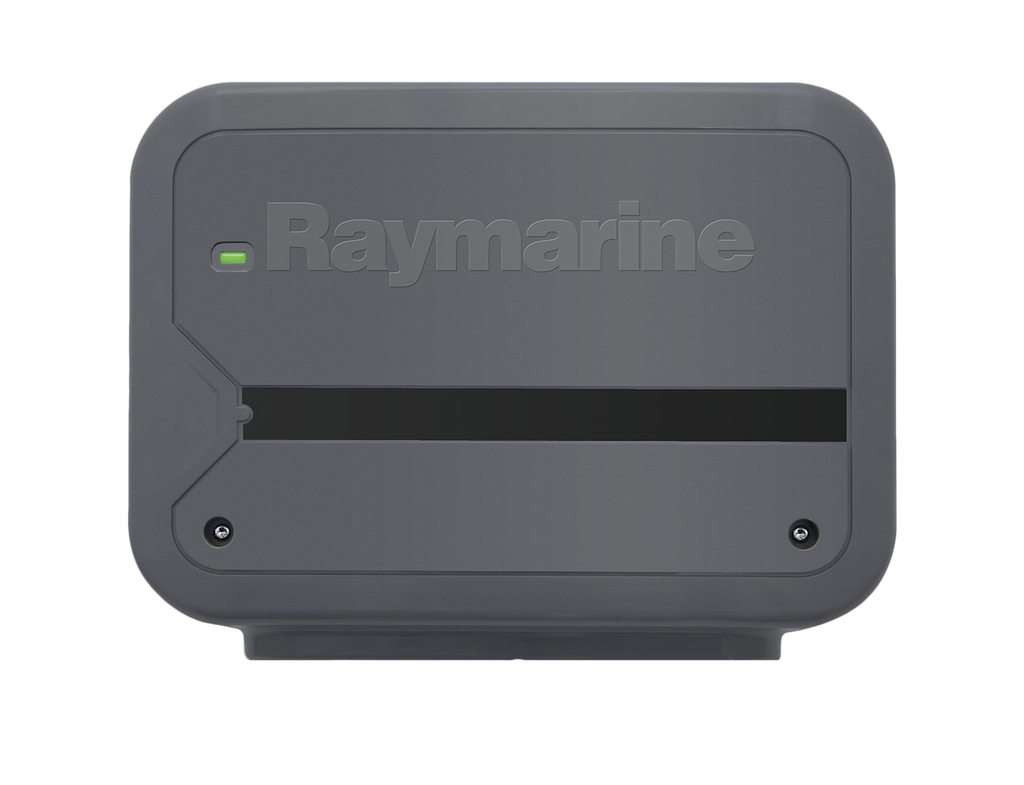

The Raymarine EV-100 Wheel Pilot is engineered for small to medium wheel-steered sailboats, providing a comprehensive autopilot solution. This system features an externally mounted drive that connects directly to the steering wheel, ensuring precise control and ease of installation. The integration of the intelligent EV-1 sensor core and the ACU-100 actuator control unit enhances navigational accuracy and responsiveness, making it suitable for vessels with a displacement of up to 16,500 pounds.

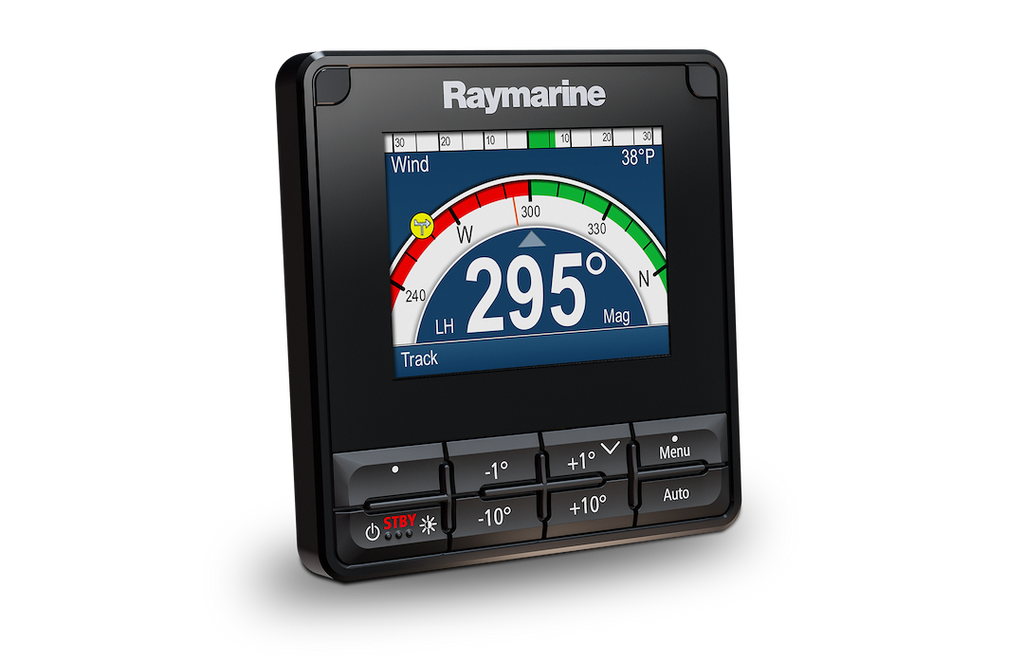

Designed for straightforward cockpit installations, the EV-100 requires no complex setup or calibration, allowing for quick deployment. It supports SeaTalk and NMEA2000 networking, enabling seamless integration with existing sailing instruments and chartplotters. Users can opt for the included p70s control head or utilize a Raymarine Axiom chartplotter for comprehensive autopilot management.

With a compact design measuring 7.1 inches in width, 5.5 inches in height, and 2 inches in depth, the EV-100 is built to withstand marine environments, featuring IPX2 waterproof connector panels and IPX6 waterproof drive electronics. This system is compliant with European and Australian standards, ensuring reliability and safety during operation.

Features

• Rated For Wheel-Steered Sailboats Up To 16,500 Pound Displacement
• Designed For Cockpit Installations
• SeaTalk/NMEA2000 For Networking With Sailing Instruments And Chartplotters
• Requires No Complicated Setup Or Autopilot Calibration

Specifications

• Manufacturer: Raymarine
• Manufacturer Part Number: T70281
• Compatibility: Small To Medium Wheel-Steered Sailboats
• Dimension: 7-1/8 Inch Width X 5-1/2 Inch Height X 2 Inch Depth
• Voltage Rating: 12 Volt

Technical Documents

• Raymarine_Product_Spring2023_Print_Evolution_8.5x11.pdf
