Advanced control for small to medium wheel-steered sailboats

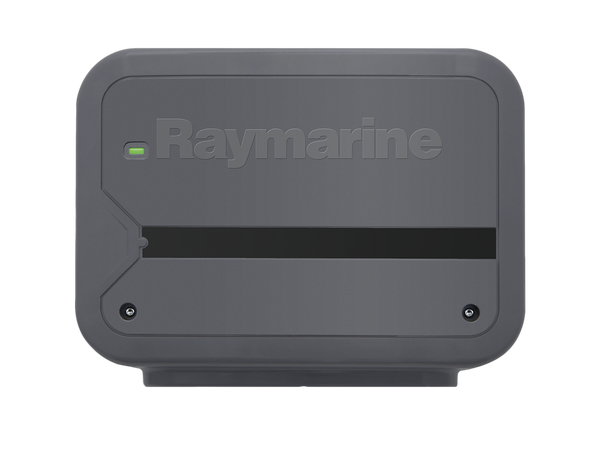

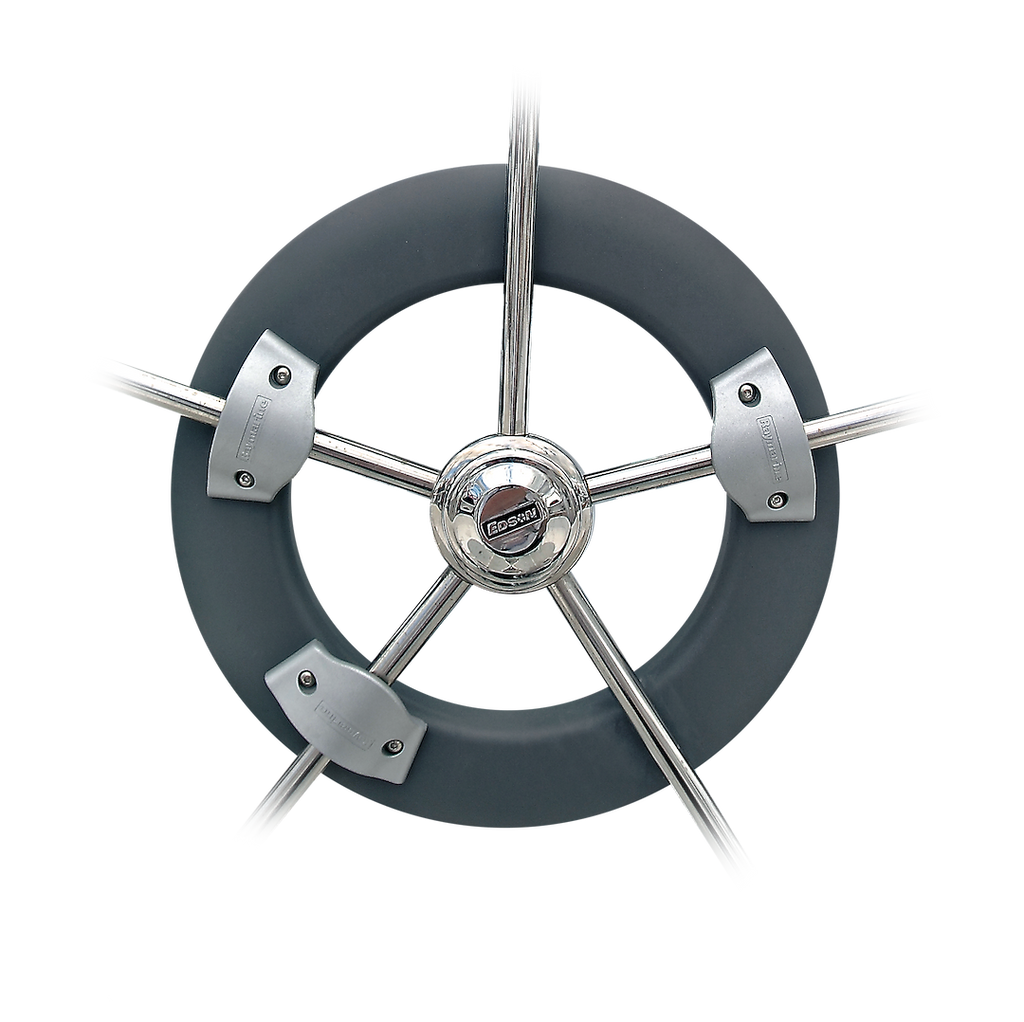

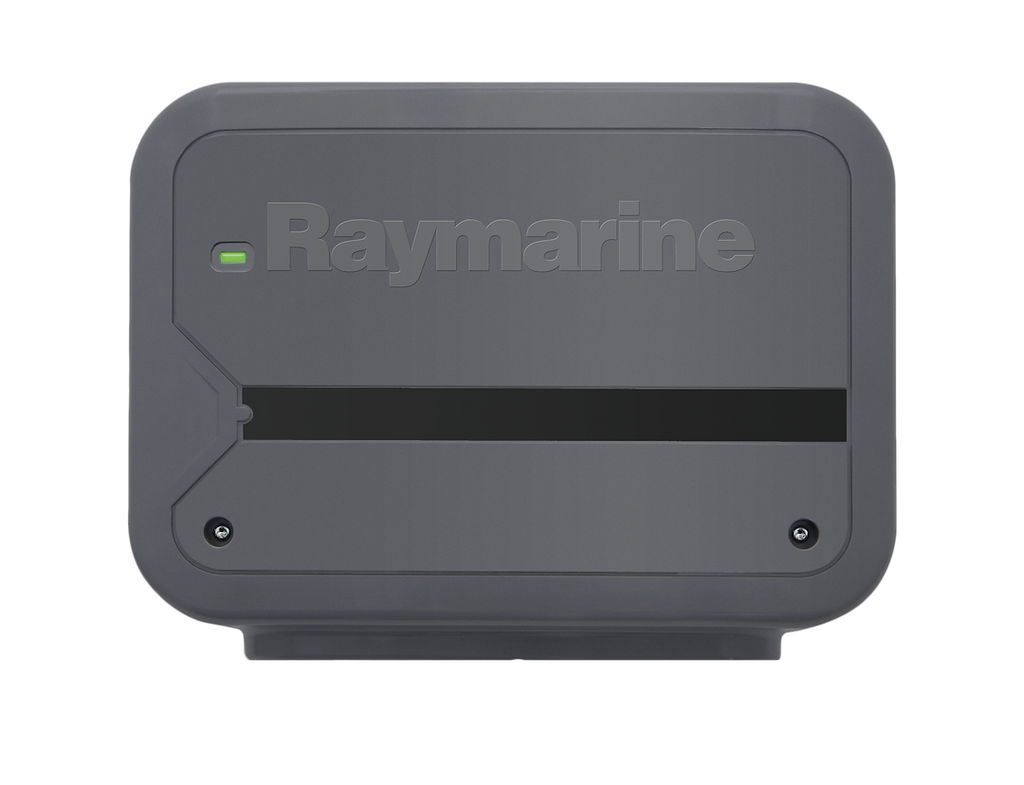

The Raymarine EV-100 Wheel Pilot is a comprehensive autopilot system designed specifically for small to medium wheel-steered sailboats. This system features an externally mounted drive that connects directly to the steering wheel, allowing for straightforward installation in the cockpit. The EV-100 utilizes the intelligent EV-1 sensor core and the ACU-100 actuator control unit to provide precise autopilot control, ensuring reliable navigation on the water.
This autopilot system is rated for boats with a displacement of up to 16,500 pounds, making it suitable for a variety of sailing vessels. The EV-100 is compatible with SeaTalk and NMEA2000 networks, enabling seamless integration with other sailing instruments and chartplotters. The design eliminates the need for complicated setup or calibration, allowing users to focus on their sailing experience.

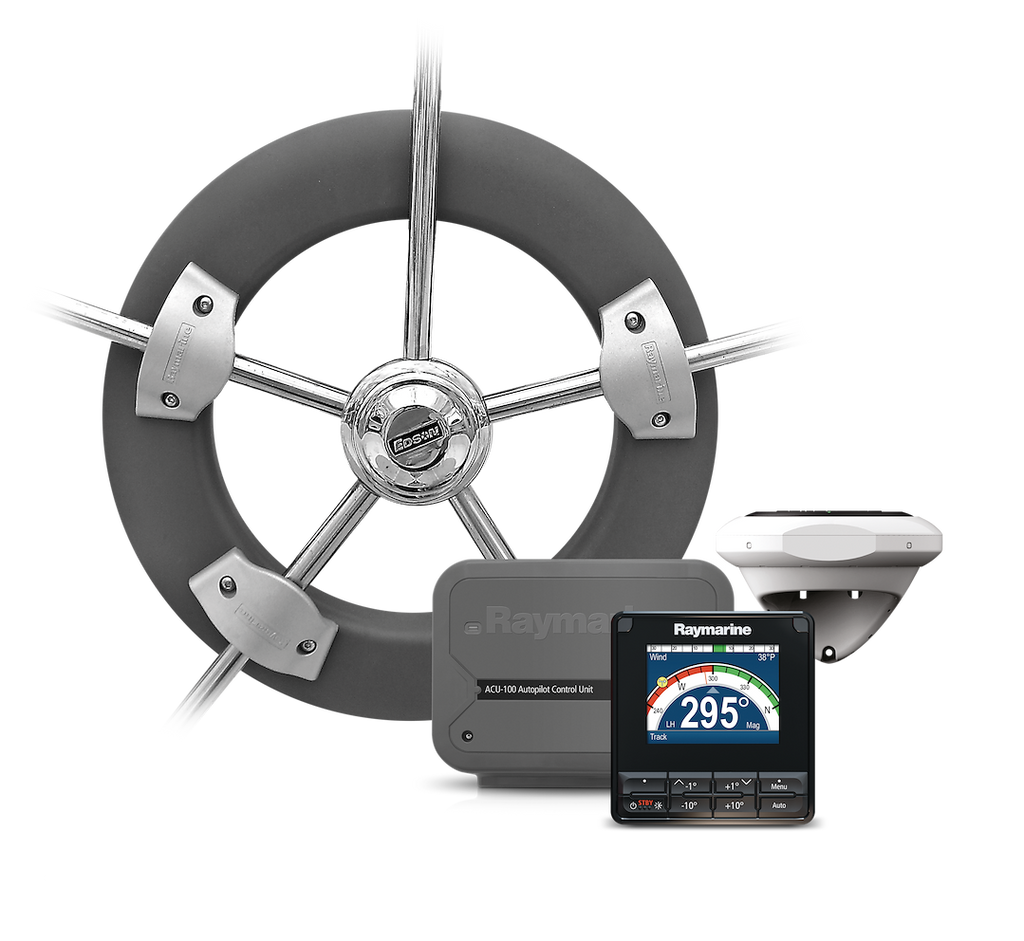

The EV-100 Wheel Pilot is available with the p70s autopilot control head or can be paired with a Raymarine Axiom chartplotter for full control. With its IPX2 waterproof connector panel and IPX6 waterproof drive electronics, this system is built to withstand the marine environment, ensuring durability and performance.
Features
- Rated For Wheel-Steered Sailboats Up To 16,500 Pound Displacement
- Designed For Cockpit Installations
- SeaTalk/NMEA2000 For Networking With Sailing Instruments And Chartplotters
- Requires No Complicated Setup Or Autopilot Calibration
Specifications
- Manufacturer: Raymarine
- Manufacturer Part Number: T70152
- Compatibility: Small To Medium Wheel-Steered Sailboats
- Dimension: 7-1/8 Inch Width X 5-1/2 Inch Height X 2 Inch Depth
- Voltage Rating: 12 Volt
