Raymarine Autopilot Control Unit (MPN: E70430)

Reliable power delivery for hydraulic steering systems in marine applications.

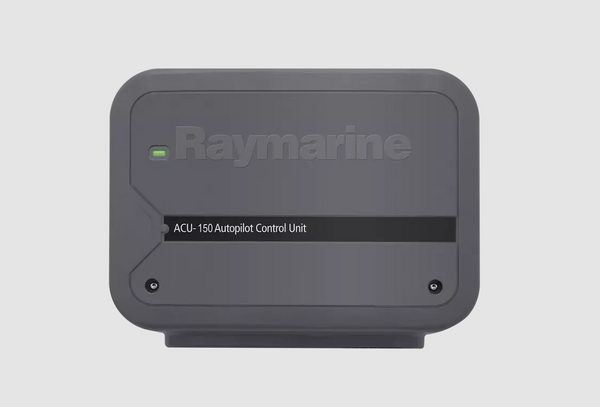

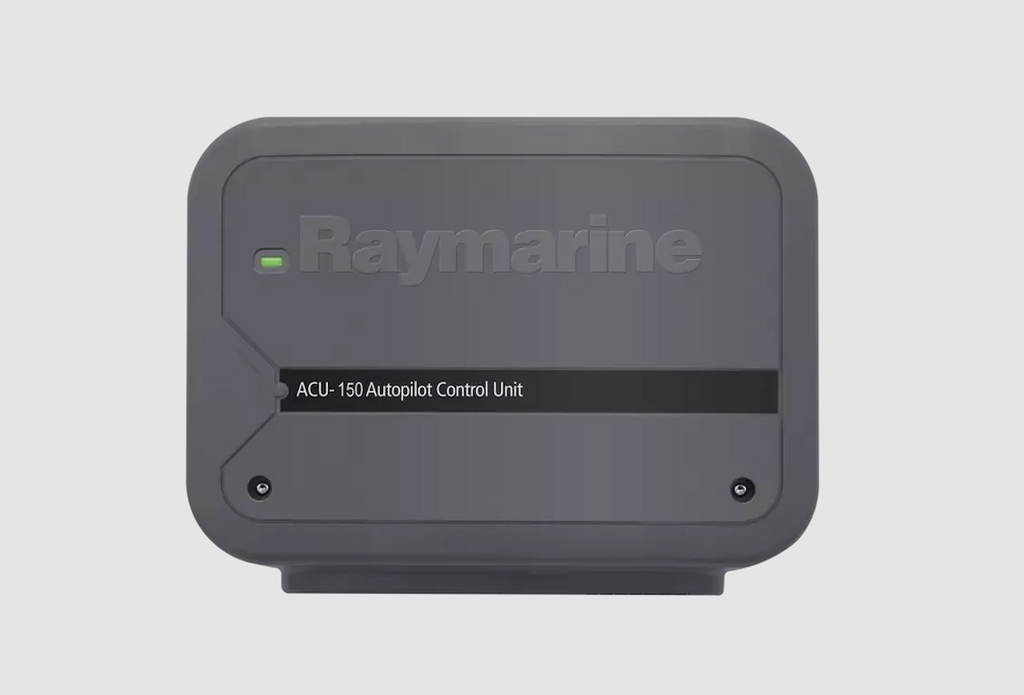

The Raymarine ACU-150 is an essential component for Evolution autopilots, specifically designed for vessels equipped with hydraulic steering systems. This unit integrates the main power and drive electronics, ensuring a direct connection to the vessel's steering system and a 12 Volt DC electrical source. It is compatible with Type 1 hydraulic drive units, making it suitable for steering systems with a ram capacity ranging from 4.9 to 14.0 cubic inches.

The ACU-150 not only delivers reliable autopilot drive power but also provides power to the SeaTalk(NG) bus, enhancing the overall functionality of the autopilot system. With a maximum continuous output of 12 amperes, this unit is engineered to perform in demanding marine environments, ensuring longevity and reliability. Its IPX2 waterproof connector panel and IPX6 waterproof drive electronics further enhance its durability, making it a robust choice for marine applications.

For optimal performance, the ACU-150 should be combined with an EV-1 sensor, autopilot control head, and Type 1 hydraulic pump, creating a comprehensive autopilot system. This configuration is designed to meet the needs of modern vessels, providing precise control and dependable operation in various sea conditions.

Features

• Delivers Reliable Autopilot Drive Power And Also Provides Power To The SeaTalk Bus
• Maximum Continuous 12 Ampere At Supply Voltage
• High-Performance Products Proven In The Harshest Of Environments
• Built To Last Longer Life

Specifications

• Manufacturer: Raymarine
• Manufacturer Part Number: E70430
• Compatibility: Raymarine p70Rs Autopilot Control Head
• Function: Delivers Reliable Autopilot Drive Power And Also Provides Power To The SeaTalk(NG) Bus

Technical Documents

• Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0.pdf
