Rancho Shock Absorber (MPN: RS77808)

Precision-engineered monotube struts for enhanced handling and durability.

The Rancho Shock Absorber RS7000MT is designed for both on-road and off-road applications, providing superior performance through its nitrogen gas charged monotube construction. This shock absorber features a 14 millimeter hardened chrome piston rod that resists scuffs and corrosion, ensuring longevity and reliability in extreme conditions. The integrated dirt wiper sealing system effectively prevents moisture and debris from contaminating the internal components, which is crucial for maintaining optimal performance over time.

With a full-floating dividing piston and high-pressure nitrogen gas, the RS7000MT maintains constant pressure against the hydraulic oil, significantly reducing aeration and shock fade. This design allows for cooler operation and improved vehicle control, making it suitable for larger wheel and tire packages. The internal rebound bumper and shouldered rubber bushings work together to minimize noise, vibration, and ride harshness, enhancing overall comfort.

The shock absorber is built with a large 2 inch monotube body filled with all-weather fluid, capable of withstanding extreme temperatures ranging from -40 to 248 degrees Fahrenheit. Its application-specific mounting ensures a straightforward installation process without the need for additional hardware. The black satin finish, complemented by the distinctive Rancho red logo, adds a visually appealing touch to the vehicle's suspension system.

Features

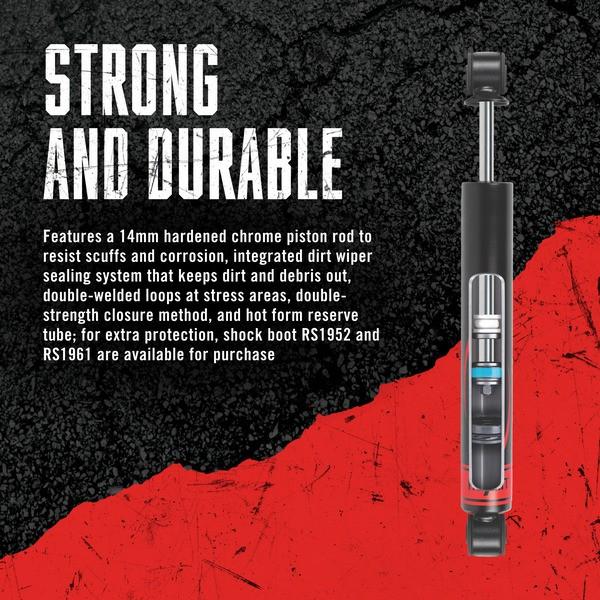

• Features A 14 Millimeter Hardened Chrome Piston Rod To Resist Scuffs And Corrosion, Double-Welded Loops At Stress Areas, Double-Strength Closure Method, And Hot Form Reserve Tube
• Full-Floating Dividing Piston And High-Pressure Nitrogen Gas Maintains Constant Pressure Against The Hydraulic Oil, Reducing Aeration And Shock Fade
• Sealing System With Integrated Dirt Wiper Helps Keep Moisture, Dirt And Debris From Being Ingested Into The Shock And Contaminating The Oil And Destroying The Internal Seal

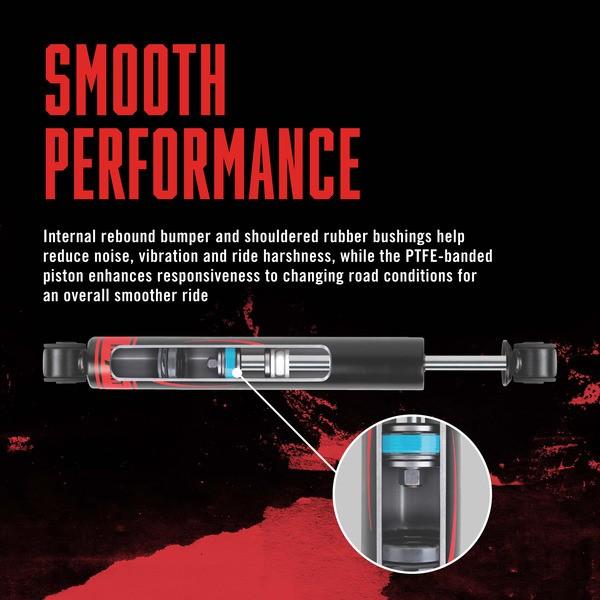

• Internal Rebound Bumper And Shouldered Rubber Bushings Help Reduce Noise, Vibration And Ride Harshness

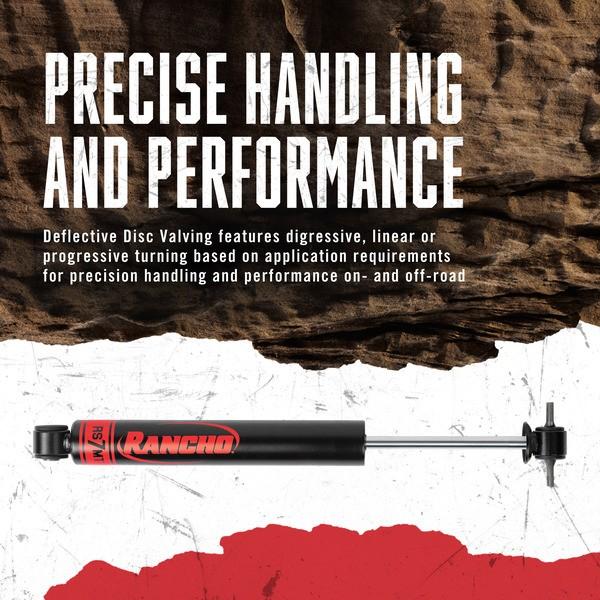

• Deflective Disc Valving Features Digressive, Linear Or Progressive Turning Based On Application Requirements For Precision Handling And Performance On- And Off-Road
• Black Satin Finish With Distinctive Rancho Red Logo For An Eye-Catching Look That Stands Out

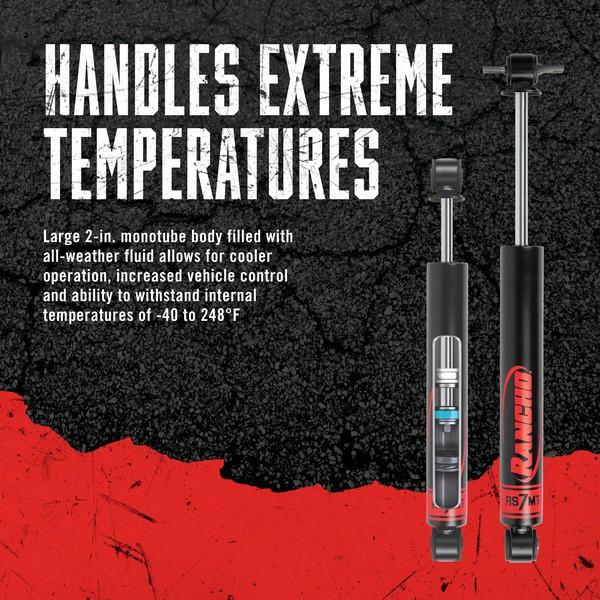

• Large 2 Inch Monotube Body Filled With All-Weather Fluid Allows For Cooler Operation, Increased Vehicle Control, And Ability To Withstand Internal Temperatures Of -40 To 248 Degree Fahrenheit
• Designed To Fit Right Out Of The Box, Application-Specific Mounting Installs Easily With No Need For Installing Sleeves Or Extra Hardware

Specifications

• Manufacturer: Rancho
• Manufacturer Part Number: RS77808
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 21.06 Inch
• Compressed Length (IN): 15.31 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Clevis
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Black
• Rod Diameter (IN): 9/16 Inch
• Valving Type: Non Adjustable Valving
• Rod Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2009-2010 Dodge Ram 1500
• 2011-2018 Ram 1500
• 2024-2024 Ram 1500 Classic
• 2019-2023 Ram 1500 Classic- Old Model

Technical Documents

• FORM01184T.pdf
