Rancho Shock Absorber RS7000MT (MPN: RS77064)

Precision-engineered monotube struts for superior handling and durability.

The Rancho RS7000MT is a nitrogen gas charged monotube shock absorber designed for both on-road and off-road applications. Its construction features a 14 millimeter hardened chrome piston rod that resists scuffs and corrosion, ensuring longevity and reliability under extreme conditions. The shock absorber is equipped with a full-floating dividing piston and high-pressure nitrogen gas, which maintains constant pressure against the hydraulic oil, effectively reducing aeration and shock fade during use.

This model includes an integrated dirt wiper sealing system that prevents moisture, dirt, and debris from contaminating the internal oil, thereby protecting the internal seals. The internal rebound bumper and shouldered rubber bushings work together to minimize noise, vibration, and ride harshness, enhancing overall comfort. With a large 2 inch monotube body filled with all-weather fluid, the RS7000MT operates cooler and provides increased vehicle control, capable of withstanding temperatures ranging from -40 to 248 degrees Fahrenheit.

Designed for easy installation, the Rancho RS7000MT fits right out of the box with application-specific mounting, eliminating the need for additional hardware or modifications. Its black satin finish, complemented by the distinctive Rancho red logo, adds an aesthetic appeal while maintaining functionality. This shock absorber is a reliable choice for those seeking enhanced performance and durability in their vehicle's suspension system.

Features

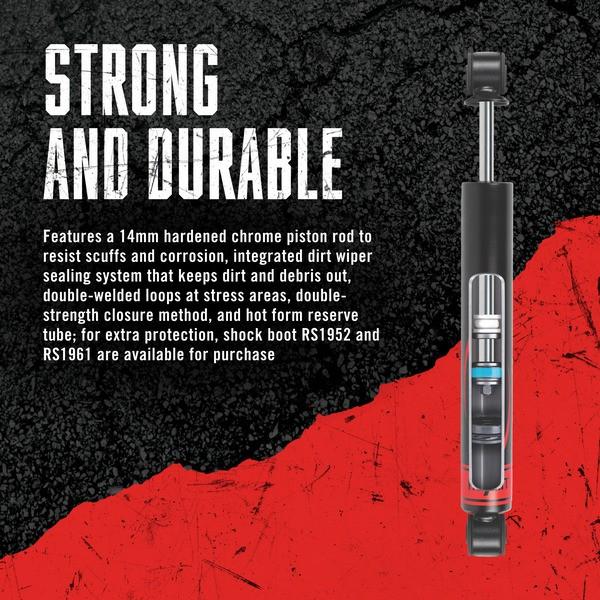

• Features A 14 Millimeter Hardened Chrome Piston Rod To Resist Scuffs And Corrosion, Double-Welded Loops At Stress Areas, Double-Strength Closure Method, And Hot Form Reserve Tube
• Full-Floating Dividing Piston And High-Pressure Nitrogen Gas Maintains Constant Pressure Against The Hydraulic Oil, Reducing Aeration And Shock Fade
• Sealing System With Integrated Dirt Wiper Helps Keep Moisture, Dirt And Debris From Being Ingested Into The Shock And Contaminating The Oil And Destroying The Internal Seal

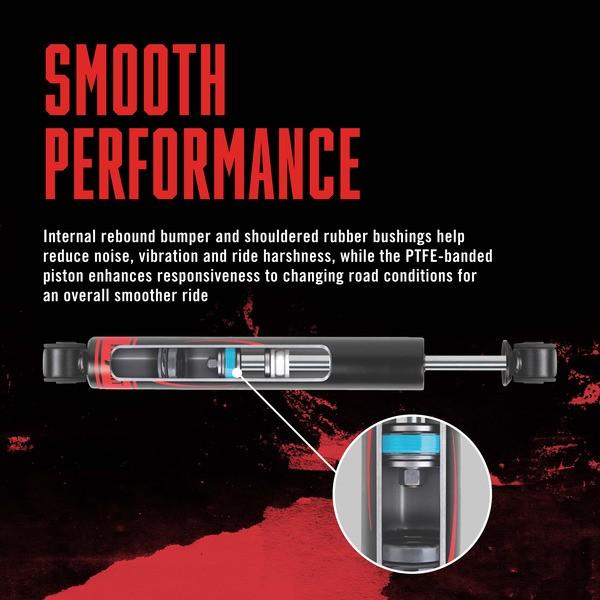

• Internal Rebound Bumper And Shouldered Rubber Bushings Help Reduce Noise, Vibration And Ride Harshness

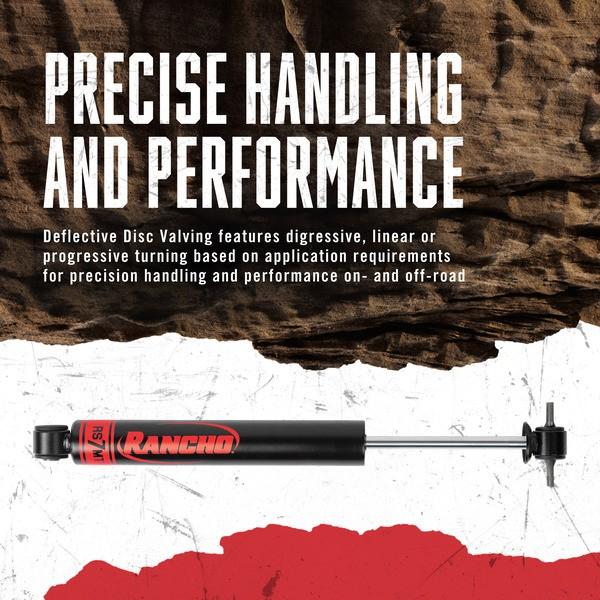

• Deflective Disc Valving Features Digressive, Linear Or Progressive Turning Based On Application Requirements For Precision Handling And Performance On- And Off-Road
• Black Satin Finish With Distinctive Rancho Red Logo For An Eye-Catching Look That Stands Out

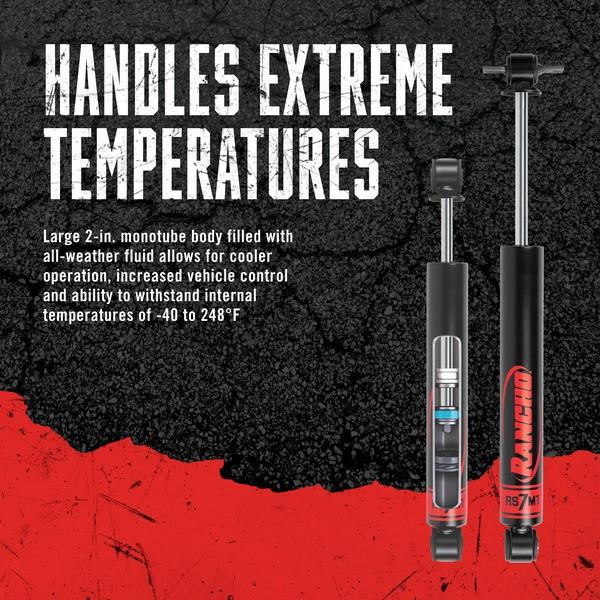

• Large 2 Inch Monotube Body Filled With All-Weather Fluid Allows For Cooler Operation, Increased Vehicle Control, And Ability To Withstand Internal Temperatures Of -40 To 248 Degree Fahrenheit
• Designed To Fit Right Out Of The Box, Application-Specific Mounting Installs Easily With No Need For Installing Sleeves Or Extra Hardware

Specifications

• Manufacturer: Rancho
• Manufacturer Part Number: RS77064
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 25.91 Inch
• Compressed Length (IN): 17.2 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Cross Pin
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Black
• Rod Diameter (IN): 1.81 Inch
• Valving Type: Non Adjustable Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2018-2025 Jeep Wrangler JL
