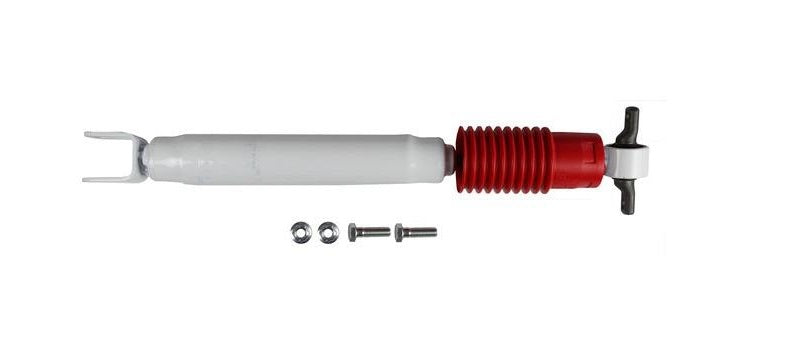

Rancho Shock Absorber RS5000X (MPN: RS55380)

Advanced nitrogen gas charged shock for enhanced vehicle performance and control.

The Rancho Shock Absorber RS5000X features a patented rebound valving system that significantly improves vehicle handling both on and off-road. This shock absorber is designed with a tuned compression control valve that harmonizes the shock's motion with the vehicle's dynamics, ensuring stability and control across various terrains. The enlarged 2-1/4 inch twin tube body increases fluid capacity, allowing for cooler operation and enhanced performance at different speeds.

Gas pressurization minimizes air-to-oil mixture, reducing the risk of foaming and shock fade, while providing a slight boost in spring rate. The 16 millimeter nitro-carburized rod enhances durability against scuffing and corrosion, contributing to the shock's longevity. With a full-displaced 35 millimeter bore and a 1-3/8 inch diameter sintered iron piston, this shock absorber offers heightened control and responsiveness to changing road conditions.

Features

• Progressive Engagement Valving Will Further Engage To Maintain Control And Stability
• Tuned Compression Control Valve: The Precision-Tuned Shim Stacked Valving Allows The Motion Of The Shock To Work In Harmony With The Vehicle During On- And Off-road Driving
• Enlarged 2-1/4 Inch Twin Tube Body: A Larger Shock Body Allows For Increased Fluid Capacity To Operate Cooler And To Increase Vehicle Control And Performance At Varying Speeds And Terrains
• Gas Pressurization Of Shock: Has A Variety Of Advantages Including Minimizing Air-To-Oil Mixture That Can Cause Foaming And Shock Fade; Gas Pressurization Also Provides A Mild Boost Of Spring Rate To
• 16 Millimeter Nitro-Carburized Rod: From Increased Scuffing Resistance To Additional Protection Against Corrosion, The Process Enhances The Shock’s Overall Durability
• Full-Displaced 35 Millimeter Bore: Helps To Provide Heightened Control Of Shock Motion Due Largely To The Expanded Piston Area
• 1-3/8 Inch Diameter Sintered Iron Piston: Brings Increased Structural Conformity To Each Piston
• Rebound Bumper: Greatly Reduces Wear And Tear During On And Off Road Driving
• Glass-Filled, Fluon Banded Piston: Provides Smoother Piston Travel And Greater Responsiveness To Changing Road Conditions

Specifications

• Manufacturer: Rancho
• Manufacturer Part Number: RS55380
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 23 Inch
• Compressed Length (IN): 16.68 Inch
• Upper Mounting Style: Cross Pin
• Lower Mounting Style: Clevis
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Twin Tube
• Body Color: White
• Rod Diameter (IN): 5/8 Inch
• Valving Type: Application Specific Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: Yes
• Includes Boot: Yes
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2011-2023 Chevrolet Silverado 2500 HD
• 2011-2023 Chevrolet Silverado 3500 HD
• 2011-2015 GMC Sierra 2500 HD
• 2020-2023 GMC Sierra 2500 HD
• 2011-2015 GMC Sierra 3500 HD
• 2020-2023 GMC Sierra 3500 HD
