Advanced nitrogen gas charged shock for enhanced vehicle performance

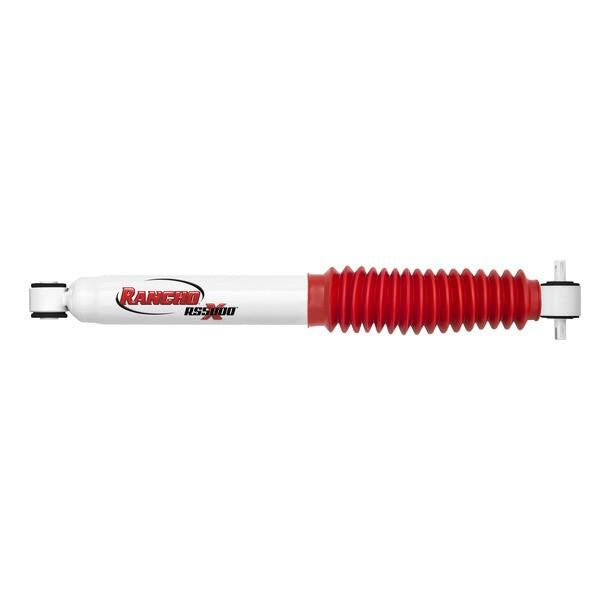

The Rancho RS5000X Shock Absorber is engineered to improve vehicle handling and performance both on and off-road. Featuring a patented rebound valving system, this shock absorber provides a unique compression phase that enhances stability and control. The progressive engagement valving ensures that the shock engages progressively, maintaining optimal control during various driving conditions.
Constructed with an enlarged 2-1/4 inch twin tube body, the RS5000X allows for increased fluid capacity, which helps to operate cooler and improves performance across different terrains. The gas pressurization minimizes air-to-oil mixture, reducing the risk of foaming and shock fade, while also providing a slight boost in spring rate for better handling.
The shock features a 16 millimeter nitro-carburized rod that enhances durability and resistance to scuffing and corrosion. With a full-displaced 35 millimeter bore, the RS5000X offers heightened control of shock motion, ensuring a smoother ride. The glass-filled, Fluon banded piston contributes to smoother piston travel and responsiveness to changing road conditions, making it a reliable choice for vehicle-specific applications.
Features
- Progressive Engagement Valving Will Further Engage To Maintain Control And Stability
- Tuned Compression Control Valve: The Precision-Tuned Shim Stacked Valving Allows The Motion Of The Shock To Work In Harmony With The Vehicle During On- And Off-road Driving
- Enlarged 2-1/4 Inch Twin Tube Body: A Larger Shock Body Allows For Increased Fluid Capacity To Operate Cooler And To Increase Vehicle Control And Performance At Varying Speeds And Terrains
- Gas Pressurization Of Shock: Has A Variety Of Advantages Including Minimizing Air-To-Oil Mixture That Can Cause Foaming And Shock Fade; Gas Pressurization Also Provides A Mild Boost Of Spring Rate To
- 16 Millimeter Nitro-Carburized Rod: From Increased Scuffing Resistance To Additional Protection Against Corrosion, The Process Enhances The Shock’s Overall Durability
- Full-Displaced 35 Millimeter Bore: Helps To Provide Heightened Control Of Shock Motion Due Largely To The Expanded Piston Area
- 1-3/8 Inch Diameter Sintered Iron Piston: Brings Increased Structural Conformity To Each Piston
- Rebound Bumper: Greatly Reduces Wear And Tear During On And Off Road Driving
- Glass-Filled, Fluon Banded Piston: Provides Smoother Piston Travel And Greater Responsiveness To Changing Road Conditions
Specifications
- Manufacturer: Rancho
- Manufacturer Part Number: RS55328
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 22.56 Inch
- Compressed Length (IN): 14.56 Inch
- Upper Mounting Style: Cross Pin
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Twin Tube
- Body Color: White
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: Yes
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2007-2018 Jeep Wrangler JK
