Advanced nitrogen gas charged shock for enhanced vehicle control and performance.

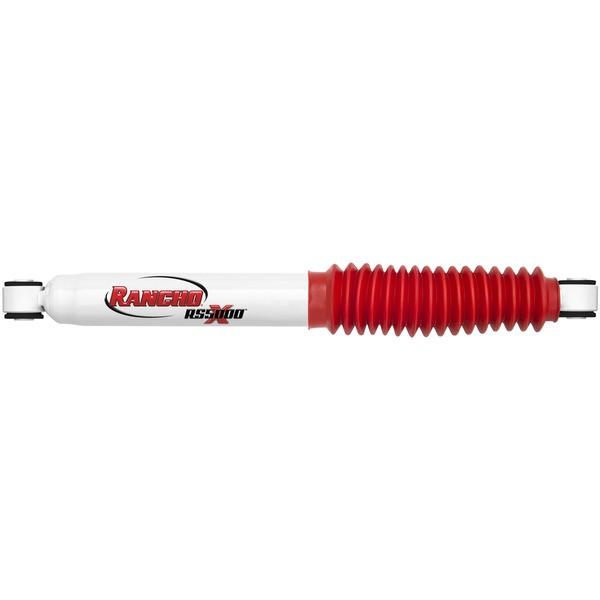

The Rancho RS5000X shock absorber features a patented rebound valving system that significantly improves vehicle handling both on and off-road. This innovative design incorporates a tuned compression control valve, allowing the shock to work in harmony with the vehicle's dynamics, ensuring stability and control during various driving conditions. The enlarged 2-1/4 inch twin tube body increases fluid capacity, which helps maintain optimal operating temperatures and enhances performance across different terrains.
Gas pressurization minimizes the risk of air-to-oil mixture, reducing foaming and shock fade, while providing a slight boost in spring rate. The 16 millimeter nitro-carburized rod enhances durability by offering increased scuffing resistance and protection against corrosion. Additionally, the full-displaced 35 millimeter bore and 1-3/8 inch diameter sintered iron piston contribute to improved shock motion control and structural integrity.
Designed for ease of installation, the RS5000X includes shock boots for added protection and is built with application-specific valving to cater to a wide range of vehicles. The shock's robust construction and advanced features make it a reliable choice for those seeking enhanced performance and durability in their suspension system.
Features
- Progressive Engagement Valving Will Further Engage To Maintain Control And Stability
- Tuned Compression Control Valve: The Precision-Tuned Shim Stacked Valving Allows The Motion Of The Shock To Work In Harmony With The Vehicle During On- And Off-road Driving
- Enlarged 2-1/4 Inch Twin Tube Body: A Larger Shock Body Allows For Increased Fluid Capacity To Operate Cooler And To Increase Vehicle Control And Performance At Varying Speeds And Terrains
- Gas Pressurization Of Shock: Has A Variety Of Advantages Including Minimizing Air-To-Oil Mixture That Can Cause Foaming And Shock Fade; Gas Pressurization Also Provides A Mild Boost Of Spring Rate To
- 16 Millimeter Nitro-Carburized Rod: From Increased Scuffing Resistance To Additional Protection Against Corrosion, The Process Enhances The Shock’s Overall Durability
- Full-Displaced 35 Millimeter Bore: Helps To Provide Heightened Control Of Shock Motion Due Largely To The Expanded Piston Area
- 1-3/8 Inch Diameter Sintered Iron Piston: Brings Increased Structural Conformity To Each Piston
- Rebound Bumper: Greatly Reduces Wear And Tear During On And Off Road Driving
- Glass-Filled, Fluon Banded Piston: Provides Smoother Piston Travel And Greater Responsiveness To Changing Road Conditions
Specifications
- Manufacturer: Rancho
- Manufacturer Part Number: RS55269
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 27-5/8 Inch
- Compressed Length (IN): 17 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Semi-Universal
- Internal Design: Twin Tube
- Body Color: White
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: Yes
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 1999-2007 Chevrolet Silverado 1500
- 2007-2007 Chevrolet Silverado 1500 Classic
- 2006-2006 Dodge Ram 1500
- 2003-2009 Dodge Ram 2500
- 2003-2009 Dodge Ram 3500
- 1999-2007 GMC Sierra 1500
- 2007-2007 GMC Sierra 1500 Classic
- 2003-2009 Hummer H2
