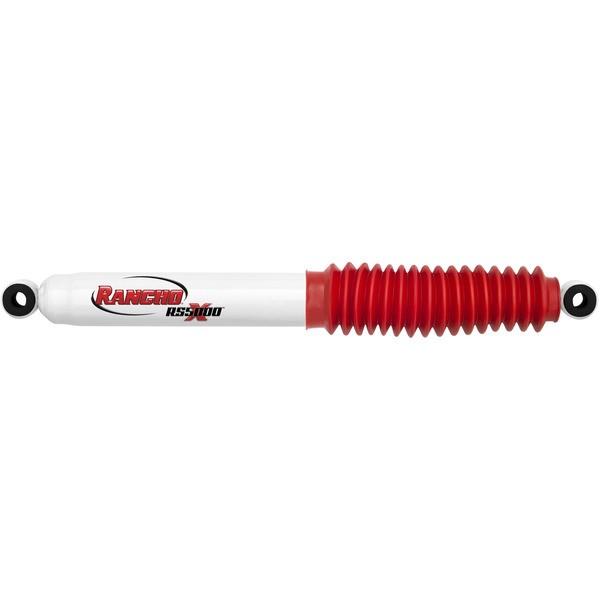

Rancho Shock Absorber RS5000X (MPN: RS55113)

Advanced nitrogen gas charged shock for enhanced vehicle performance and control.

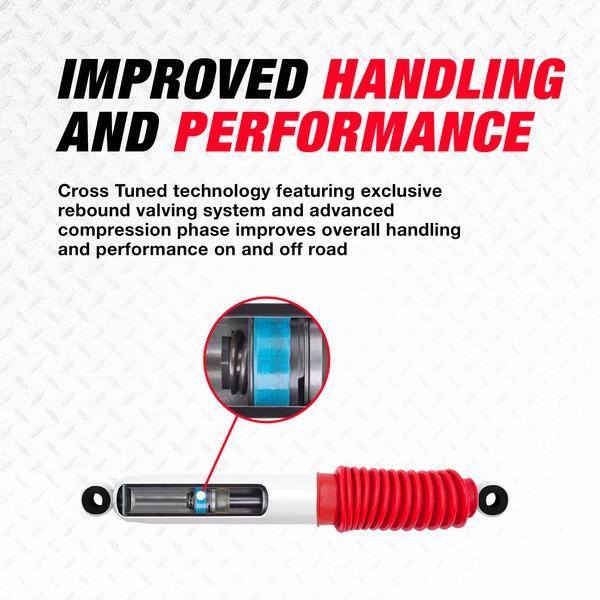

The Rancho Shock Absorber RS5000X features a patented rebound valving system that significantly improves vehicle handling both on and off-road. This shock absorber is designed with a tuned compression control valve that harmonizes the shock's motion with the vehicle's dynamics, ensuring stability and control across various terrains. The enlarged 2-1/4 inch twin tube body increases fluid capacity, allowing for cooler operation and enhanced performance at different speeds.

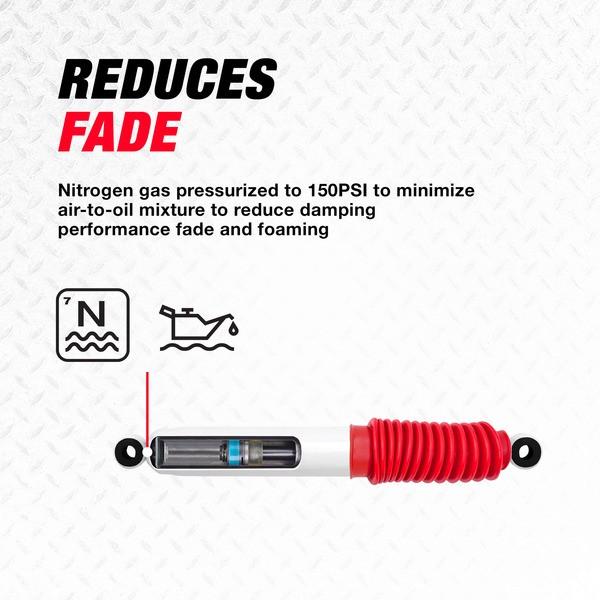

Gas pressurization minimizes air-to-oil mixture, reducing the risk of foaming and shock fade, while providing a slight boost in spring rate. The 16 millimeter nitro-carburized rod enhances durability by increasing scuff resistance and protecting against corrosion. Additionally, the full-displaced 35 millimeter bore and 1-3/8 inch diameter sintered iron piston contribute to improved shock motion control and structural integrity.

The RS5000X also includes a rebound bumper that minimizes wear during driving, and a glass-filled, Fluon banded piston for smoother travel and responsiveness to changing road conditions. This shock absorber is a single unit, designed for semi-universal application, and is equipped with shock boots for added protection.

Features

• Progressive Engagement Valving Will Further Engage To Maintain Control And Stability
• Tuned Compression Control Valve: The Precision-Tuned Shim Stacked Valving Allows The Motion Of The Shock To Work In Harmony With The Vehicle During On- And Off-road Driving

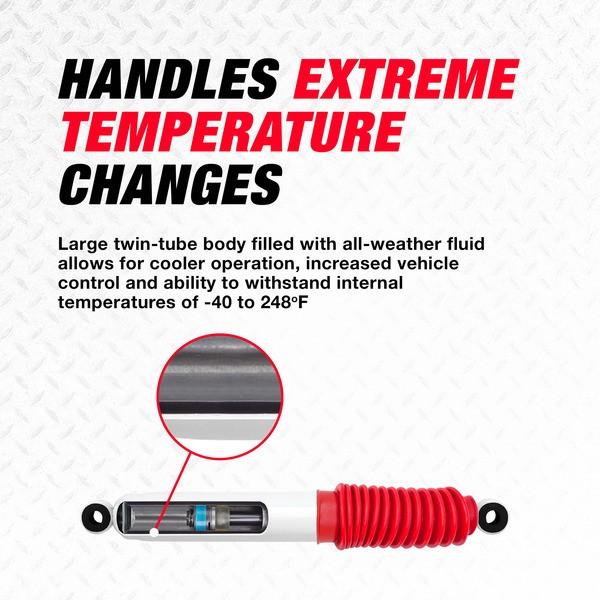

• Enlarged 2-1/4 Inch Twin Tube Body: A Larger Shock Body Allows For Increased Fluid Capacity To Operate Cooler And To Increase Vehicle Control And Performance At Varying Speeds And Terrains
• Gas Pressurization Of Shock: Has A Variety Of Advantages Including Minimizing Air-To-Oil Mixture That Can Cause Foaming And Shock Fade; Gas Pressurization Also Provides A Mild Boost Of Spring Rate To

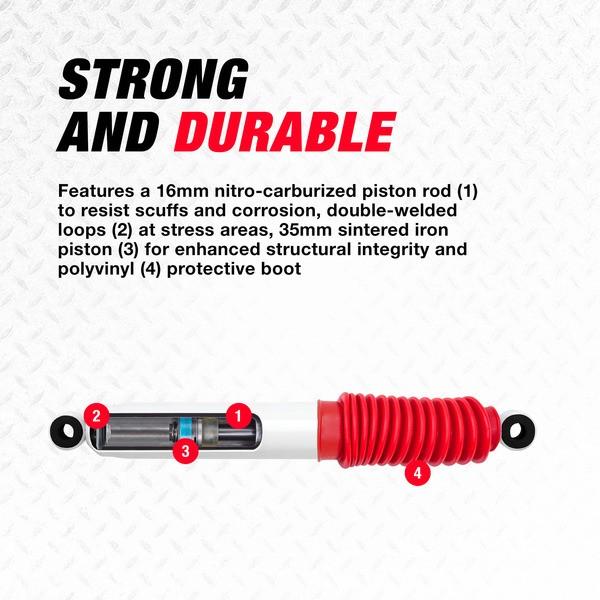

• 16 Millimeter Nitro-Carburized Rod: From Increased Scuffing Resistance To Additional Protection Against Corrosion, The Process Enhances The Shock’s Overall Durability

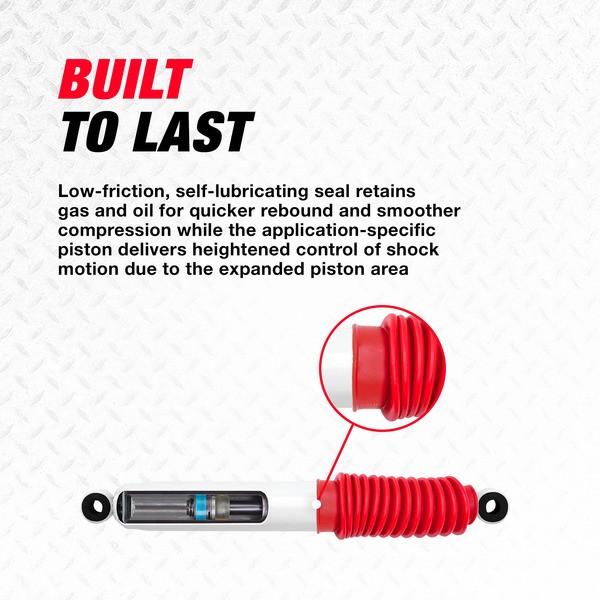

• Full-Displaced 35 Millimeter Bore: Helps To Provide Heightened Control Of Shock Motion Due Largely To The Expanded Piston Area
• 1-3/8 Inch Diameter Sintered Iron Piston: Brings Increased Structural Conformity To Each Piston

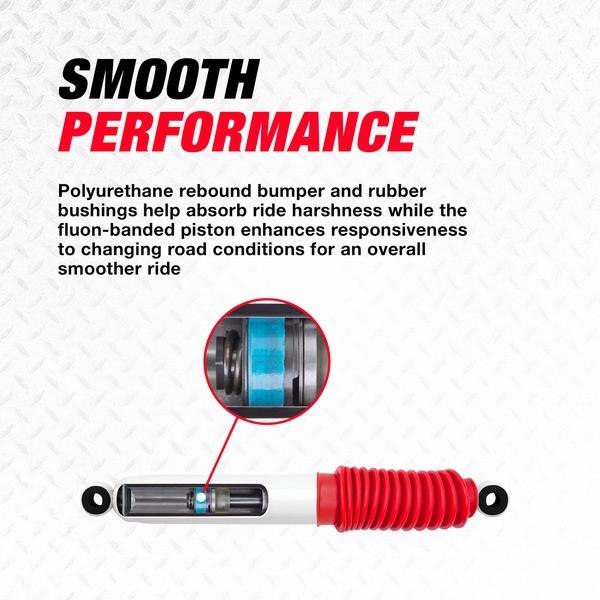

• Rebound Bumper: Greatly Reduces Wear And Tear During On And Off Road Driving
• Glass-Filled, Fluon Banded Piston: Provides Smoother Piston Travel And Greater Responsiveness To Changing Road Conditions

Specifications

• Manufacturer: Rancho
• Manufacturer Part Number: RS55113
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 20-1/4 Inch
• Compressed Length (IN): 12.91 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Semi-Universal
• Internal Design: Twin Tube
• Body Color: White
• Rod Diameter (IN): 5/8 Inch
• Valving Type: Application Specific Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: Yes
• Includes Boot: Yes
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1987-1991 Chevrolet Blazer
• 1967-1972 Chevrolet C10 Pickup
• 1967-1972 Chevrolet C20 Pickup
• 1967-1972 Chevrolet C30 Pickup
• 1975-1995 Chevrolet G10
• 1970-1974 Chevrolet G10 Van
• 1975-1995 Chevrolet G20
• 1970-1974 Chevrolet G20 Van
• 1975-1991 Chevrolet G30
• 1970-1974 Chevrolet G30 Van
• 1981-1986 Chevrolet K10
• 1981-1986 Chevrolet K10 Suburban
• 1981-1986 Chevrolet K20
• 1981-1986 Chevrolet K20 Suburban
• 1981-1986 Chevrolet K5 Blazer
• 1975-1982 Chevrolet LUV
• 1972-1974 Chevrolet Luv Pickup
• 1987-1987 Chevrolet V10
• 1988-1988 Chevrolet V10 Suburban
• 1989-1991 Chevrolet V1500 Suburban
• 1987-1987 Chevrolet V20
• 1987-1988 Chevrolet V20 Suburban
• 1989-1991 Chevrolet V2500 Suburban
• 1975-1980 Dodge B100
• 1971-1974 Dodge B100 Van
• 1981-1994 Dodge B150
• 1995-1998 Dodge B1500
• 1975-1980 Dodge B200
• 1971-1974 Dodge B200 Van
• 1981-1994 Dodge B250
• 1995-1998 Dodge B2500
• 1975-1980 Dodge B300
• 1971-1974 Dodge B300 Van
• 1981-1994 Dodge B350
• 1995-1998 Dodge B3500
• 1999-2003 Dodge Ram 1500 Van
• 1999-2003 Dodge Ram 2500 Van
• 1999-2003 Dodge Ram 3500 Van
• 1966-1979 Ford Bronco
• 1961-1963 Ford F-100
• 1961-1964 Ford F-250
• 1967-1972 GMC C15/C1500 Pickup
• 1967-1972 GMC C25/C2500 Pickup
• 1967-1972 GMC C35/C3500 Pickup
• 1975-1978 GMC G15
• 1970-1974 GMC G15/G1500 Van
• 1979-1995 GMC G1500
• 1975-1978 GMC G25
• 1970-1974 GMC G25/G2500 Van
• 1979-1995 GMC G2500
• 1975-1978 GMC G35
• 1971-1974 GMC G35/G3500 Van
• 1979-1991 GMC G3500
• 1981-1991 GMC Jimmy
• 1981-1986 GMC K1500
• 1981-1986 GMC K1500 Suburban
• 1981-1986 GMC K2500
• 1981-1986 GMC K2500 Suburban
• 1987-1987 GMC V1500
• 1987-1991 GMC V1500 Suburban
• 1987-1987 GMC V2500
• 1987-1991 GMC V2500 Suburban
• 1961-1971 International Scout
• 1971-1980 International Scout II
• 1991-1995 Isuzu Pickup
• 1959-1960 Jeep CJ3
• 1959-1960 Jeep CJ5
• 1966-1983 Jeep CJ5
• 1959-1960 Jeep CJ6
• 1966-1975 Jeep CJ6
• 1976-1986 Jeep CJ7
• 1972-1974 Jeep DJ5
• 1963-1967 Jeep Gladiator
• 1984-1991 Jeep Grand Wagoneer
• 1974-1986 Jeep J10
• 1974-1986 Jeep J20
• 1969-1971 Jeep Jeepster
• 1981-1985 Jeep Scrambler
• 1961-1962 Jeep Utility
• 1963-1967 Jeep Wagoneer
• 1972-1983 Jeep Wagoneer
• 1946-1950 Jeep Willys
• 1987-1995 Jeep Wrangler YJ
• 1983-1986 Nissan 720
• 2005-2010 Nissan Armada
• 1986-1994 Nissan D21
• 1998-2003 Nissan Frontier
• 2004-2004 Nissan Pathfinder Armada
• 1995-1997 Nissan Pickup
• 1975-1980 Plymouth PB100
• 1974-1974 Plymouth PB100 Van
• 1981-1983 Plymouth PB150
• 1975-1980 Plymouth PB200
• 1974-1974 Plymouth PB200 Van
• 1981-1983 Plymouth PB250
• 1974-1978 Plymouth Trailduster
• 1980-1981 Plymouth Trailduster
• 1967-1984 Toyota Land Cruiser
