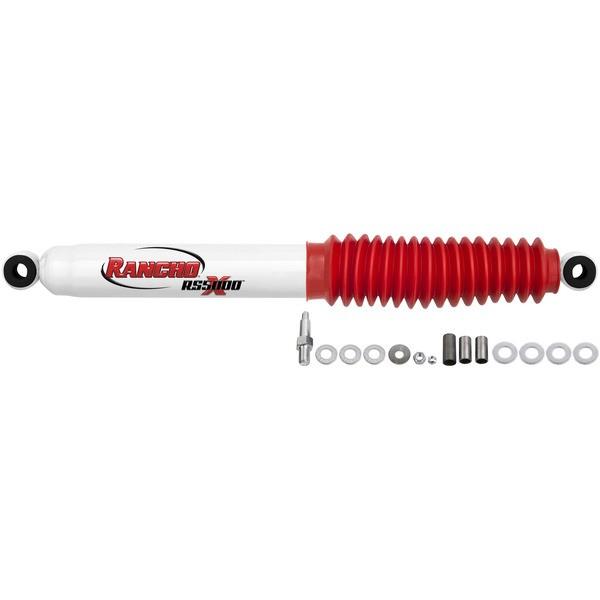

Rancho Shock Absorber RS5000X (MPN: RS55112)

Advanced nitrogen gas charged shock for enhanced vehicle control and performance.

The Rancho Shock Absorber RS5000X features a patented rebound valving system that significantly improves vehicle handling both on and off-road. This shock absorber is designed with a tuned compression control valve that harmonizes the shock's motion with the vehicle's dynamics, ensuring stability and control across various terrains. The enlarged 2-1/4 inch twin tube body increases fluid capacity, allowing for cooler operation and enhanced performance at different speeds.

Gas pressurization minimizes air-to-oil mixture, reducing the risk of foaming and shock fade, while providing a slight boost in spring rate. The 16 millimeter nitro-carburized rod enhances durability by offering increased scuffing resistance and corrosion protection. Additionally, the full-displaced 35 millimeter bore and 1-3/8 inch diameter sintered iron piston contribute to improved control of shock motion, making this shock absorber a reliable choice for demanding driving conditions.

The Rancho RS5000X is equipped with a rebound bumper that minimizes wear during both on and off-road driving, and features a glass-filled, Fluon banded piston for smoother travel and responsiveness to changing road conditions. This shock absorber is a single unit, designed for easy installation and compatibility with a variety of vehicles.

Features

• Progressive Engagement Valving Will Further Engage To Maintain Control And Stability
• Tuned Compression Control Valve: The Precision-Tuned Shim Stacked Valving Allows The Motion Of The Shock To Work In Harmony With The Vehicle During On- And Off-road Driving
• Enlarged 2-1/4 Inch Twin Tube Body: A Larger Shock Body Allows For Increased Fluid Capacity To Operate Cooler And To Increase Vehicle Control And Performance At Varying Speeds And Terrains
• Gas Pressurization Of Shock: Has A Variety Of Advantages Including Minimizing Air-To-Oil Mixture That Can Cause Foaming And Shock Fade; Gas Pressurization Also Provides A Mild Boost Of Spring Rate To
• 16 Millimeter Nitro-Carburized Rod: From Increased Scuffing Resistance To Additional Protection Against Corrosion, The Process Enhances The Shock’s Overall Durability
• Full-Displaced 35 Millimeter Bore: Helps To Provide Heightened Control Of Shock Motion Due Largely To The Expanded Piston Area
• 1-3/8 Inch Diameter Sintered Iron Piston: Brings Increased Structural Conformity To Each Piston
• Rebound Bumper: Greatly Reduces Wear And Tear During On And Off Road Driving
• Glass-Filled, Fluon Banded Piston: Provides Smoother Piston Travel And Greater Responsiveness To Changing Road Conditions

Specifications

• Manufacturer: Rancho
• Manufacturer Part Number: RS55112
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 26 Inch
• Compressed Length (IN): 16.05 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Semi-Universal
• Internal Design: Twin Tube
• Body Color: White
• Rod Diameter (IN): 5/8 Inch
• Valving Type: Application Specific Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: Yes
• Includes Boot: Yes
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1969-1974 Chevrolet Blazer
• 1987-1991 Chevrolet Blazer
• 1975-1986 Chevrolet K10
• 1967-1974 Chevrolet K10 Pickup
• 1968-1986 Chevrolet K10 Suburban
• 1975-1986 Chevrolet K20
• 1967-1974 Chevrolet K20 Pickup
• 1968-1986 Chevrolet K20 Suburban
• 1968-1968 Chevrolet K30 Pickup
• 1975-1986 Chevrolet K5 Blazer
• 1987-1987 Chevrolet V10
• 1988-1988 Chevrolet V10 Suburban
• 1989-1991 Chevrolet V1500 Suburban
• 1987-1987 Chevrolet V20
• 1987-1988 Chevrolet V20 Suburban
• 1989-1991 Chevrolet V2500 Suburban
• 1997-2002 Ford Expedition
• 1980-1996 Ford F-150
• 1980-1996 Ford F-250
• 1986-1997 Ford F-350
• 1970-1991 GMC Jimmy
• 1975-1978 GMC K15
• 1975-1978 GMC K15 Suburban
• 1967-1974 GMC K15/K1500 Pickup
• 1968-1974 GMC K15/K1500 Suburban
• 1979-1986 GMC K1500
• 1979-1986 GMC K1500 Suburban
• 1975-1978 GMC K25
• 1975-1978 GMC K25 Suburban
• 1967-1974 GMC K25/K2500 Pickup
• 1969-1974 GMC K25/K2500 Suburban
• 1979-1986 GMC K2500
• 1979-1986 GMC K2500 Suburban
• 1968-1968 GMC K35/K3500 Pickup
• 1987-1987 GMC V1500
• 1987-1991 GMC V1500 Suburban
• 1987-1987 GMC V2500
• 1987-1991 GMC V2500 Suburban
• 2008-2009 Mazda B4000
• 1980-1983 Toyota Pickup
