Advanced nitrogen gas charged shock for improved vehicle handling and performance.

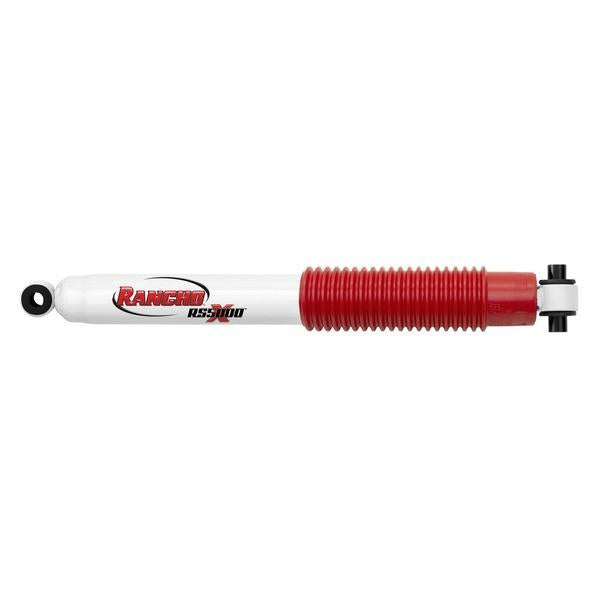

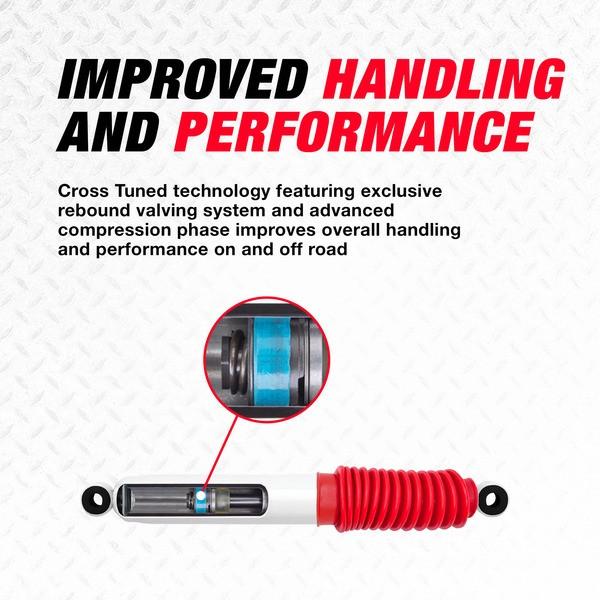

The Rancho RS5000X shock absorber features a patented rebound valving system and an advanced compression phase designed to enhance vehicle handling both on and off-road. This shock is nitrogen gas charged, providing consistent performance and a mild boost in spring rate, which contributes to improved ride quality and control. The enlarged twin tube body increases fluid capacity, allowing the shock to operate cooler and more efficiently across various terrains.
Incorporating dynamic rebound spring technology, the RS5000X ensures that the shock's motion works in harmony with the vehicle's dynamics. The precision-tuned compression control valve and progressive engagement valving allow for optimal performance at lower speeds and during the initial stages of travel. Additionally, the shock is equipped with a 16 millimeter nitro carburized rod for enhanced durability and resistance to scuffing and corrosion.
The Rancho RS5000X also includes a polyurethane rebound bumper to manage rebound motion during harsh driving conditions, while black natural rubber bushings absorb ride harshness and reduce road noise. With a low friction, self-lubricating seal, this shock provides an extra layer of protection against dirt and debris, ensuring longevity and reliability in performance.
Features
- Progressive Engagement Valving: At Lower Speeds Or In The Earlier Stages Of The Shock’s Travel, An Eccentric Disc In The Valve Shim Stacks Will Engage The Valving At Lower Frequencies
- Dynamic Rebound Spring (DRS) Technology: New DRS Technology Is A Unique Internal System
- Tuned Compression Control Valve: Precision Tuned Shim Stacked Valving Allows The Motion Of The Shock To Work In Harmony With The Vehicle During On And Off Road Driving

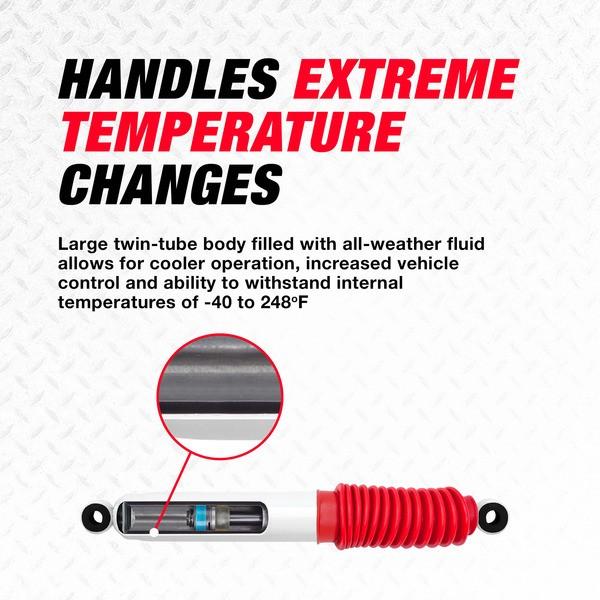

- Enlarged Twin Tube Body: A Larger Shock Body Allows For Increased Fluid Capacity To Operate Cooler And To Increase Vehicle Control And Performance At Varying Speeds And Terrains

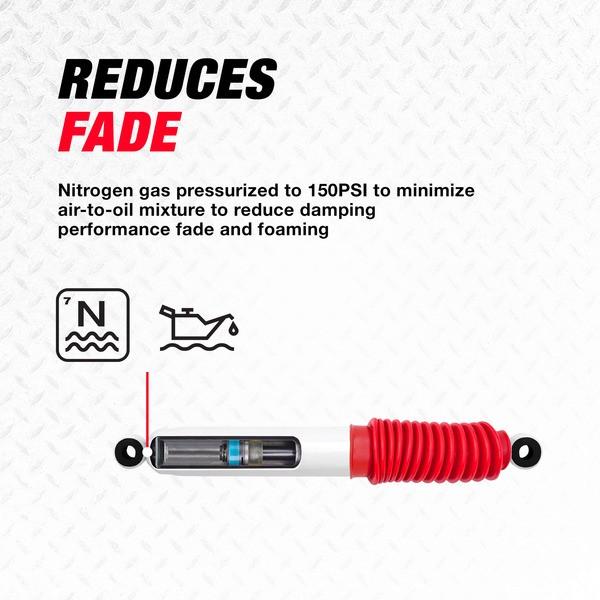

- Gas Pressurization Of Shock: Each Shock Absorbed Is Gas Pressurized To 150 PSI; Gas Pressurization Also Provides A Mild Boost Of Spring Rate To The Vehicle

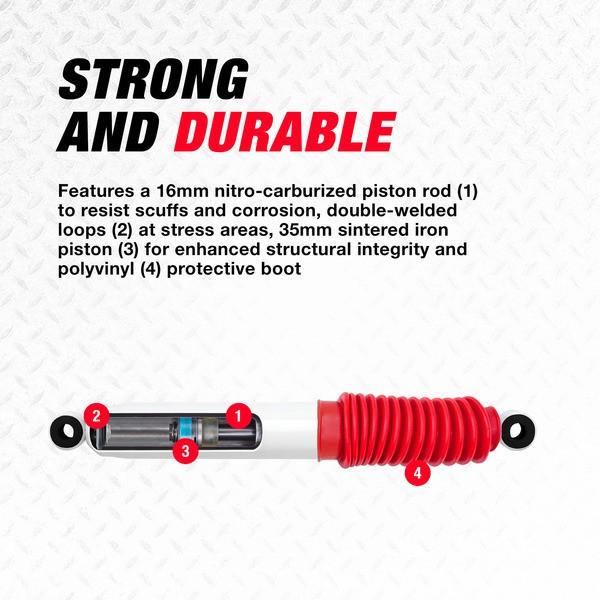

- 16 Millimeter Nitro Carburized Rod: From Increased Scuffing Resistance To Additional Protection Against Corrosion, The Process Enhances The Shock’s Overall Durability

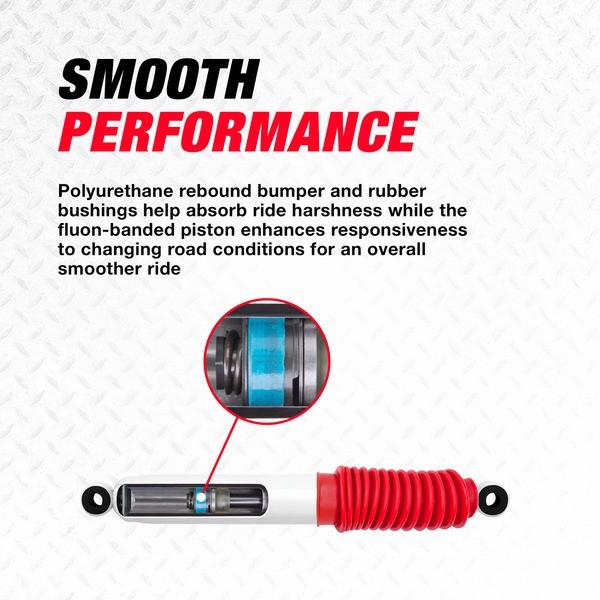

- Rebound Bumper: Polyurethane Bumper That Helps Control The Rebound Motion During Harsh Driving Conditions
- Black, Natural Rubber Bushings: Provides Additional Ride Harshness Absorption And Reduce Transmitted Road Noise And Suspension Vibration

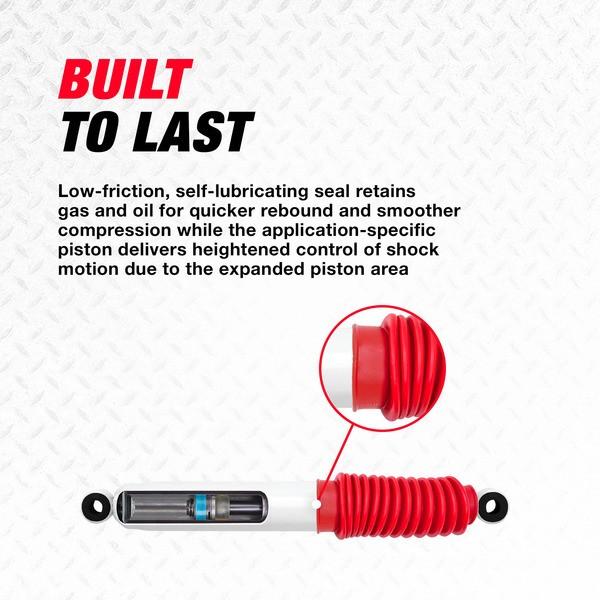

- Low Friction, Self Lubricating Seal: This Seals Provides An Extra Layer Of Defense Against Dirt And Debris
Specifications
- Manufacturer: Rancho
- Manufacturer Part Number: RS55065
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 25.21 Inch
- Compressed Length (IN): 17.52 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Twin Tube
- Body Color: White
- Rod Diameter (IN): 0.63 Inch
- Valving Type: Non Adjustable Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: Yes
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2018-2025 Jeep Wrangler JL
