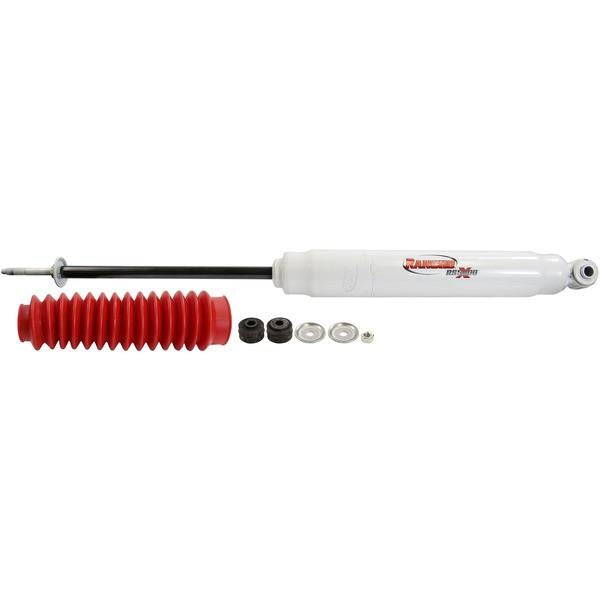

Advanced nitrogen gas charged shock for enhanced vehicle performance and control.
The Rancho RS5000X shock absorber features a patented rebound valving system that significantly improves vehicle handling both on and off-road. This innovative design incorporates a tuned compression control valve, allowing the shock to work in harmony with the vehicle's dynamics, ensuring stability and control during various driving conditions. The enlarged 2-1/4 inch twin tube body increases fluid capacity, which helps maintain optimal operating temperatures and enhances overall performance.
Gas pressurization minimizes the risk of air-to-oil mixture, reducing foaming and shock fade, while providing a slight boost in spring rate. The 16 millimeter nitro-carburized rod enhances durability and resistance to scuffing and corrosion, ensuring longevity in demanding environments. Additionally, the full-displaced 35 millimeter bore and sintered iron piston contribute to improved shock motion control, making the RS5000X a reliable choice for those seeking enhanced vehicle performance.
With features such as a rebound bumper to reduce wear and tear, and a glass-filled, Fluon banded piston for smoother travel, the Rancho RS5000X is engineered for responsiveness to changing road conditions. This shock absorber is designed for vehicle-specific applications, ensuring a precise fit and optimal performance.
Features
- Progressive Engagement Valving Will Further Engage To Maintain Control And Stability
- Tuned Compression Control Valve: The Precision-Tuned Shim Stacked Valving Allows The Motion Of The Shock To Work In Harmony With The Vehicle During On- And Off-road Driving
- Enlarged 2-1/4 Inch Twin Tube Body: A Larger Shock Body Allows For Increased Fluid Capacity To Operate Cooler And To Increase Vehicle Control And Performance At Varying Speeds And Terrains
- Gas Pressurization Of Shock: Has A Variety Of Advantages Including Minimizing Air-To-Oil Mixture That Can Cause Foaming And Shock Fade; Gas Pressurization Also Provides A Mild Boost Of Spring Rate To
- 16 Millimeter Nitro-Carburized Rod: From Increased Scuffing Resistance To Additional Protection Against Corrosion, The Process Enhances The Shock’s Overall Durability
- Full-Displaced 35 Millimeter Bore: Helps To Provide Heightened Control Of Shock Motion Due Largely To The Expanded Piston Area
- 1-3/8 Inch Diameter Sintered Iron Piston: Brings Increased Structural Conformity To Each Piston
- Rebound Bumper: Greatly Reduces Wear And Tear During On And Off Road Driving
- Glass-Filled, Fluon Banded Piston: Provides Smoother Piston Travel And Greater Responsiveness To Changing Road Conditions
Specifications
- Manufacturer: Rancho
- Manufacturer Part Number: RS55009
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 26.31 Inch
- Compressed Length (IN): 15.68 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Twin Tube
- Body Color: White
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: Yes
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 1975-1976 Ford F-100
- 1976-1979 Ford F-150
- 1970-1975 Ford F-250
