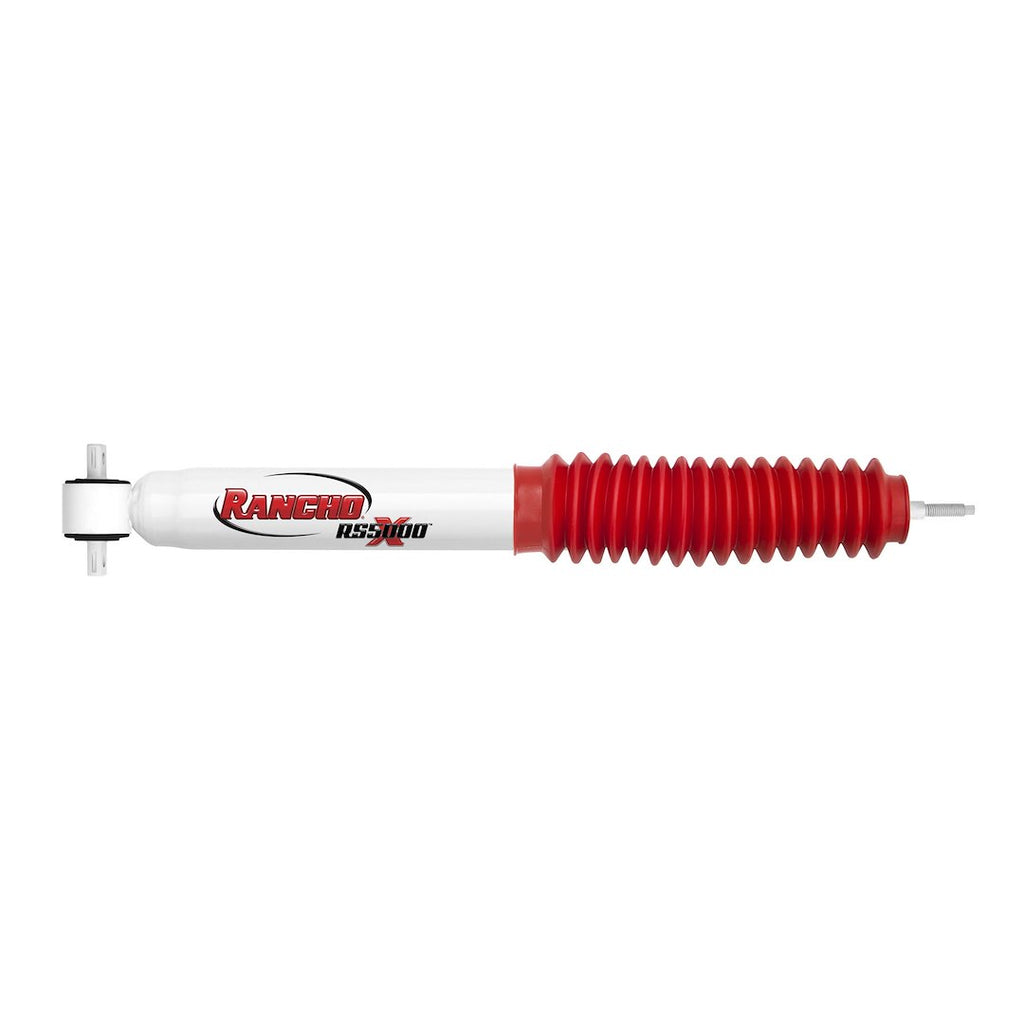

Rancho RS5000X Nitrogen Gas Charged Shock Absorber (MPN: RS55222)

Advanced shock technology for improved vehicle handling and performance.

The Rancho RS5000X Nitrogen Gas Charged Shock Absorber features a patented rebound valving system that enhances vehicle handling both on and off-road. This shock absorber is designed with a tuned compression control valve, allowing for optimal performance by harmonizing the shock's motion with the vehicle's dynamics. The enlarged 2-1/4 inch twin tube body increases fluid capacity, which helps maintain cooler operation and improves control across various terrains and speeds.

Gas pressurization minimizes air-to-oil mixture, reducing the risk of foaming and shock fade, while providing a slight boost in spring rate. The 16 millimeter nitro-carburized rod enhances durability by increasing scuffing resistance and protecting against corrosion. Additionally, the full-displaced 35 millimeter bore and 1-3/8 inch diameter sintered iron piston contribute to heightened control and structural integrity, ensuring reliable performance under diverse driving conditions.

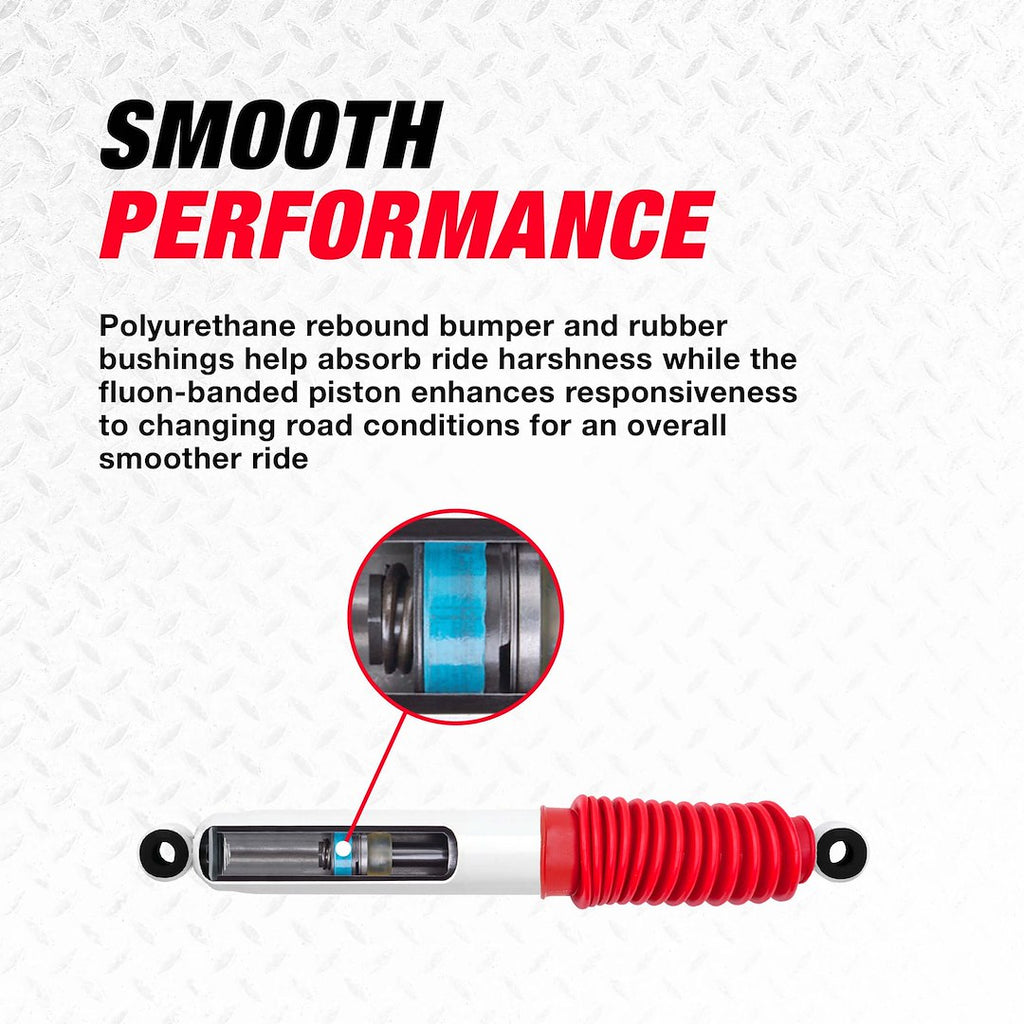

The RS5000X also includes a rebound bumper that reduces wear during both on and off-road driving, and a glass-filled, Fluon banded piston for smoother travel and responsiveness. This shock absorber is a single unit, designed for semi-universal applications, and comes equipped with necessary hardware and shock boots for installation.

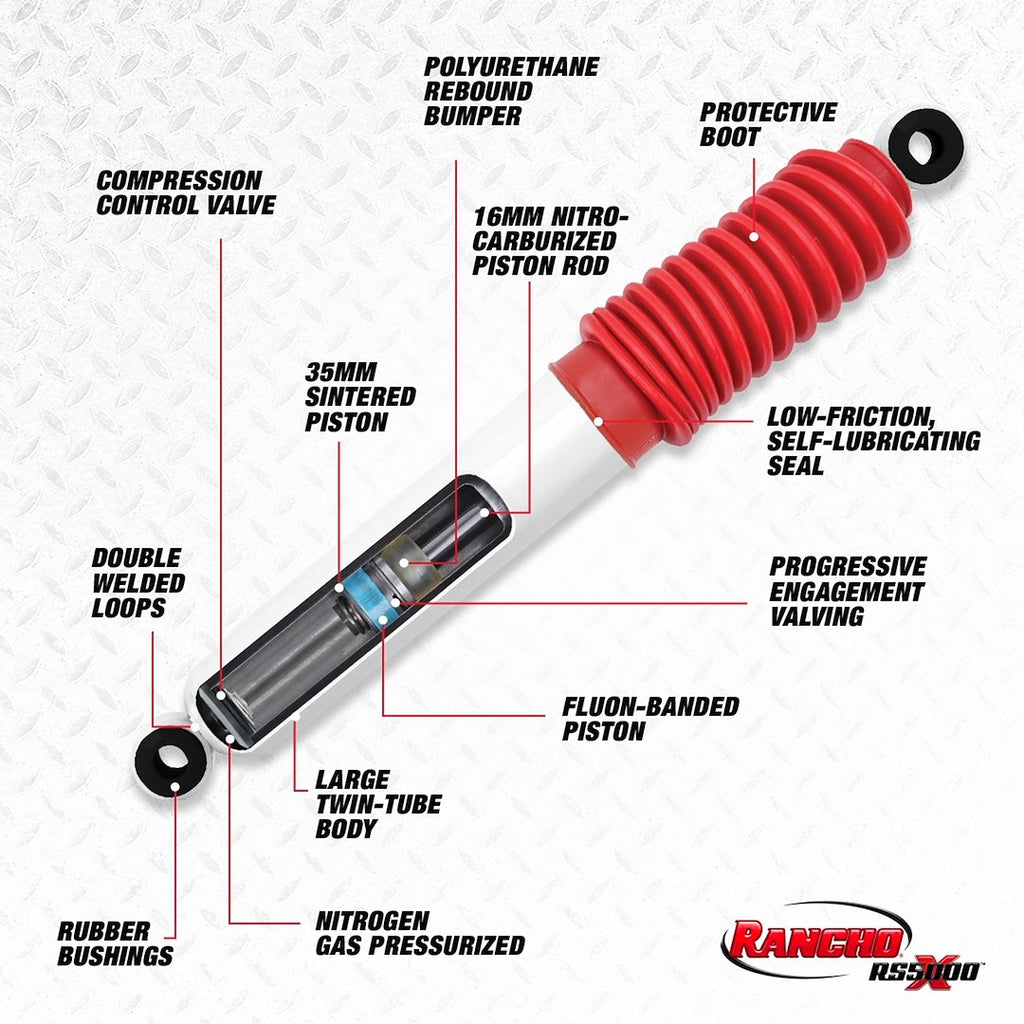

Features

• Progressive Engagement Valving Will Further Engage To Maintain Control And Stability
• Tuned Compression Control Valve: The Precision-Tuned Shim Stacked Valving Allows The Motion Of The Shock To Work In Harmony With The Vehicle During On- And Off-road Driving

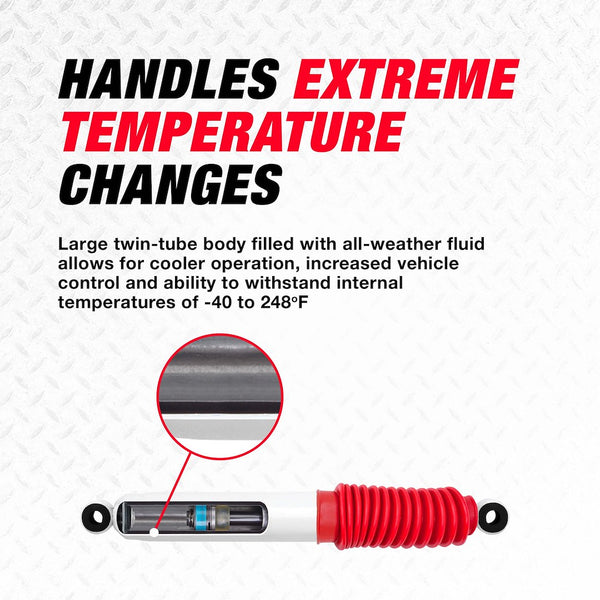

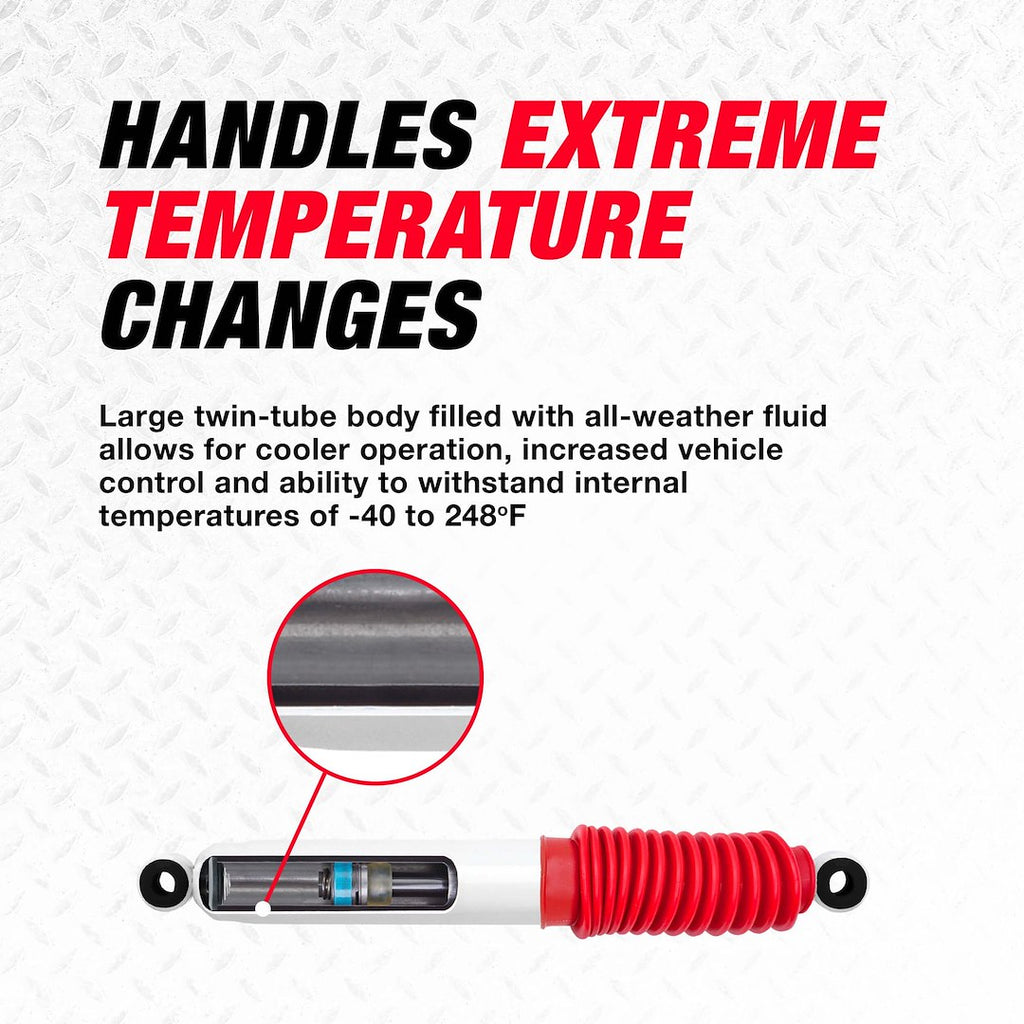

• Enlarged 2-1/4 Inch Twin Tube Body: A Larger Shock Body Allows For Increased Fluid Capacity To Operate Cooler And To Increase Vehicle Control And Performance At Varying Speeds And Terrains
• Gas Pressurization Of Shock: Has A Variety Of Advantages Including Minimizing Air-To-Oil Mixture That Can Cause Foaming And Shock Fade; Gas Pressurization Also Provides A Mild Boost Of Spring Rate To
• 16 Millimeter Nitro-Carburized Rod: From Increased Scuffing Resistance To Additional Protection Against Corrosion, The Process Enhances The Shock’s Overall Durability
• Full-Displaced 35 Millimeter Bore: Helps To Provide Heightened Control Of Shock Motion Due Largely To The Expanded Piston Area
• 1-3/8 Inch Diameter Sintered Iron Piston: Brings Increased Structural Conformity To Each Piston
• Rebound Bumper: Greatly Reduces Wear And Tear During On And Off Road Driving
• Glass-Filled, Fluon Banded Piston: Provides Smoother Piston Travel And Greater Responsiveness To Changing Road Conditions

Specifications

• Manufacturer: Rancho
• Manufacturer Part Number: RS55222
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 13.81 Inch
• Compressed Length (IN): 9.063 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Cross Pin
• Adjustable Valving: No
• Quantity: Single
• Universality: Semi-Universal
• Internal Design: Twin Tube
• Body Color: White
• Rod Diameter (IN): 5/8 Inch
• Valving Type: Application Specific Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: Yes
• Includes Boot: Yes
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1995-2005 Chevrolet Blazer
• 1982-2003 Chevrolet S10
• 1983-1994 Chevrolet S10 Blazer
• 2002-2005 GMC Envoy
• 2002-2005 GMC Envoy XL
• 2004-2005 GMC Envoy XUV
• 1983-1990 GMC S15
• 1991-2003 GMC Sonoma
• 1998-2000 Isuzu Hombre
