Enhance ride quality and handling for trucks and SUVs with advanced technology.

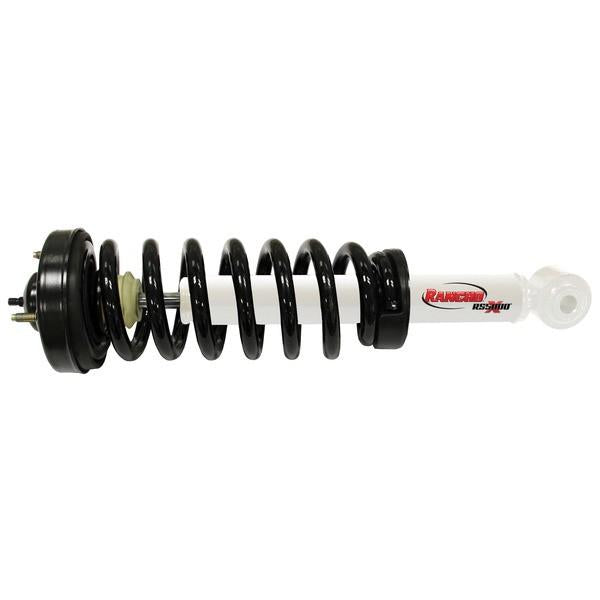

The Rancho RS5000X Loaded Strut Assembly is designed for late model trucks and SUVs, providing a comprehensive solution that restores factory ride height while enhancing both on-road and off-road handling. Utilizing Rancho's exclusive Cross Tuned technology, this strut assembly features a rebound valving system and advanced compression phase that significantly improves performance across various terrains. Each application-specific coil spring is meticulously calibrated and ride tested to ensure optimal fit and functionality, contributing to a smoother driving experience.
Constructed with durability in mind, the RS5000X includes a nitro-carburized piston rod that resists scuffs and corrosion, along with double-welded loops at stress points for added strength. The progressive engagement valving is custom-tuned for each vehicle, effectively reducing initial impacts at low speeds and minimizing rough rides. Additionally, the nitrogen gas pressurization at 60 PSI helps to prevent air-to-oil mixture, thereby reducing damping performance fade and foaming.
Installation is straightforward, as the complete assembly comes with an upper mounting plate and all necessary components, eliminating the need for a spring compressor. This single unit solution is engineered to meet strict durability requirements, making it a reliable choice for those looking to enhance their vehicle's suspension system.
Features

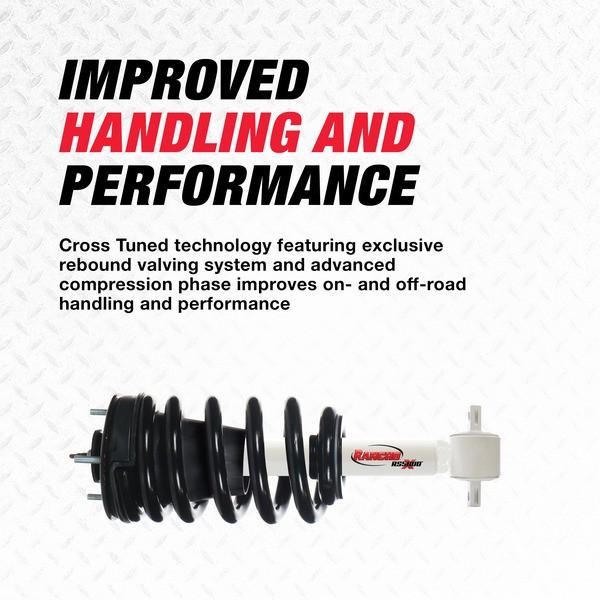

- Cross Tuned Technology Featuring Exclusive Rebound Valving System And Advanced Compression Phase Improves On- And Off-Road Handling And Performance
- Precisely Calibrated, Each Application-Specific Coil Spring Is Fit Checked, Ride Tested And Engineered To Restore Factory Ride Height
- Exclusive Progressive Engagement Valving Is Custom-Tuned For Each Vehicle To Help Reduce Initial Impacts At Low Speeds And Minimizes A Rough Ride

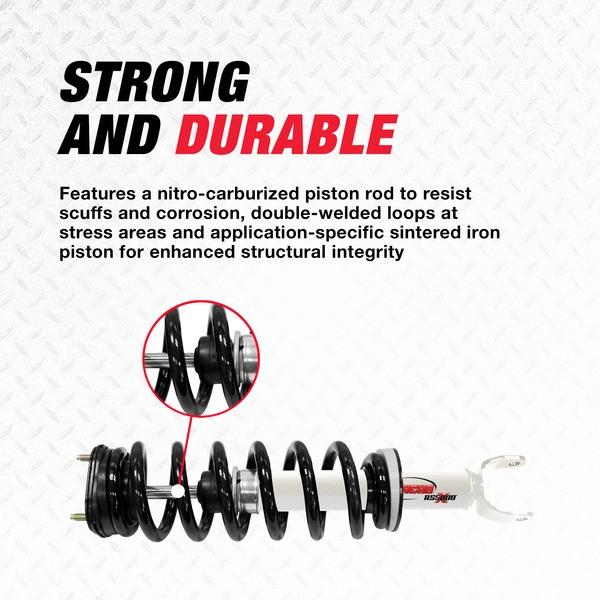

- Features A Nitro-Carburized Piston Rod To Resist Scuffs And Corrosion, Double-Welded Loops At Stress Areas And Application-Specific Sintered Iron Piston For Enhanced Structural Integrity

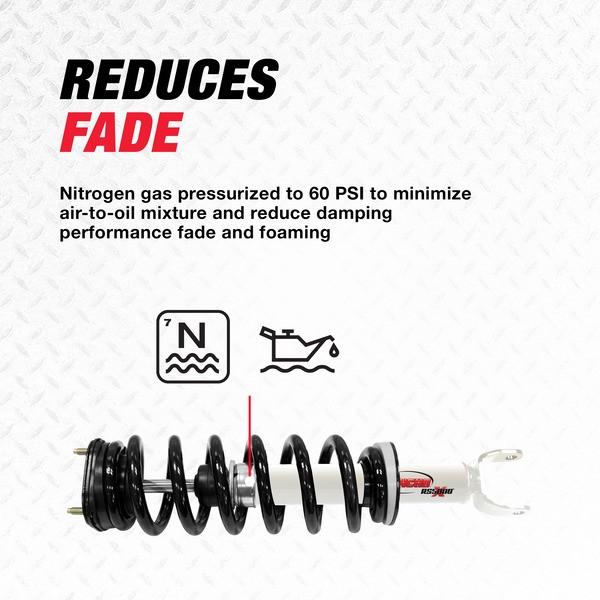

- Nitrogen Gas Pressurized To 60 PSI To Minimize Air-To-Oil Mixture And Reduce Damping Performance Fade And Foaming

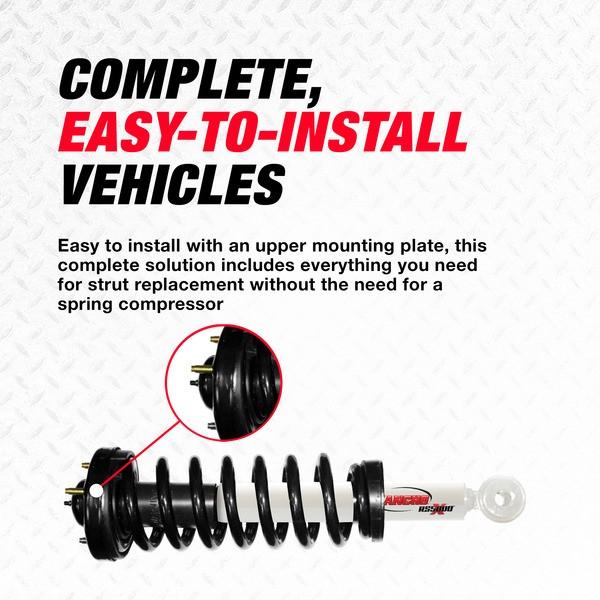

- Easy To Install With An Upper Mounting Plate, This Complete Solution Features Everything You Need For Strut Replacement Without The Need For A Spring Compressor
Specifications
- Manufacturer: Rancho
- Manufacturer Part Number: RS551804
- Type: Nitrogen Gas Charged
- With Coil Spring: Yes
- Extended Length (IN): 21.64 Inch
- Compressed Length (IN): 17.17 Inch
- Upper Mounting Style: Strut
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Twin Tube
- Body Color: White
- Valving Type: Non Adjustable Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2009-2013 Ford F-150
