Precision engineered for optimal on-road and off-road performance.
The Rancho RS7000MT monotube struts are designed for enhanced handling in both on-road and off-road conditions. These struts utilize a nitrogen gas charge to maintain consistent pressure against the hydraulic oil, effectively reducing aeration and shock fade. The integrated dirt wiper sealing system prevents moisture and debris from contaminating the internal components, ensuring longevity and reliability in extreme environments.
Constructed with a 14 millimeter hardened chrome piston rod, the RS7000MT struts resist scuffs and corrosion, while the double-welded loops and hot form reserve tube provide additional strength at stress points. The large 2 inch monotube body is filled with all-weather fluid, allowing for cooler operation and improved vehicle control across a wide temperature range from -40 to 248 degrees Fahrenheit.
The internal rebound bumper and shouldered rubber bushings work together to minimize noise and vibration, enhancing ride comfort. With application-specific mounting, these struts are designed for easy installation without the need for additional hardware, making them a practical choice for vehicle-specific applications.
Features

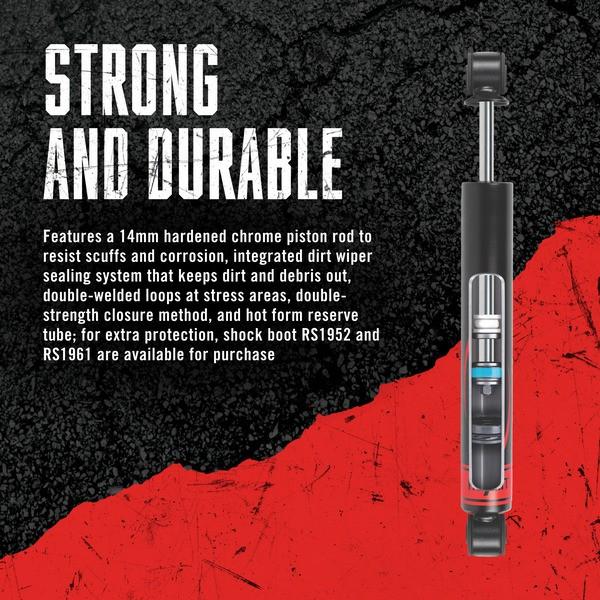

- Features A 14 Millimeter Hardened Chrome Piston Rod To Resist Scuffs And Corrosion, Double-Welded Loops At Stress Areas, Double-Strength Closure Method, And Hot Form Reserve Tube
- Full-Floating Dividing Piston And High-Pressure Nitrogen Gas Maintains Constant Pressure Against The Hydraulic Oil, Reducing Aeration And Shock Fade
- Sealing System With Integrated Dirt Wiper Helps Keep Moisture, Dirt And Debris From Being Ingested Into The Shock And Contaminating The Oil And Destroying The Internal Seal

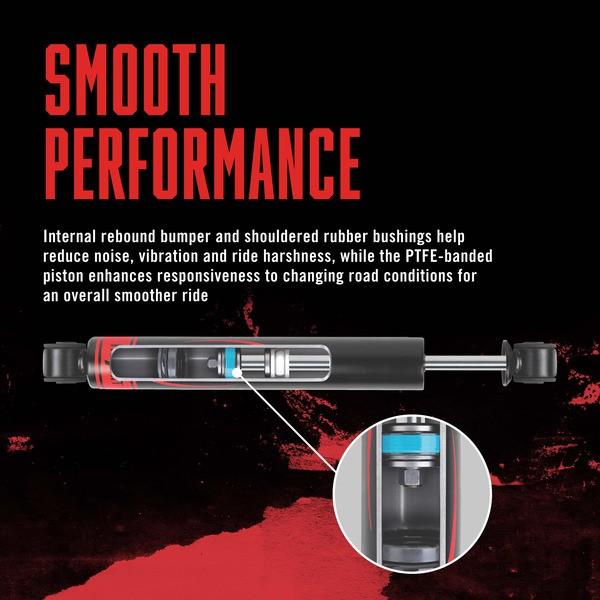

- Internal Rebound Bumper And Shouldered Rubber Bushings Help Reduce Noise, Vibration And Ride Harshness

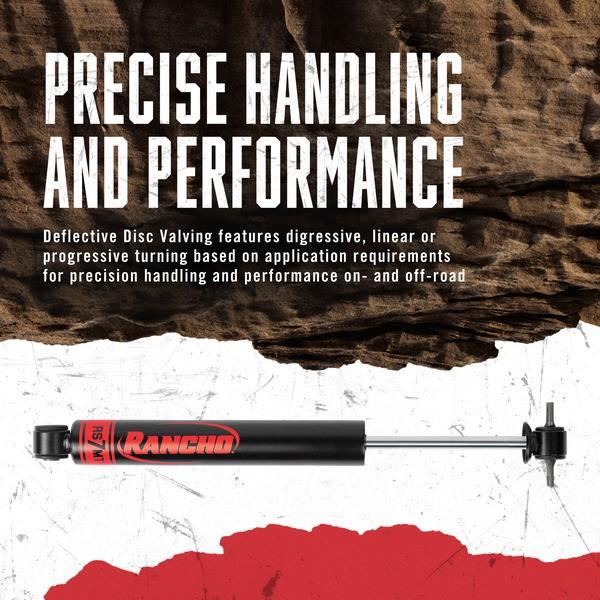

- Deflective Disc Valving Features Digressive, Linear Or Progressive Turning Based On Application Requirements For Precision Handling And Performance On- And Off-Road
- Black Satin Finish With Distinctive Rancho Red Logo For An Eye-Catching Look That Stands Out

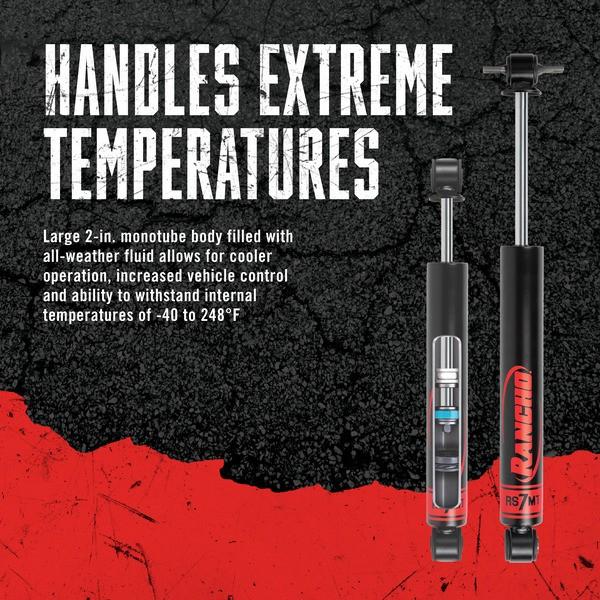

- Large 2 Inch Monotube Body Filled With All-Weather Fluid Allows For Cooler Operation, Increased Vehicle Control, And Ability To Withstand Internal Temperatures Of -40 To 248 Degree Fahrenheit
- Designed To Fit Right Out Of The Box, Application-Specific Mounting Installs Easily With No Need For Installing Sleeves Or Extra Hardware
Specifications
- Manufacturer: Rancho
- Manufacturer Part Number: RS77836
- Type: Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 21.54 Inch
- Compressed Length (IN): 17.17 Inch
- Upper Mounting Style: Cross Pin
- Lower Mounting Style: Stud
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Black
- Rod Diameter (IN): 1.81 Inch
- Valving Type: Non Adjustable Valving
- Rod Material: Steel
- Body Material: Steel
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2014-2020 Ford F-150
